Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

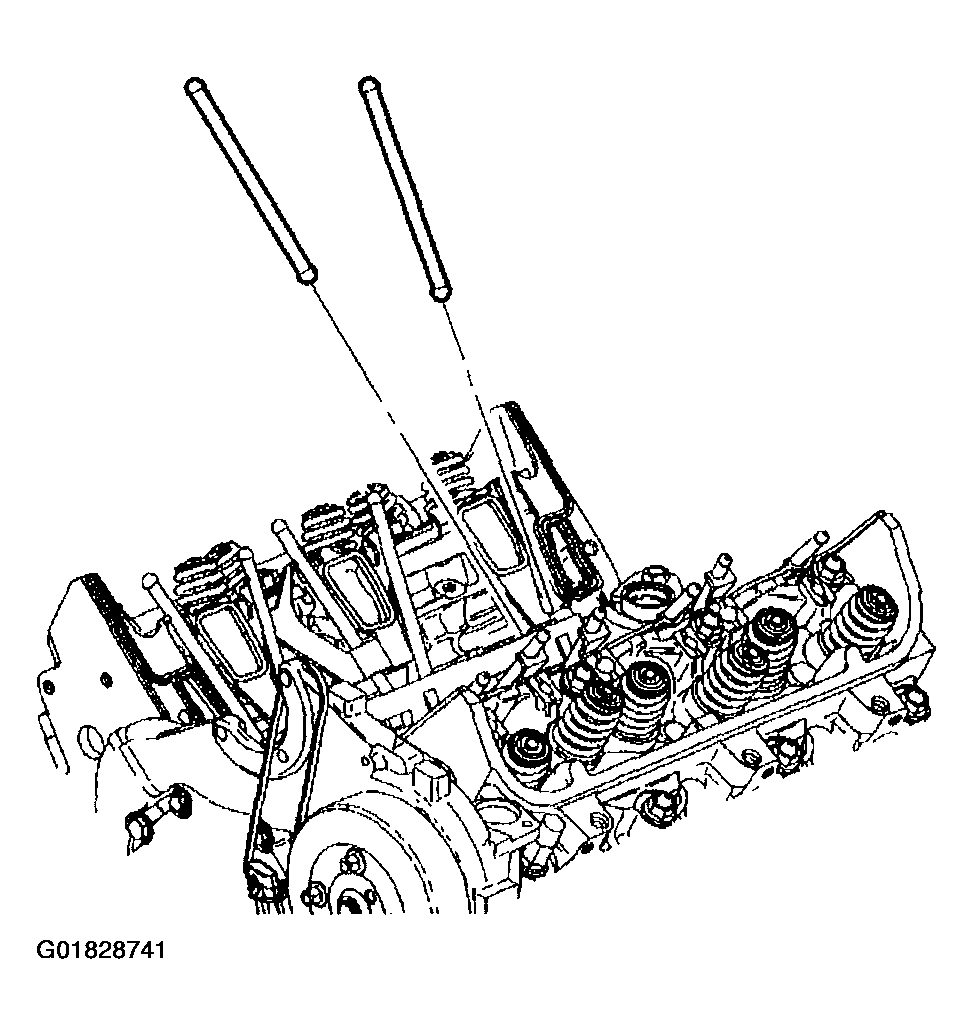

    Fig 1: Intake Push Rods
    G01828741Courtesy of GENERAL MOTORS CORP.
  1. Coat the ends of the push rods using prelube GM P/N 1052365 or the equivalent.

    Important:  The intake valve push rods measure 144 mm (5.75 in) in length, (yellow).

  2. Install the push rods in their original location.

    The exhaust valve push rods measure 152.5 mm (6.0 in) in length, (green).

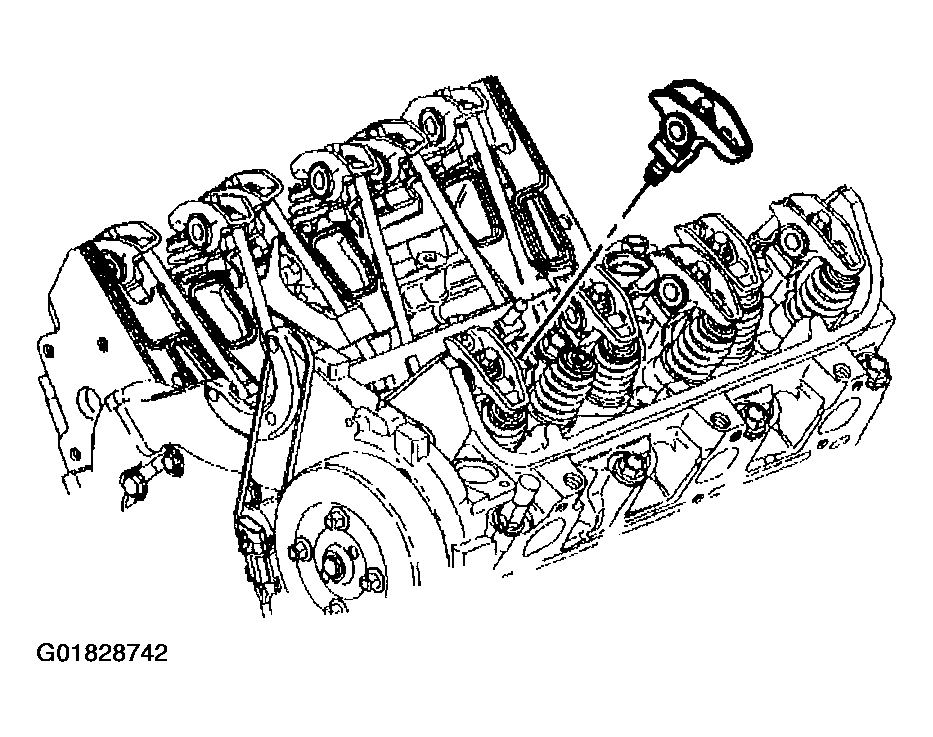

    3. Fig 2: Valve Rocker Arm
    G01828742Courtesy of GENERAL MOTORS CORP.
  3. Coat the rocker arm friction surfaces using prelube GM P/N 1052365 or the equivalent.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve rocker arm bolts.

    Tighten

    Use the J 36660-A  to tighten the bolts to 19 N.m (14 lb ft) plus 30 degrees.

  5. Install the valve rocker arm cover(s). Refer to VALVE ROCKER ARM COVER REPLACEMENT - Left  and/or VALVE ROCKER ARM COVER REPLACEMENT - Right .
