Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the generator. Refer to GENERATOR .
  3. Remove the generator bracket. Refer to GENERATOR .
  4. Disconnect the engine right side spark plug wires. Refer to SPARK PLUGS .
  5. Disconnect the vacuum hoses from the evaporative emissions (EVAP) canister purge solenoid valve.

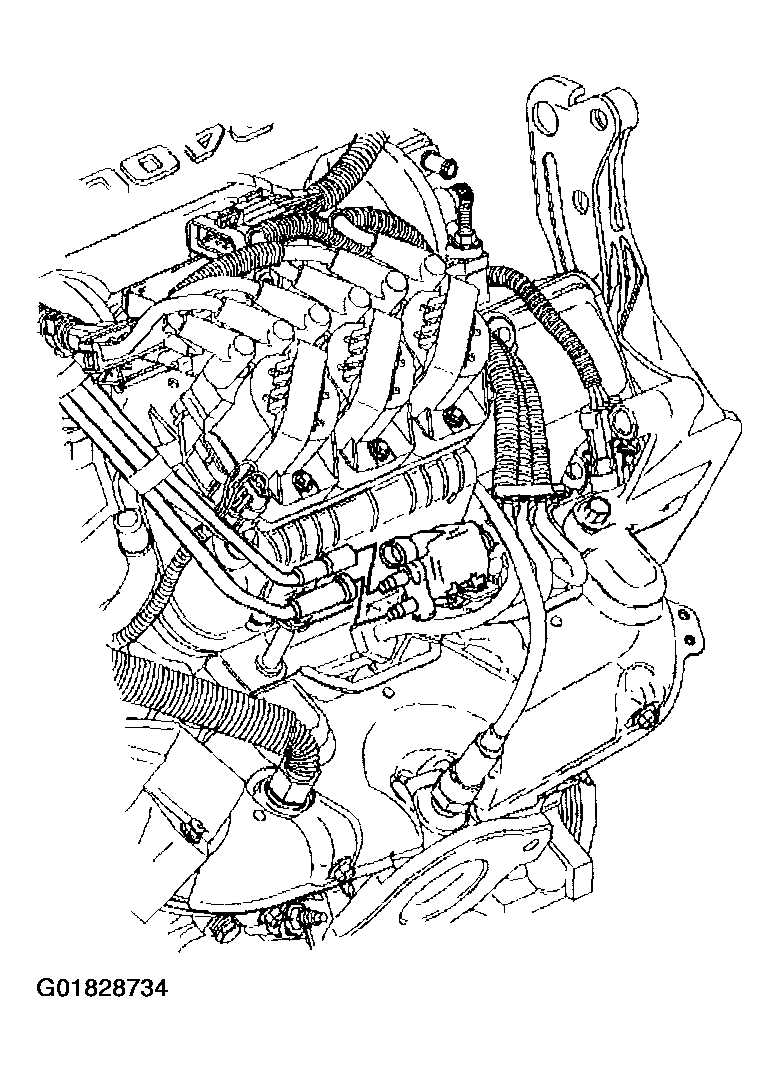

    Fig 1: Vacuum Hoses To EVAP Canister Purge Solenoid Valve
    G01828734Courtesy of GENERAL MOTORS CORP.
  6. Remove the EVAP canister purge solenoid valve. Refer to EVAP CANISTER VENT VALVE .

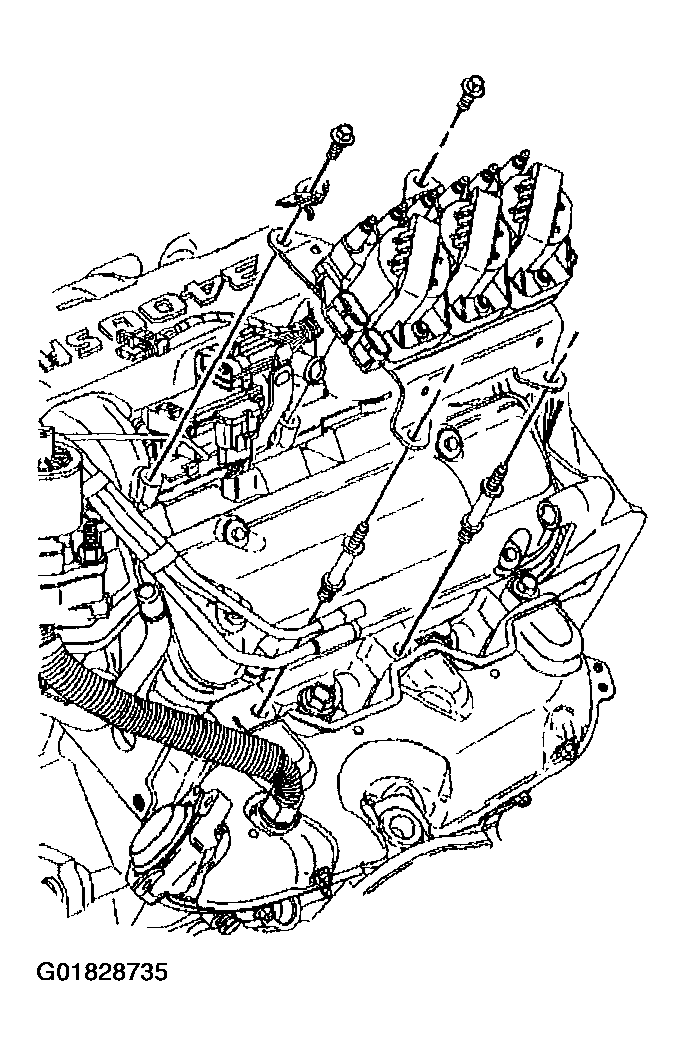

    7. Fig 2: Ignition Module Bracket With Coils
    G01828735Courtesy of GENERAL MOTORS CORP.
  7. Remove the ignition module bracket with the coils.
  8. Remove the vacuum hose from the grommet in the engine right side valve rocker arm cover.
  9. Remove the valve rocker arm cover bolts.

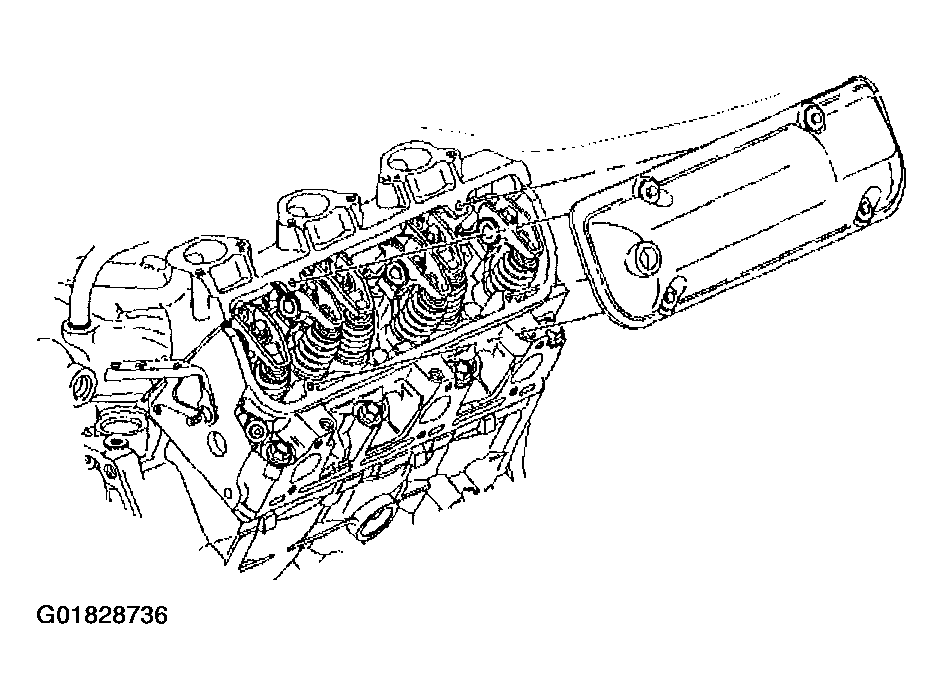

    10. Fig 3: Right Valve Rocker Arm Cover
    G01828736Courtesy of GENERAL MOTORS CORP.
  10. Remove the valve rocker arm cover and gasket.
  11. Clean the valve rocker arm cover. Refer to VALVE ROCKER ARM COVER CLEANING AND INSPECTION .
  12. Clean the valve rocker arm cover gasket sealing surfaces on the cylinder head and the lower intake manifold.
