Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N 12345739 or the equivalent to the notches where the cylinder head and intake manifold meet.

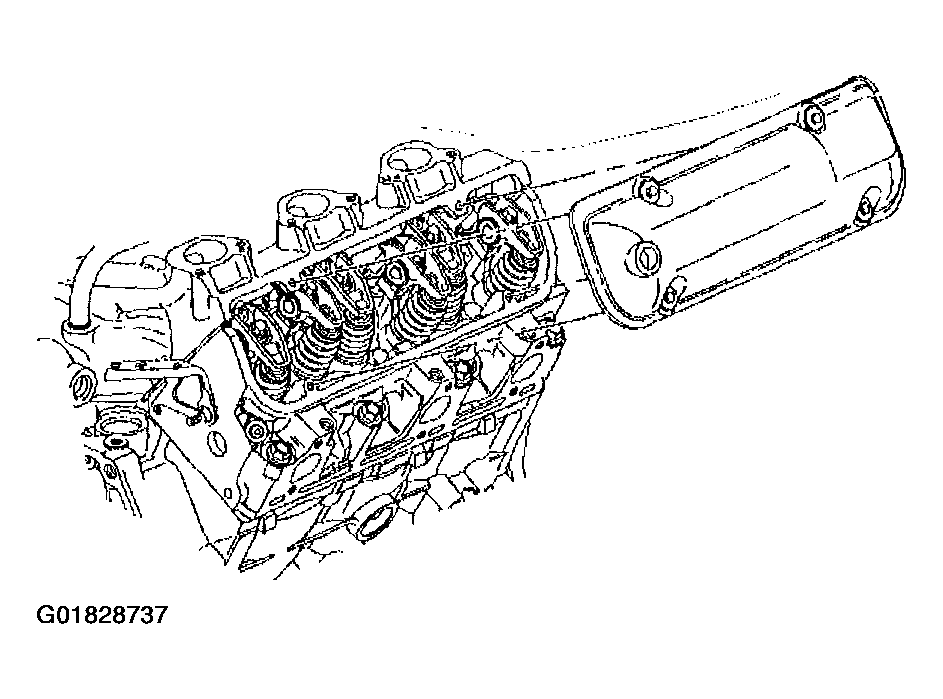

    3. Fig 1: Right Valve Rocker Arm Cover
    G01828737Courtesy of GENERAL MOTORS CORP.
  3. Install valve rocker arm cover.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the vacuum hose to the grommet in the engine right side valve rocker arm cover.

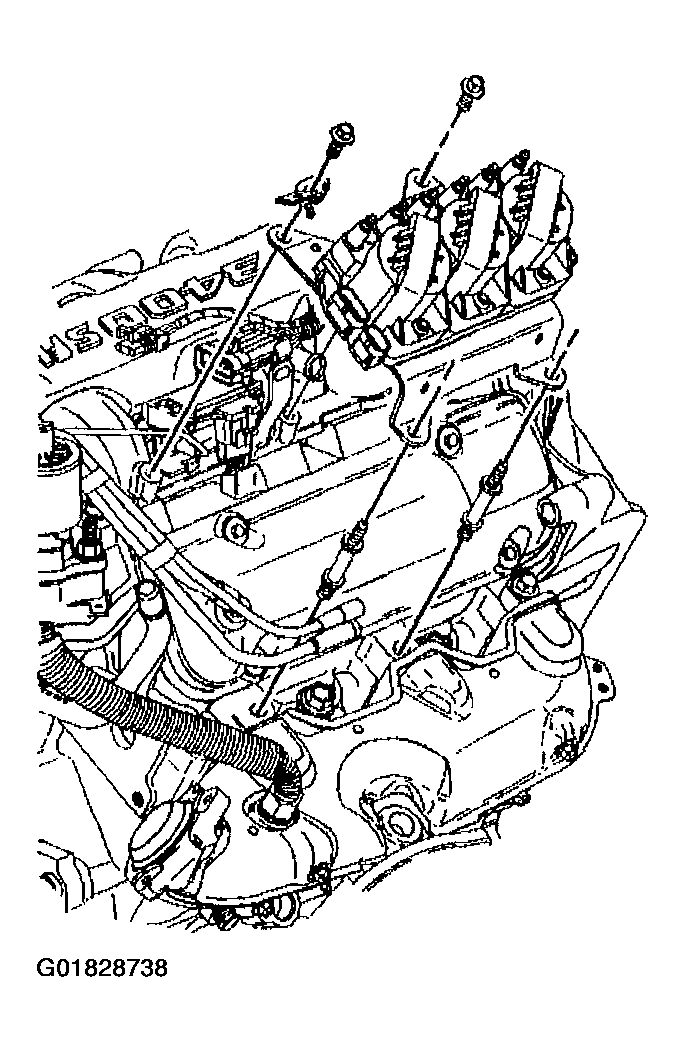

    6. Fig 2: Ignition Module Bracket With Coils
    G01828738Courtesy of GENERAL MOTORS CORP.
  6. Install the ignition coil bracket with coils.
  7. Install the EVAP canister purge solenoid valve. Refer to EVAP CANISTER VENT VALVE .

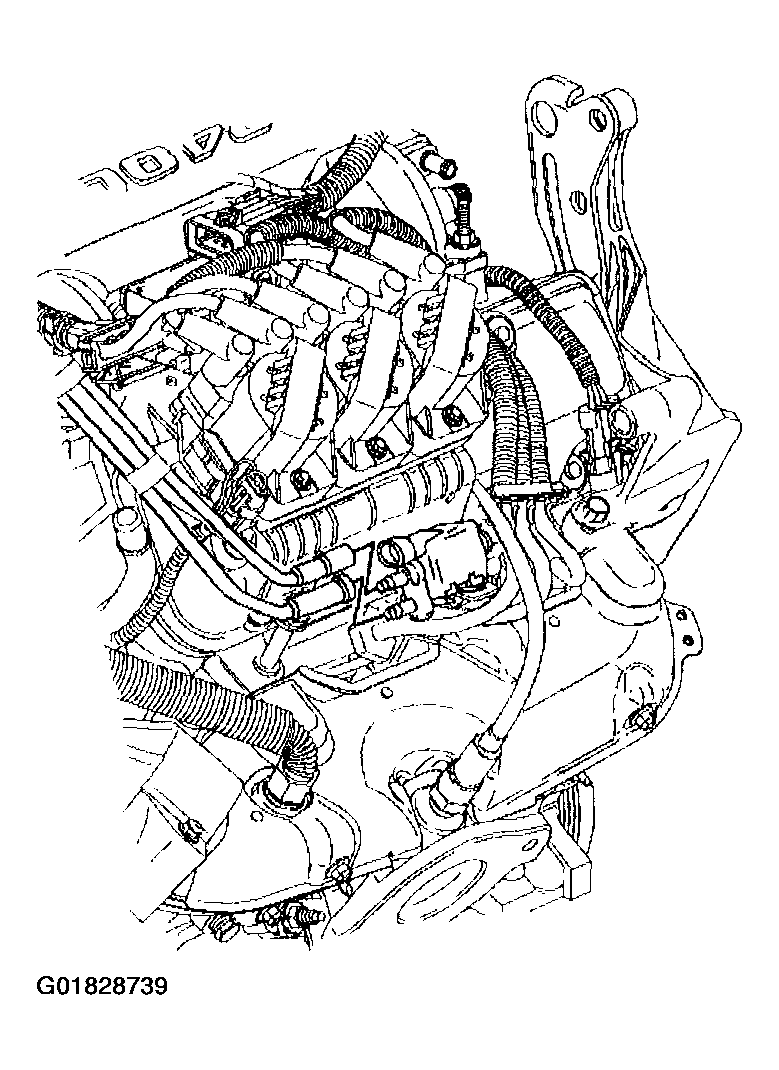

    8. Fig 3: Vacuum Hoses To EVAP Canister Purge Solenoid Valve
    G01828739Courtesy of GENERAL MOTORS CORP.
  8. Connect the vacuum hoses from the EVAP canister purge solenoid valve.
  9. Connect the engine right side spark plug wires. Refer to SPARK PLUGS .
  10. Install the generator bracket. Refer to GENERATOR .
  11. Install the generator. Refer to GENERATOR .
  12. Install the drive belt. Refer to Drive Belt Replacement .
