Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the engine left side spark plug wires. Refer to SPARK PLUGS .
  2. Remove the right engine mount strut at the engine. Refer to ENGINE MOUNT STRUT REPLACEMENT - Right .

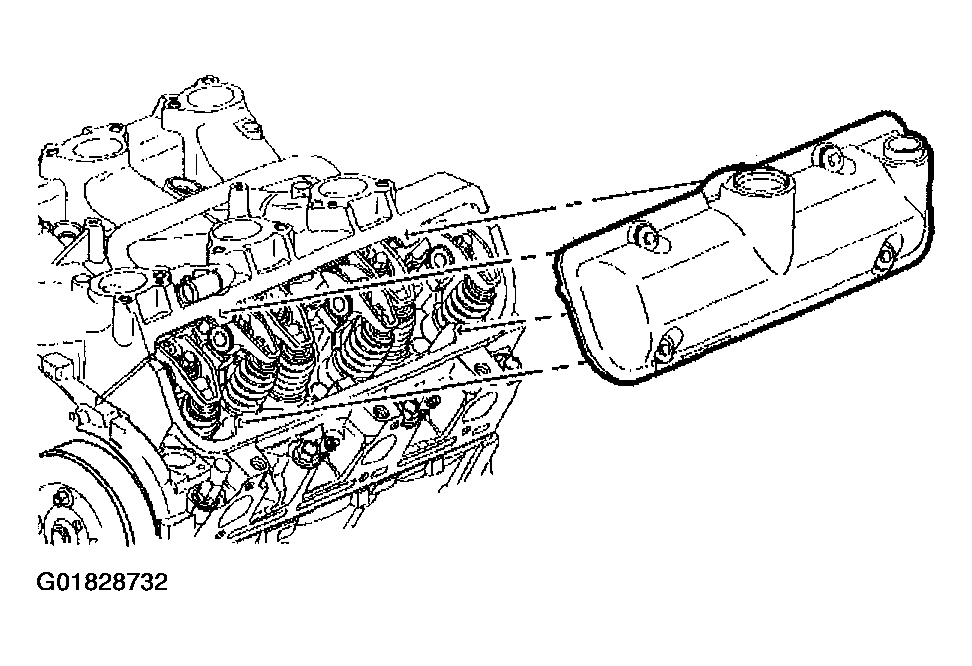

    3. Fig 1: Left Valve Rocker Arm Cover
    G01828732Courtesy of GENERAL MOTORS CORP.
  3. Remove the positive crankcase ventilation (PCV) valve from the engine left side valve rocker arm cover.
  4. Remove the valve rocker arm cover bolts.
  5. Remove the valve rocker arm cover and gasket.
  6. Clean the valve rocker arm cover gasket sealing surfaces on the cylinder head and the lower intake manifold.
