Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

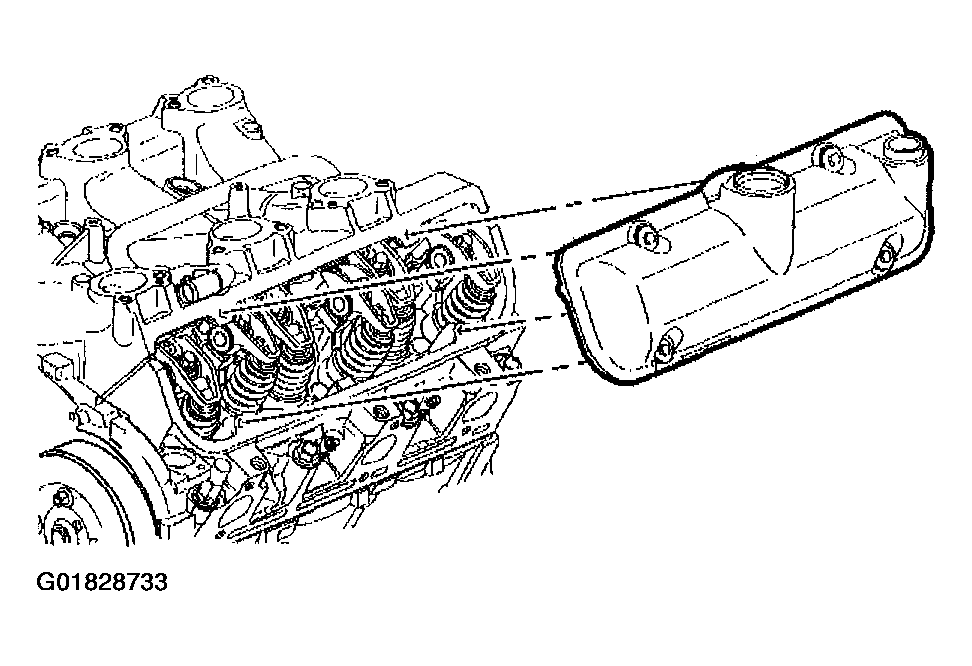

    Fig 1: Left Valve Rocker Arm Cover
    G01828733Courtesy of GENERAL MOTORS CORP.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N 12345739 or the equivalent to the notches where the cylinder head and intake manifold meet.
  3. Install the valve rocker arm cover.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the PCV valve to the engine left side valve rocker arm cover.
  6. Install the right engine mount strut at the engine. Refer to ENGINE MOUNT STRUT REPLACEMENT - Right .
  7. Connect the engine left side spark plug wires. Refer to SPARK PLUGS .
