Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the valve lifters using prelube GM P/N 1052367 Canadian P/N 992869 or the equivalent.
  2. Install the valve lifters in their original locations.
  3. Install the lifter guide.
    NOTE: Refer to FASTENER NOTICE .
  4. Apply threadlock GM P/N 12345382 Canadian P/N 10953489 or the equivalent to the lifter guide bolts and install the bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  6. Install the lower intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - Lower .

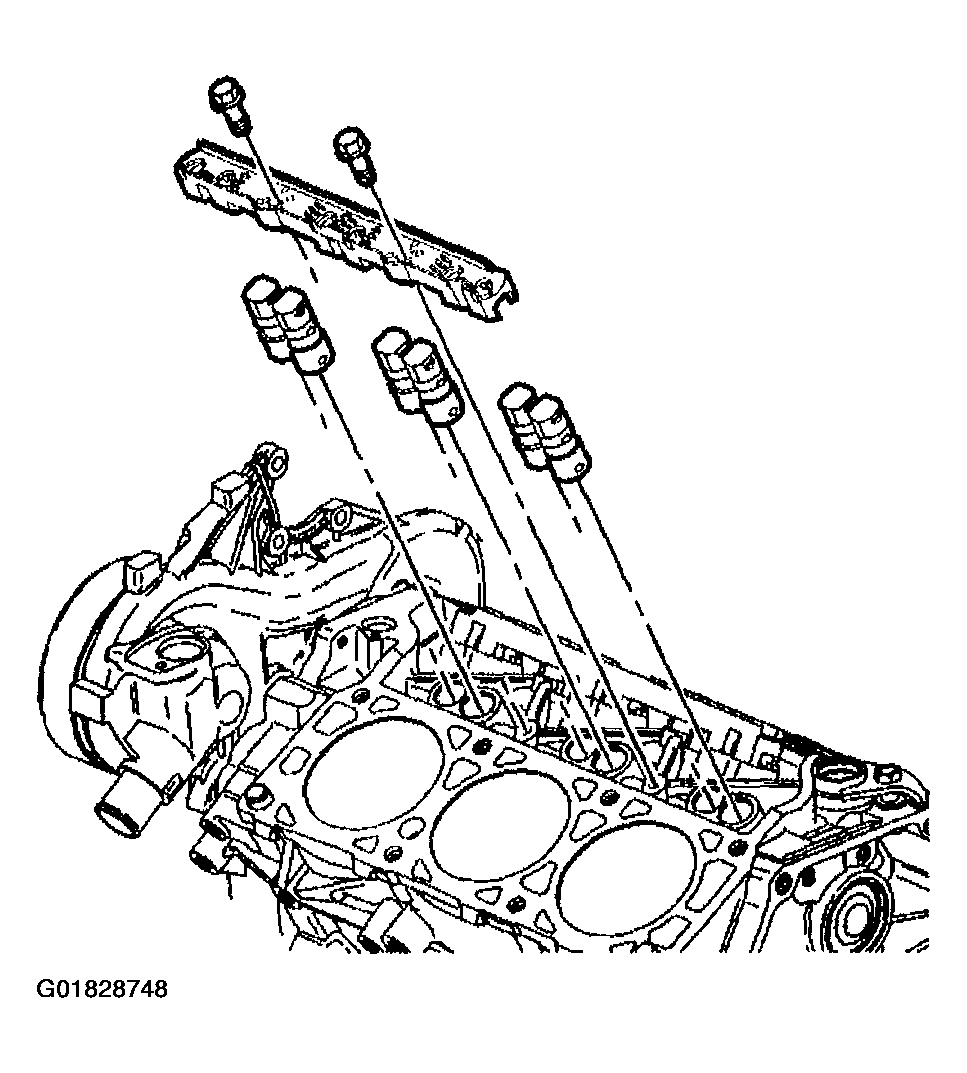

    Fig 1: Valve Lifters
    G01828748Courtesy of GENERAL MOTORS CORP.
  7. Install the engine left side valve rocker arm cover. Refer to VALVE ROCKER ARM COVER REPLACEMENT - Left  or VALVE ROCKER ARM COVER REPLACEMENT - Right .
  8. Inspect for leaks.
