Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to Oil Pan Replacement .
  2. Remove the oil pump bolt.
  3. Remove the oil pump and oil pump drive shaft.

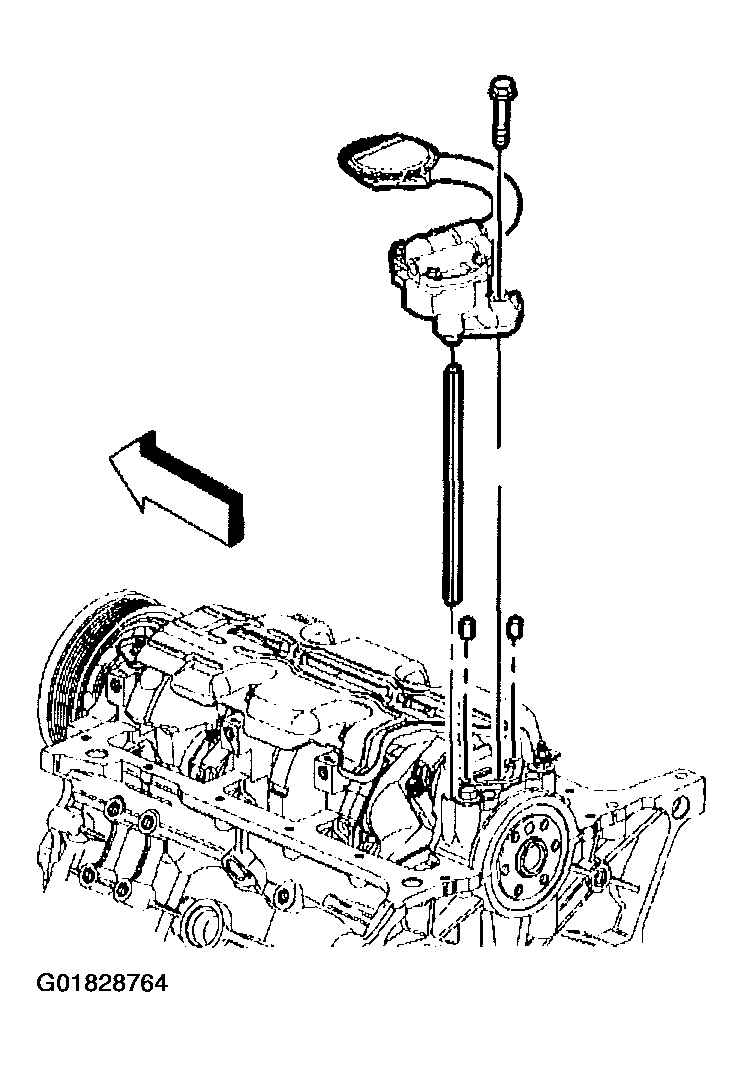

    Fig 1: Oil Pump & Oil Pump Drive Shaft
    G01828764Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft oil deflector nuts.

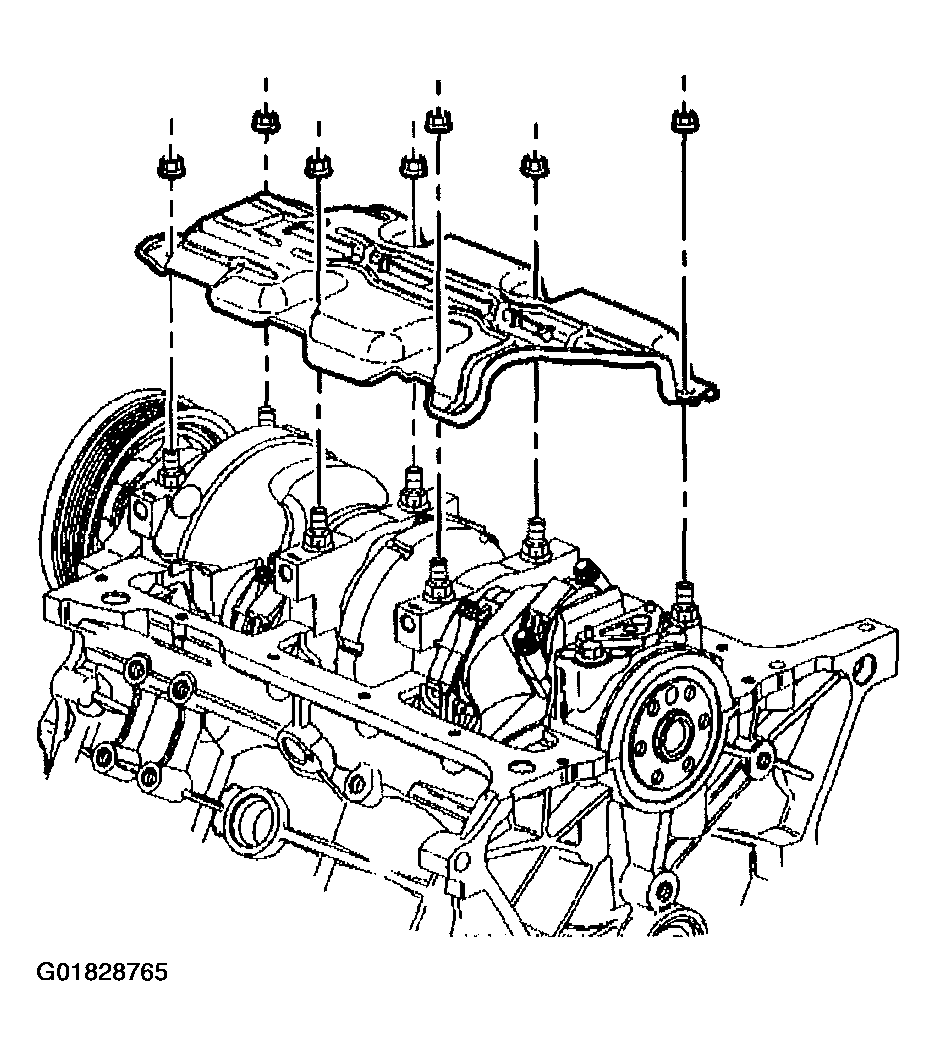

    5. Fig 2: Crankshaft Oil Deflector
    G01828765Courtesy of GENERAL MOTORS CORP.
  5. Remove the crankshaft oil deflector.
  6. Inspect the oil pump driveshaft at both ends for rounding of the corners.
