Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Rotate the oil pump driveshaft as necessary in order to obtain the engagement with the oil pump drive.

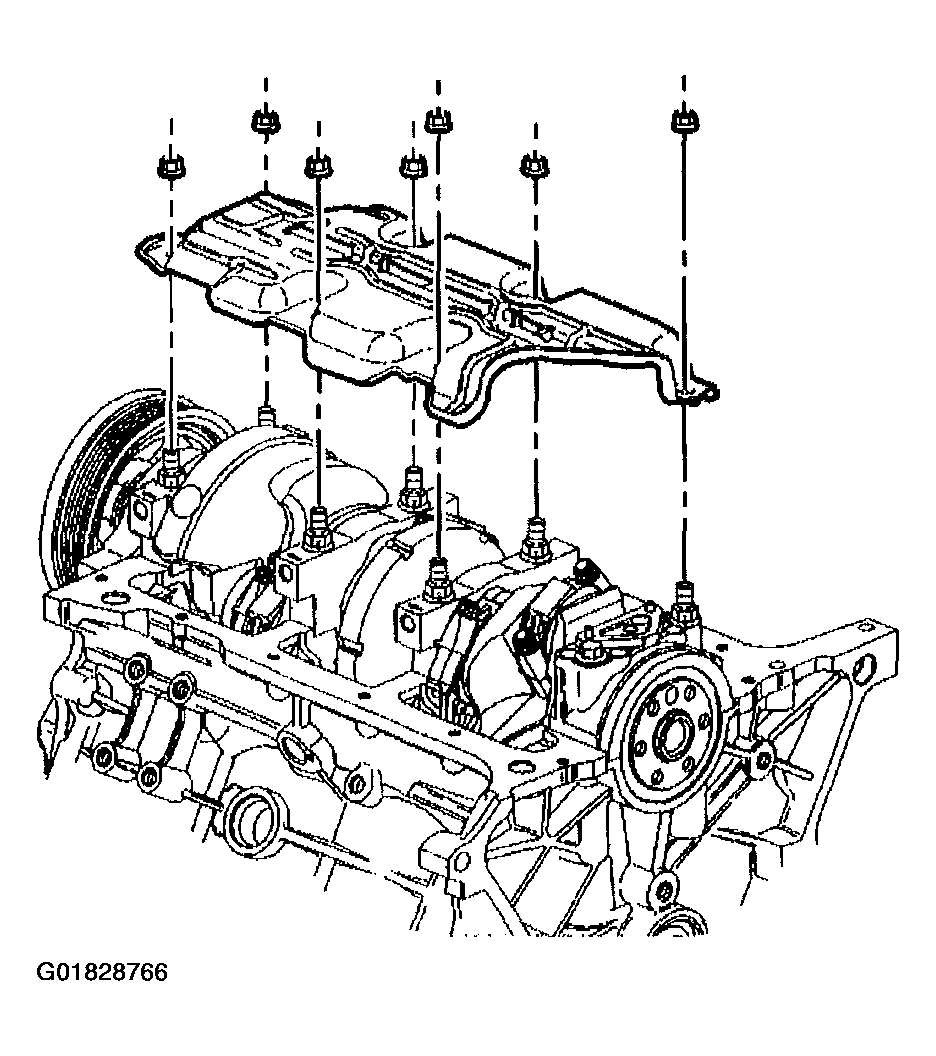

    Fig 1: Crankshaft Oil Deflector
    G01828766Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft oil deflector.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the crankshaft oil deflector nuts.

    Tighten

    Tighten the nuts to 25 N.m (18 lb ft).

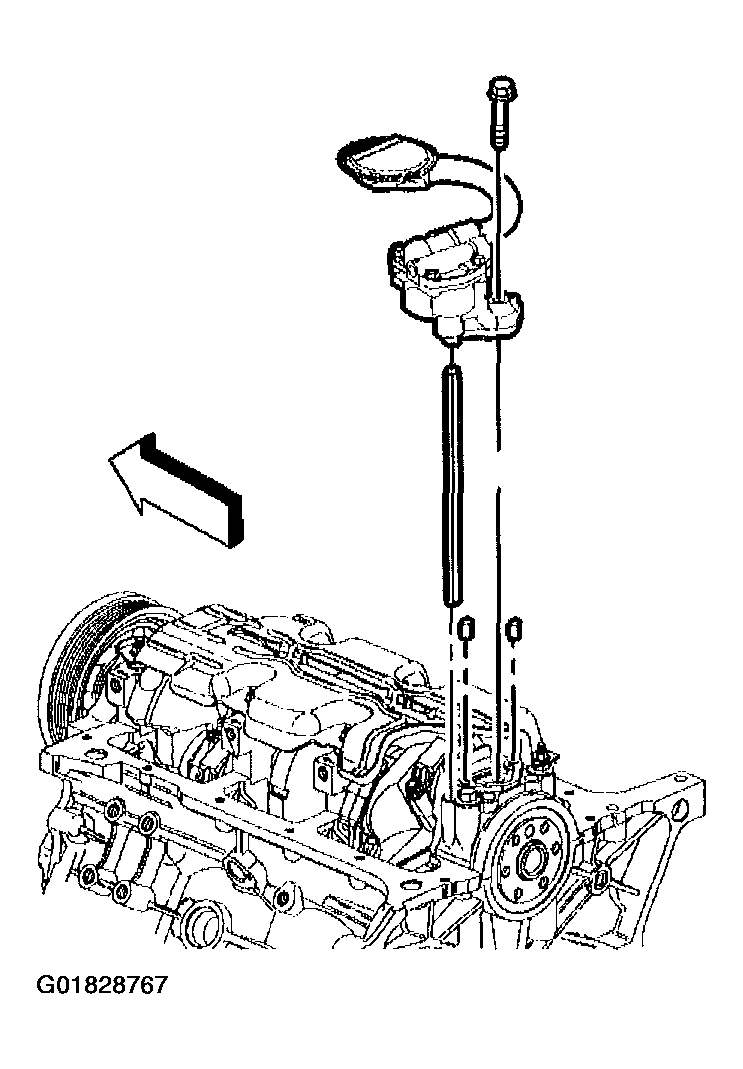

    3. Fig 2: Oil Pump & Oil Pump Drive Shaft
    G01828767Courtesy of GENERAL MOTORS CORP.
  3. Install the oil pump and oil pump drive shaft.
  4. Install the oil pump bolt.

    Tighten

    Tighten the bolt to 41 N.m (30 lb ft).

  5. Install the oil pan. Refer to Oil Pan Replacement .
