Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - Upper .
  2. Disconnect the fuel feed and return pipe from the fuel injector rail. Refer to FUEL HOSES/PIPES - ENGINE COMPARTMENT .
  3. Remove the oil pump drive clamp bolt.
  4. Remove the oil pump drive clamp.
  5. Remove the oil pump drive.

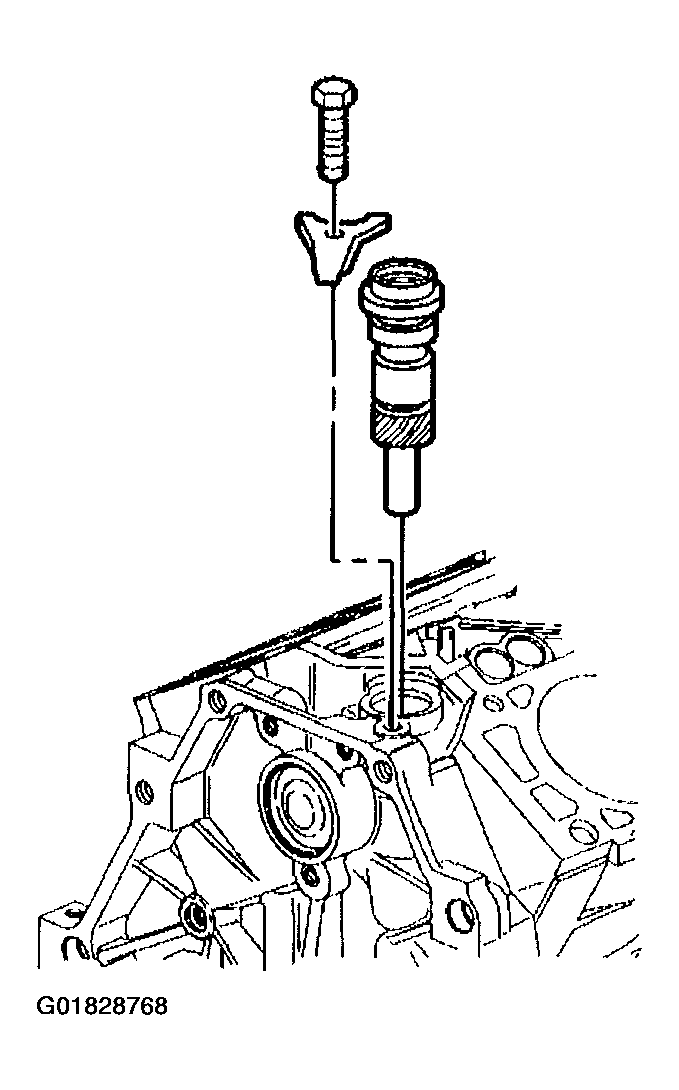

    Fig 1: Oil Pump Drive
    G01828768Courtesy of GENERAL MOTORS CORP.
