Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply prelube GM P/N 1052365 or the equivalent to the oil pump drive gear.
  2. Apply engine oil to the oil pump drive gear assembly for ease of assembly.

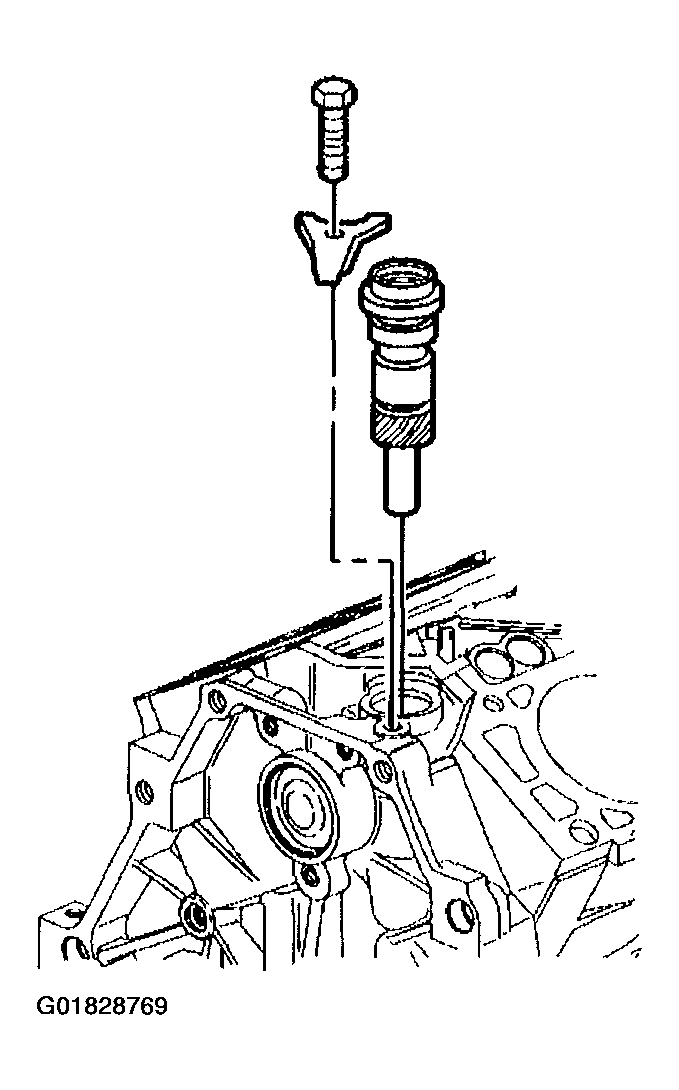

    3. Fig 1: Oil Pump Drive
    G01828769Courtesy of GENERAL MOTORS CORP.
  3. Install the oil pump drive gear assembly.
  4. Install the oil pump drive gear clamp.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the oil pump drive gear clamp bolt.

    Tighten

    Tighten the bolt to 36 N.m (27 lb ft).

  6. Connect the fuel feed and return pipe to the fuel injector rail. Refer to FUEL HOSES/PIPES - ENGINE COMPARTMENT .
  7. Install the upper intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - Upper .
