Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT .
  2. Remove the oil level indicator.
  3. Remove the oil level indicator tube.

    If you are unable to remove the oil level indicator tube, perform the following steps:

    1. Remove the stud in order to allow for lateral movement of the oil level indicator tube.
    2. Apply penetrating oil to the bottom of the oil level indicator tube.
    3. Move the oil level indicator tube back and forth in order to loosen the oil level indicator tube.

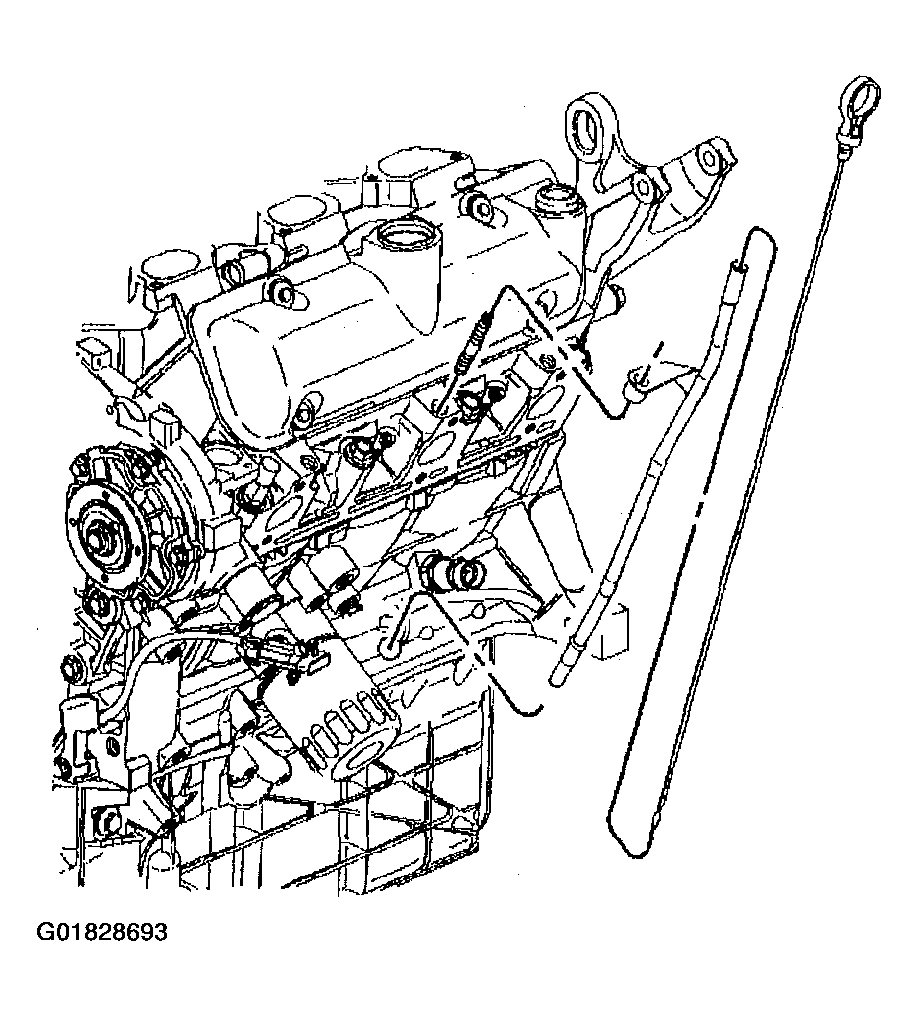

    Fig 1: Oil Level Indicator & Tube
    G01828693Courtesy of GENERAL MOTORS CORP.
