Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

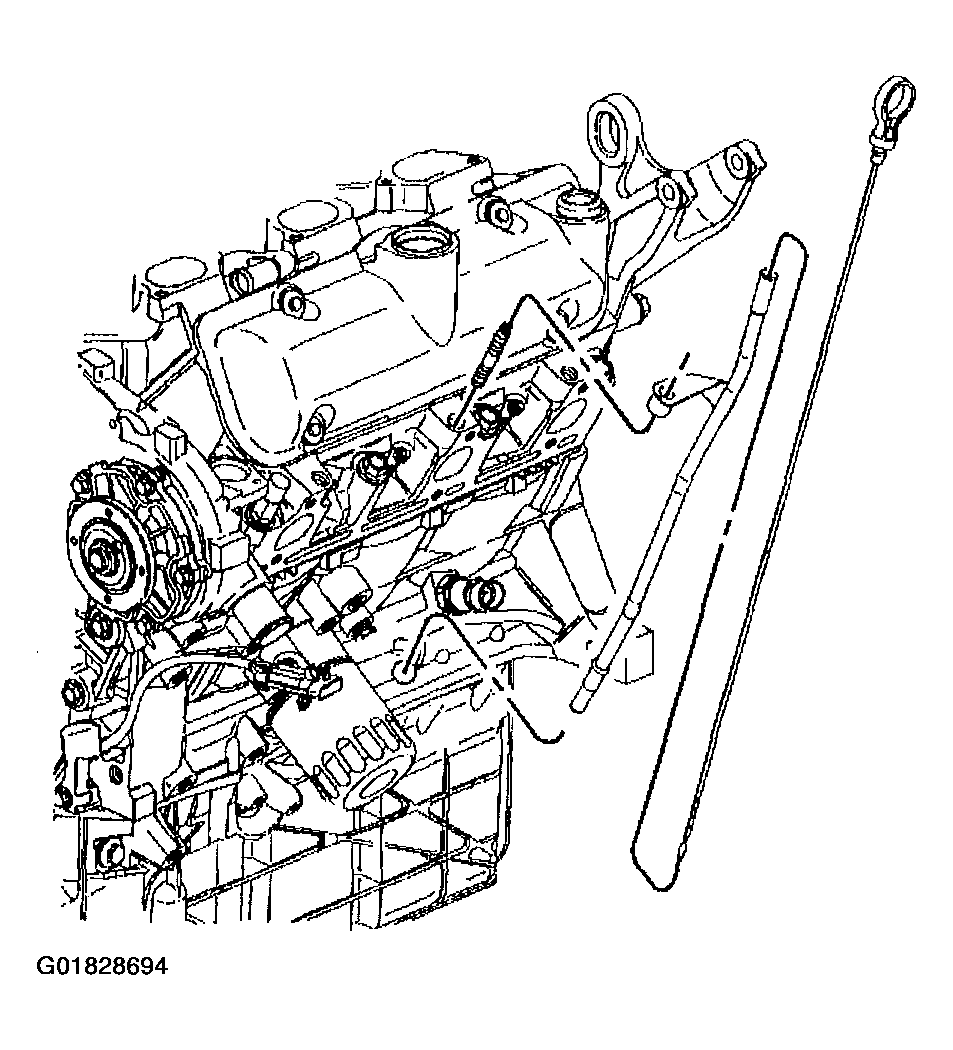

    Fig 1: Oil Level Indicator & Tube
    G01828694Courtesy of GENERAL MOTORS CORP.
  1. Clean the oil level indicator tube.
  2. Apply GM sealant P/N 12345739 or equivalent around the oil level indicator tube 12.7 mm (0.50 in) below the bead.
  3. Install the oil level indicator tube into the engine block.
  4. Install the oil level indicator.
  5. Install the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT .
