Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil cooler and the oil cooler inlet hose clamp. Ensure that the oil cooler seal is in place. Coat the seal with engine oil.

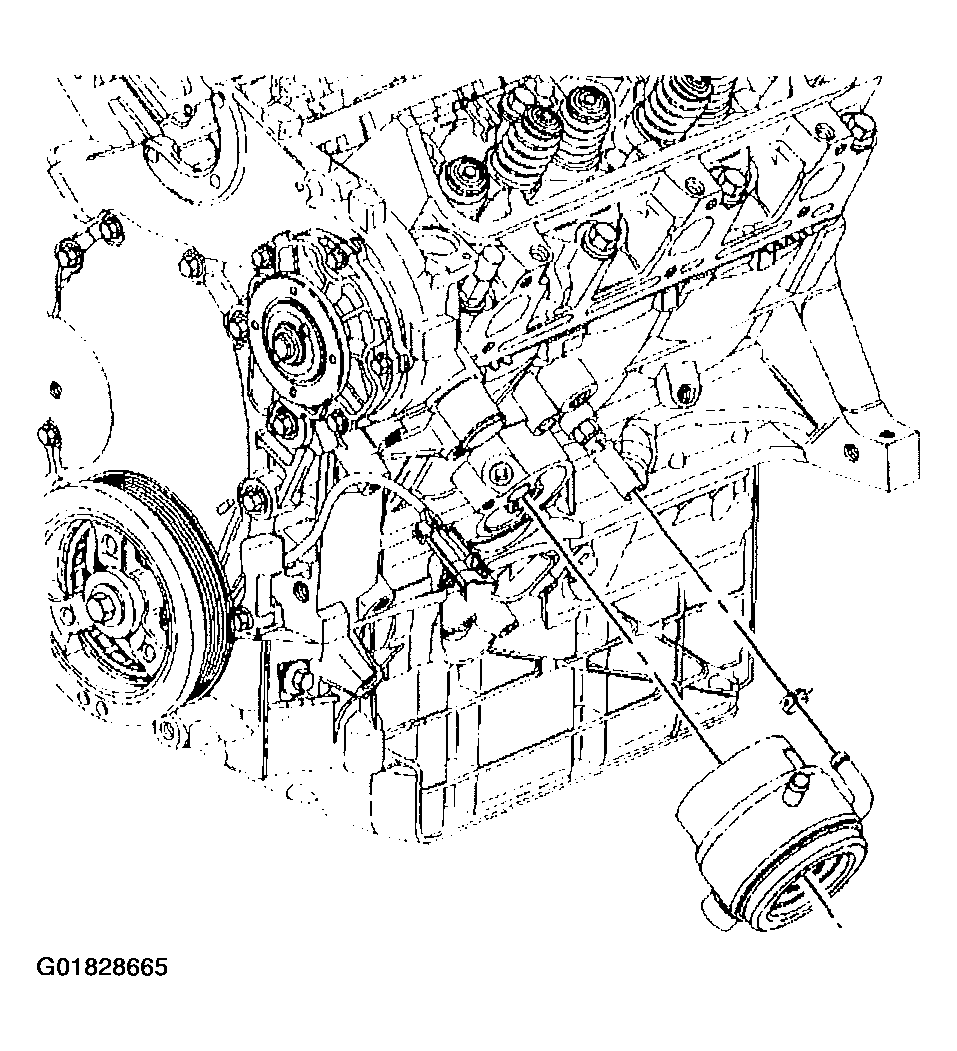

    Fig 1: Oil Cooler
    G01828665Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the oil cooler connector.

    Tighten

    Tighten the oil cooler connector to 50 N.m (37 lb ft).

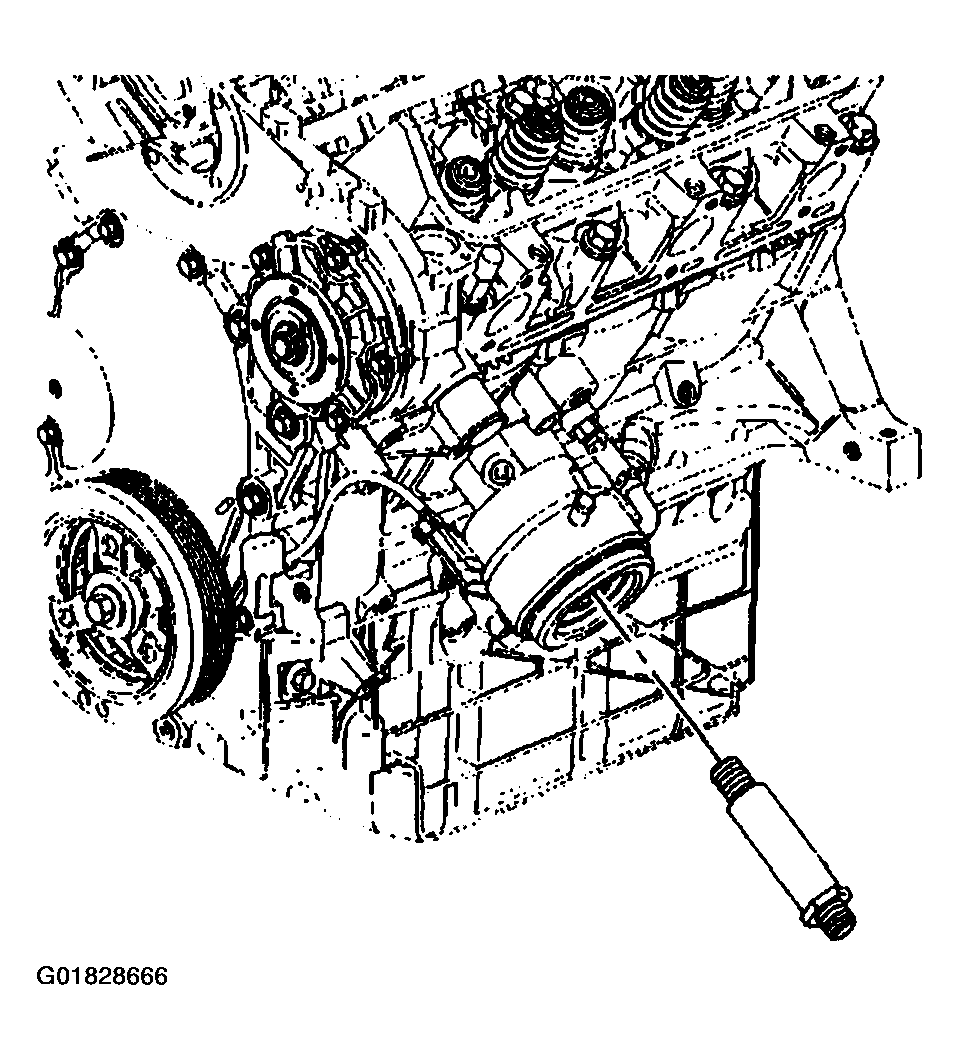

    Fig 2: Oil Cooler Connector
    G01828666Courtesy of GENERAL MOTORS CORP.
  3. Connect the oil cooler outlet hose to the oil cooler.

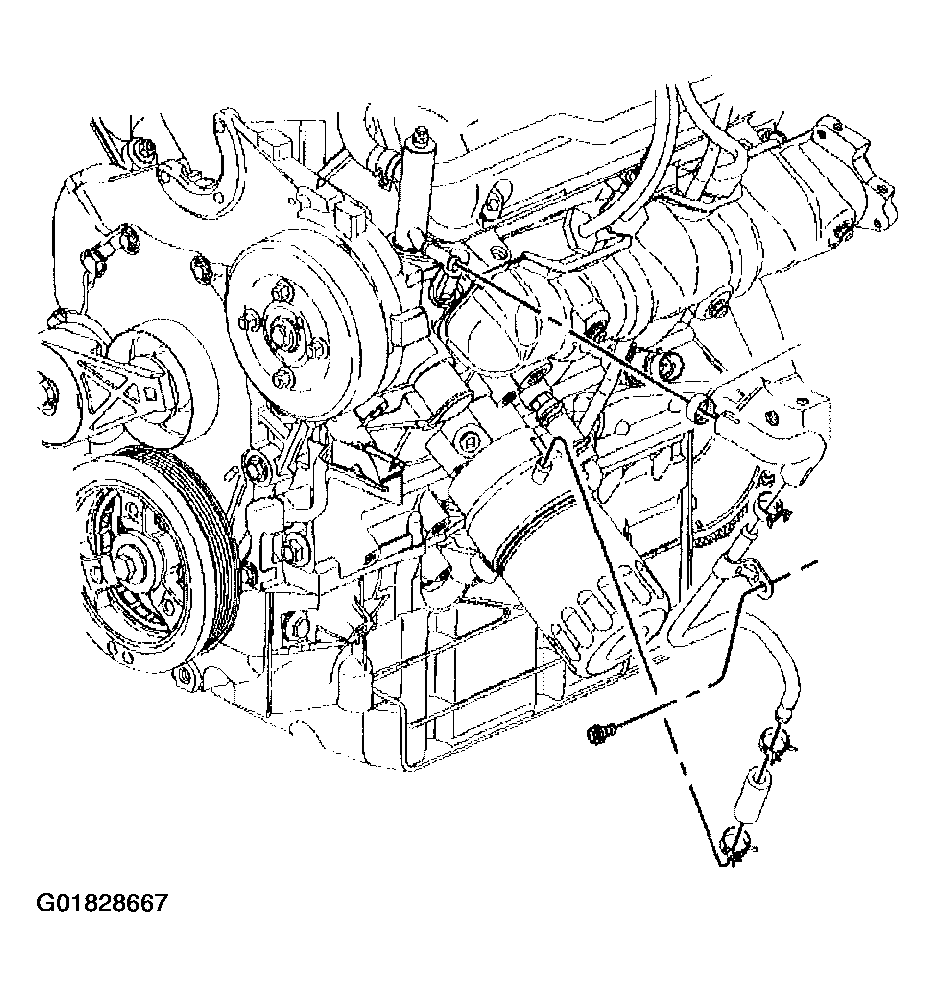

    Fig 3: Oil Cooler Outlet Hose
    G01828667Courtesy of GENERAL MOTORS CORP.
  4. Install the oil filter. Refer to Engine Oil and Oil Filter Replacement .

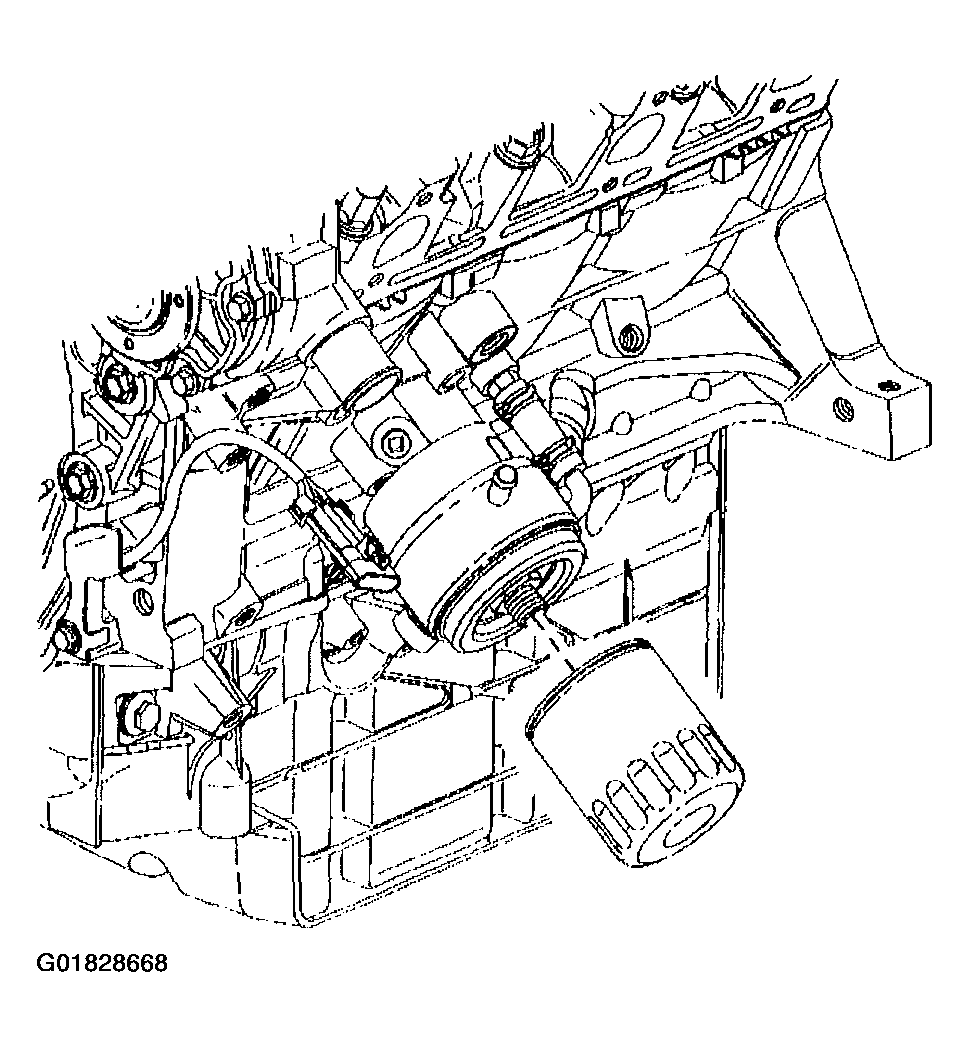

    5. Fig 4: Oil Filter
    G01828668Courtesy of GENERAL MOTORS CORP.
  5. Connect the knock sensor electrical connector.
  6. Lower the vehicle.
  7. Fill the engine cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .
  8. Add engine oil as necessary. Refer to Engine Oil and Oil Filter Replacement .
  9. Inspect the oil cooler for leaks.
