Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant from the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Disconnect the knock sensor electrical connector.
  4. Remove the oil filter. Refer to Engine Oil and Oil Filter Replacement .

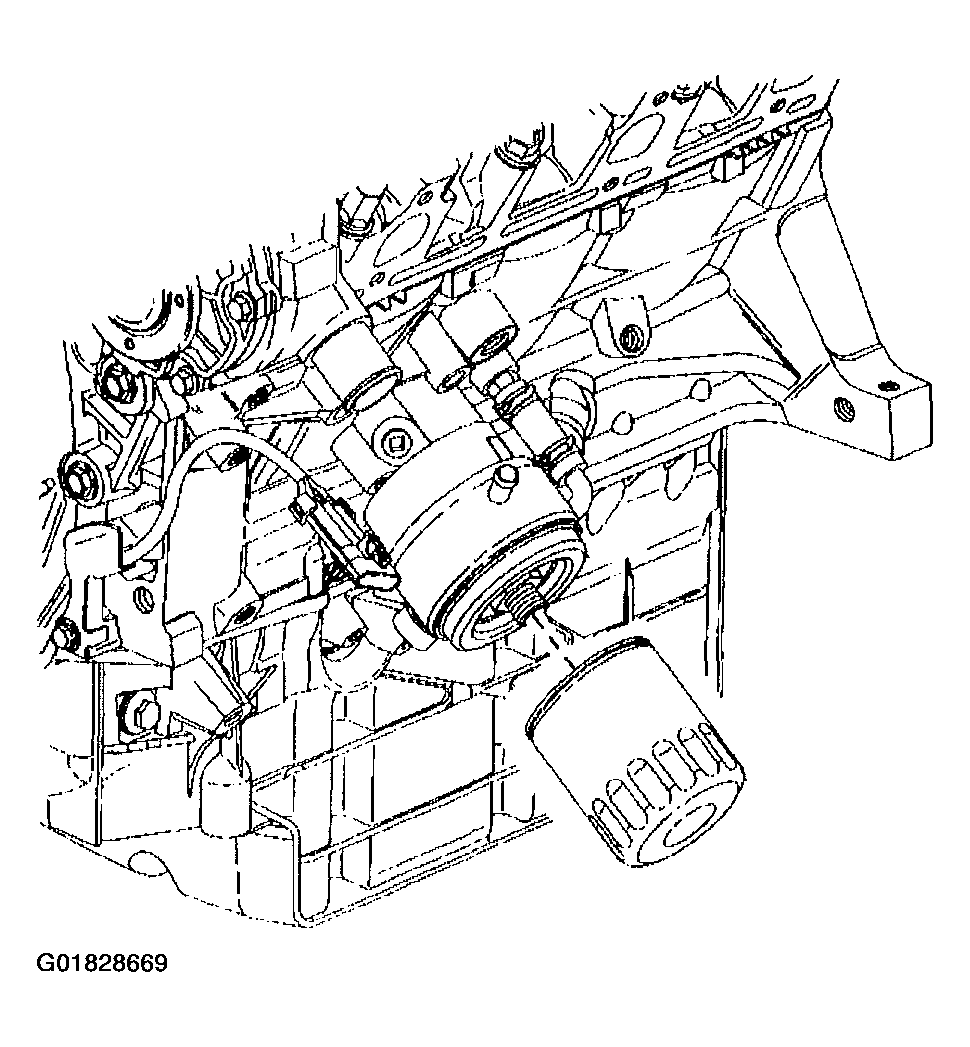

    Fig 1: Oil Filter
    G01828669Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the oil cooler outlet hose from the oil cooler.

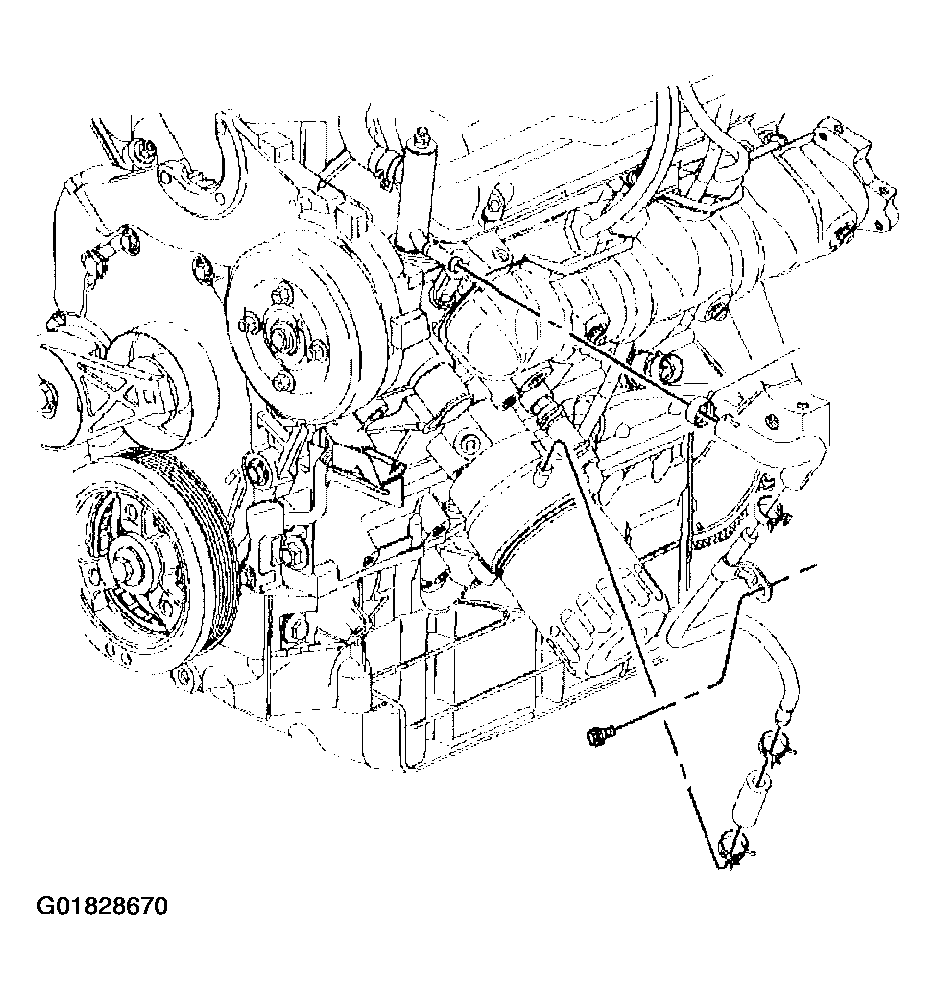

    Fig 2: Oil Cooler Outlet Hose
    G01828670Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil cooler connector.

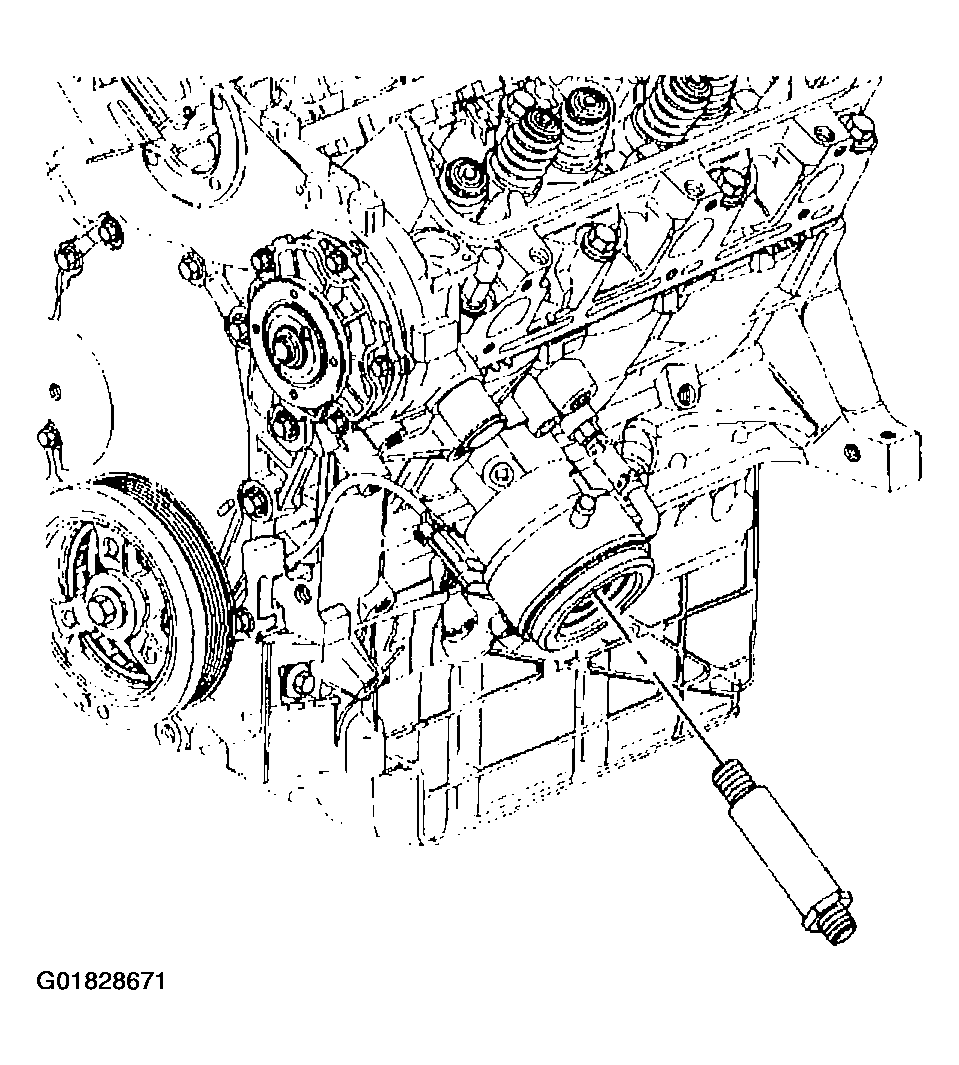

    Fig 3: Oil Cooler Connector
    G01828671Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil cooler inlet hose clamp and the oil cooler.

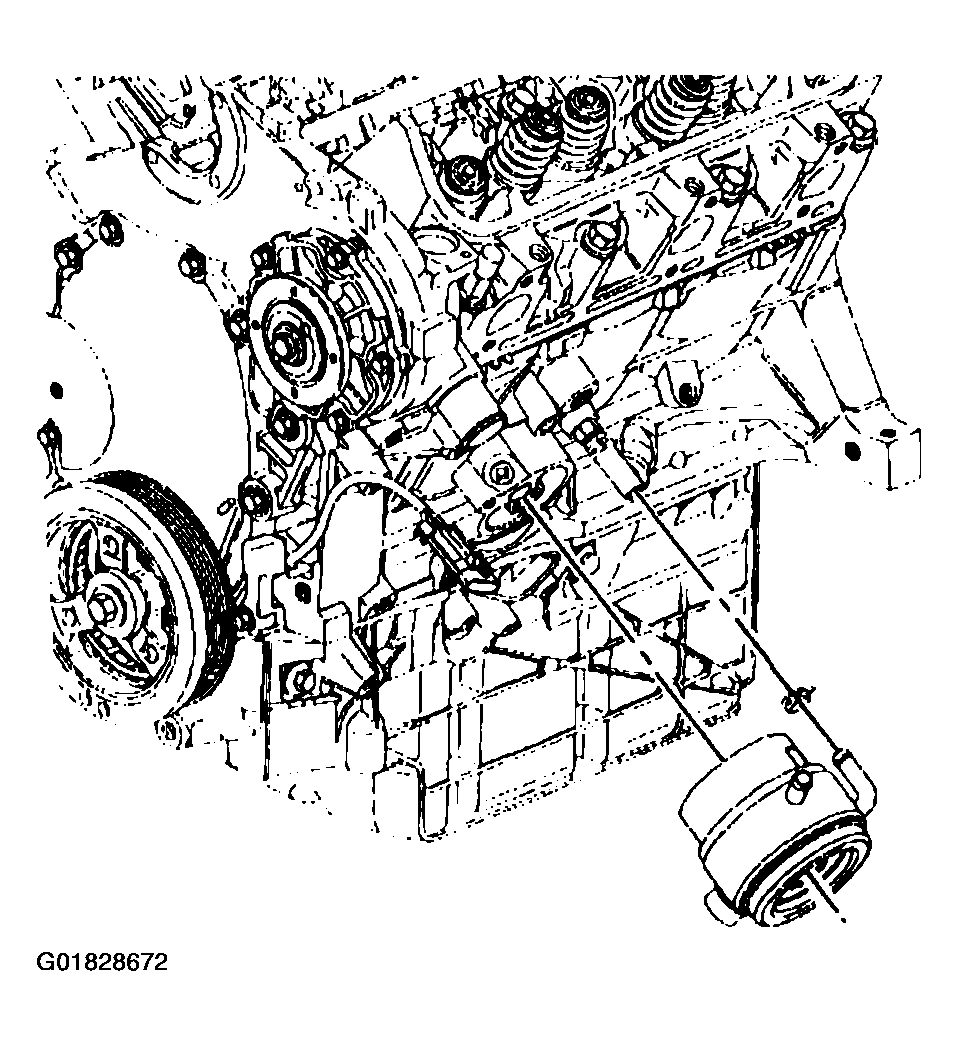

    Fig 4: Oil Cooler
    G01828672Courtesy of GENERAL MOTORS CORP.
  8. Remove the oil cooler inlet hose clamp and oil cooler inlet hose from the oil cooler hose fitting.

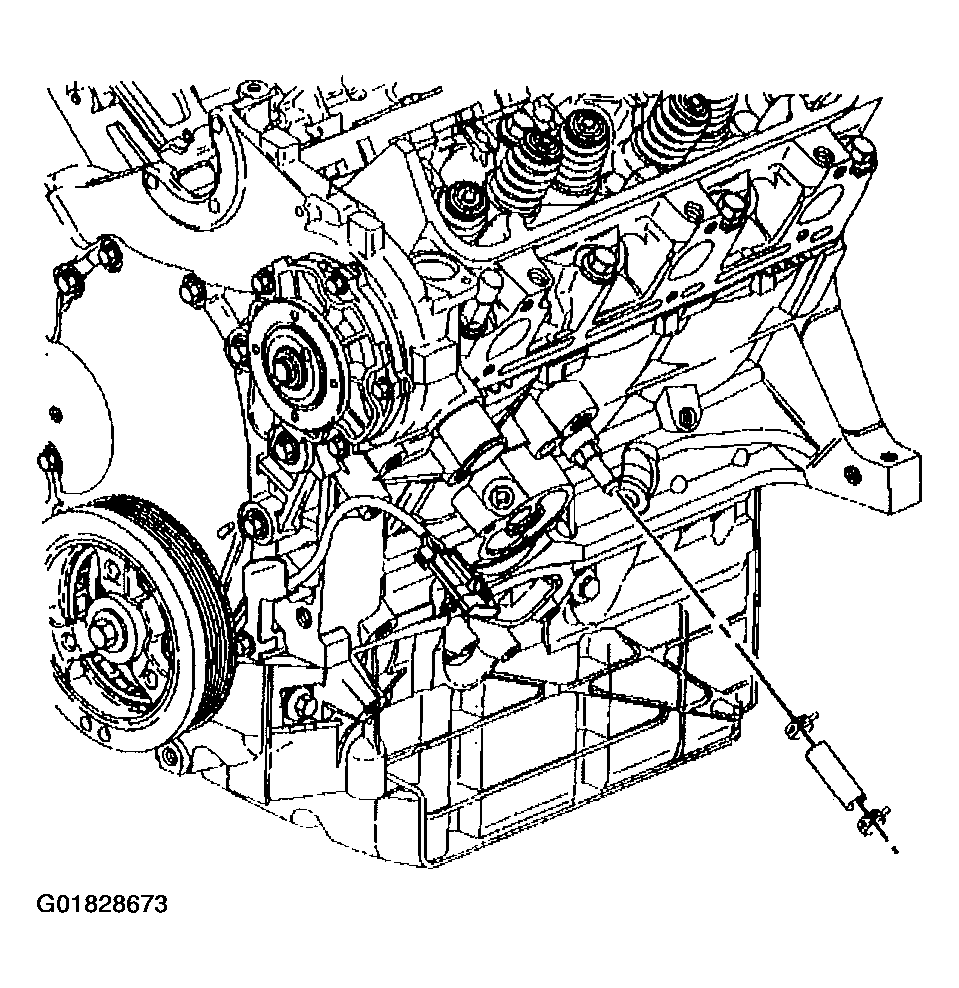

    Fig 5: Oil Cooler Inlet Hose
    G01828673Courtesy of GENERAL MOTORS CORP.
  9. If necessary, remove the oil cooler hose fitting.
    Fig 6: Oil Cooler Hose Fitting
    G01828674Courtesy of GENERAL MOTORS CORP.
