Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. If removed, install the oil cooler hose fitting.

    Tighten

    Tighten the fitting to 19 N.m (14 lb ft).

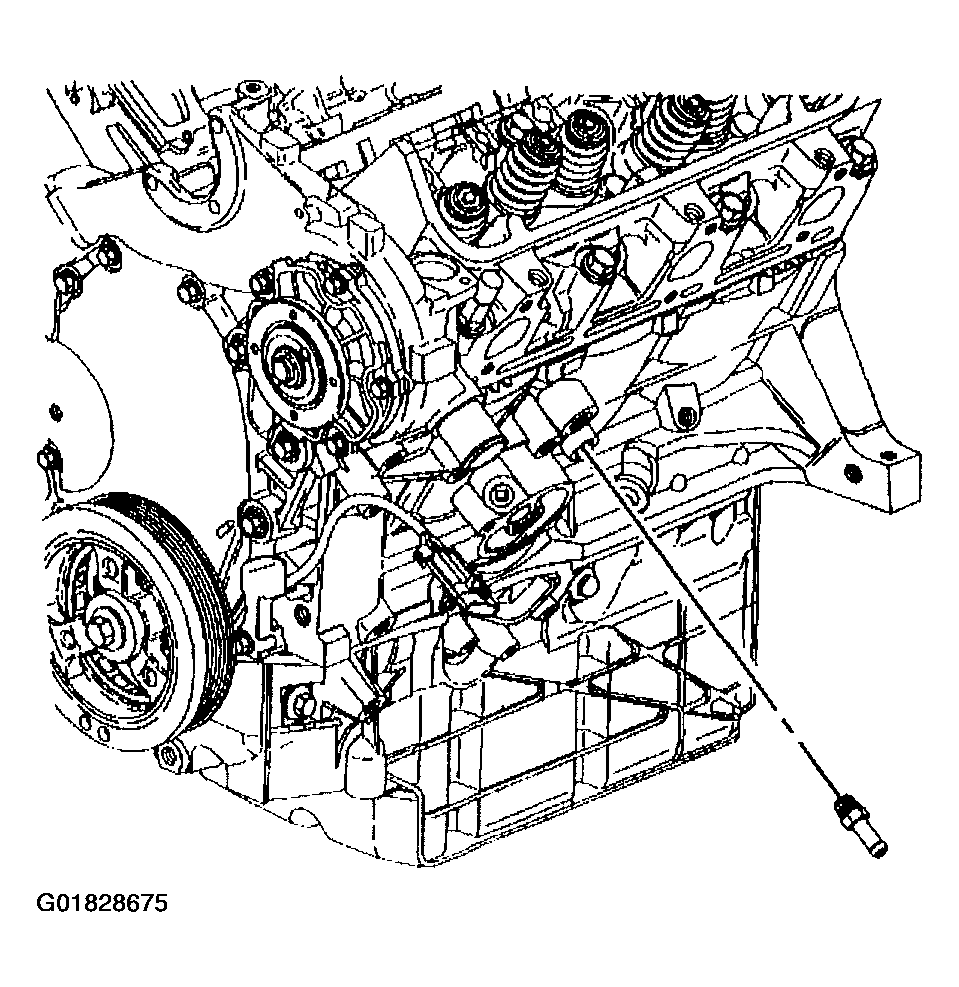

    Fig 1: Oil Cooler Hose Fitting
    G01828675Courtesy of GENERAL MOTORS CORP.
  2. Install the oil cooler inlet hose clamp and oil cooler inlet hose to the oil cooler hose fitting.

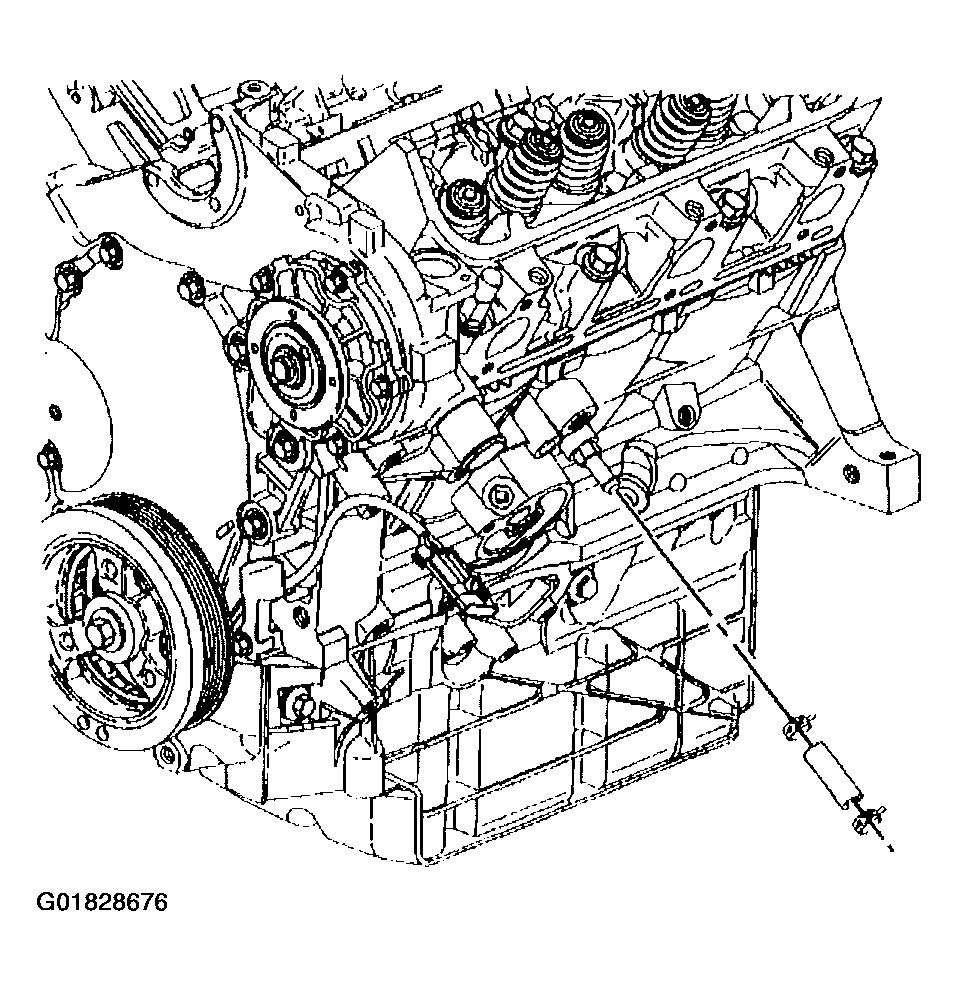

    Fig 2: Oil Cooler Inlet Hose
    G01828676Courtesy of GENERAL MOTORS CORP.
  3. Connect the oil cooler inlet hose clamp and the oil cooler. Ensure that the oil cooler seal is in place. Coat the seal with engine oil.

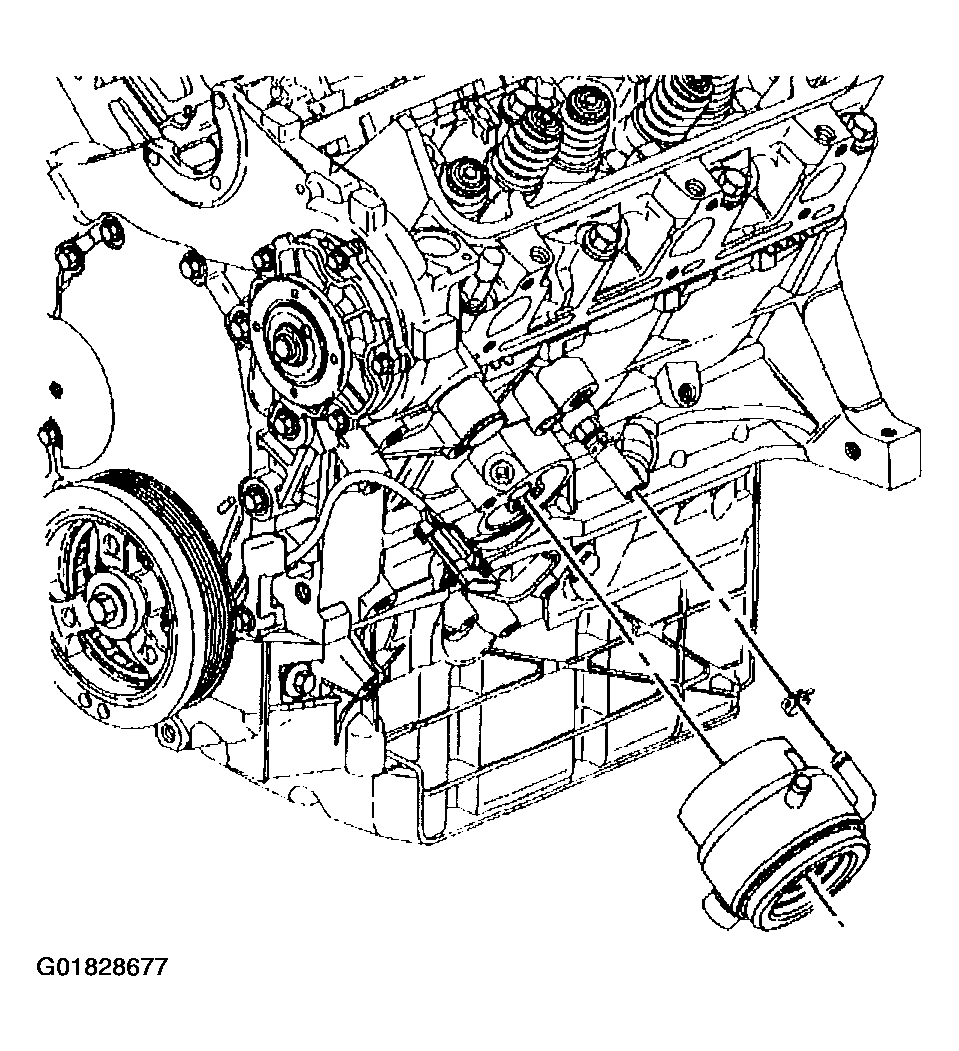

    Fig 3: Oil Cooler
    G01828677Courtesy of GENERAL MOTORS CORP.
  4. Install the oil cooler connector.

    Tighten

    Tighten the connector to 50 N.m (37 lb ft).

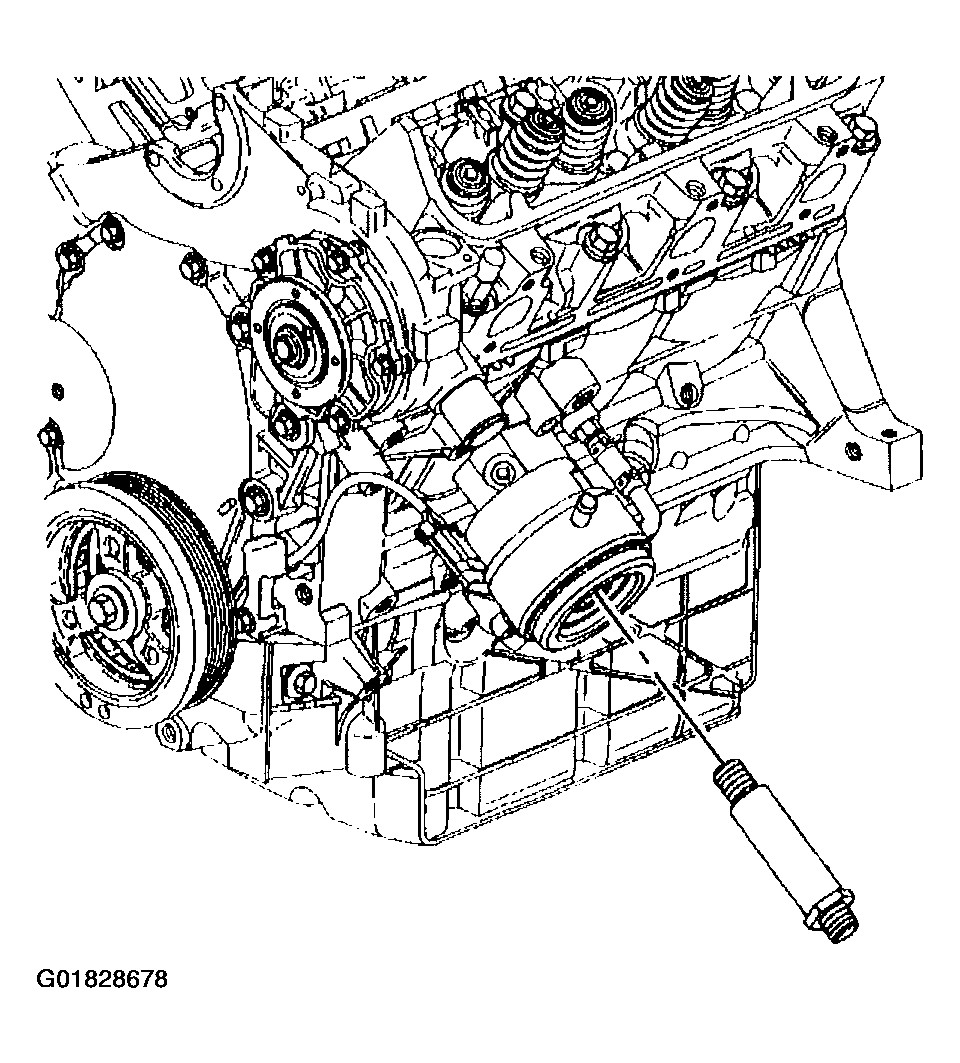

    Fig 4: Oil Cooler Connector
    G01828678Courtesy of GENERAL MOTORS CORP.
  5. Connect the oil cooler outlet hose to the oil cooler.

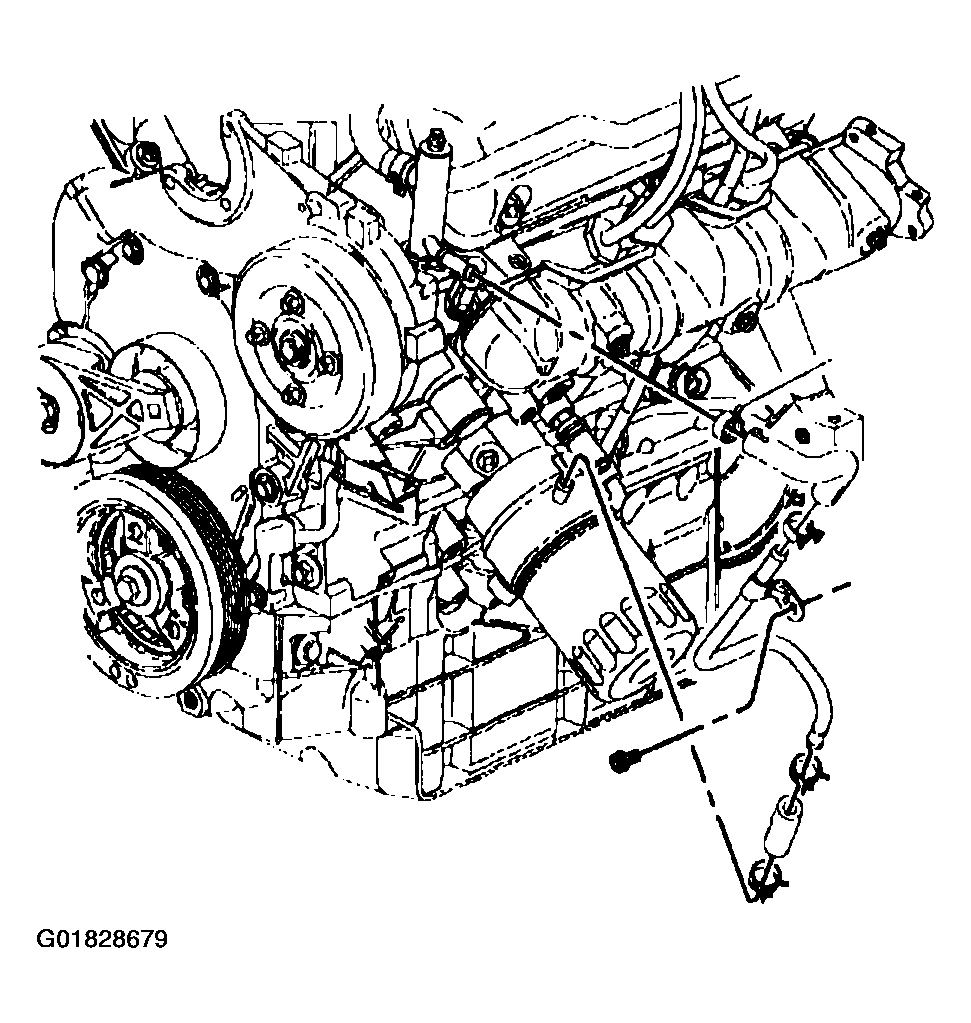

    Fig 5: Oil Cooler Outlet Hose
    G01828679Courtesy of GENERAL MOTORS CORP.
  6. Install the oil filter. Refer to Engine Oil and Oil Filter Replacement .

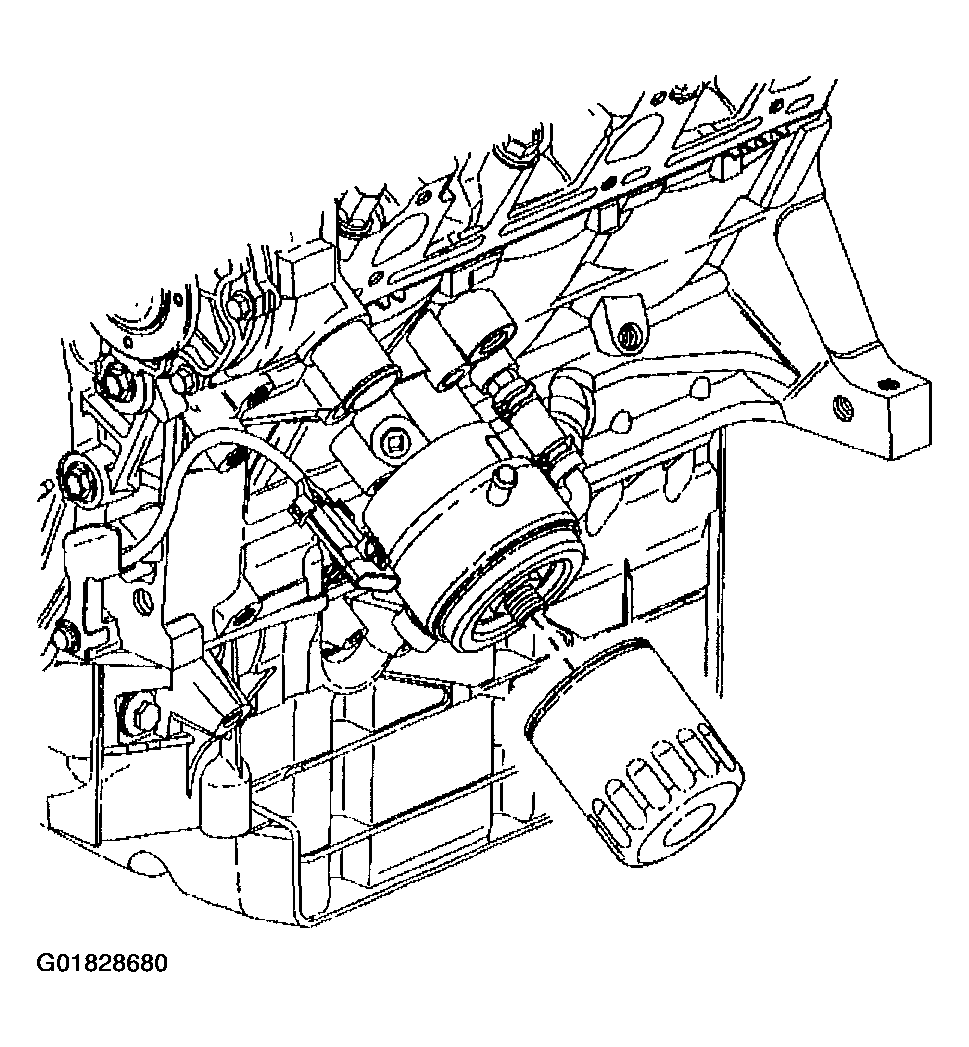

    7. Fig 6: Oil Filter
    G01828680Courtesy of GENERAL MOTORS CORP.
  7. Connect the knock sensor electrical connector.
  8. Lower the vehicle.
  9. Fill the cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .
  10. Add engine oil as necessary. Refer to Engine Oil and Oil Filter Replacement .
  11. Inspect the oil cooler for leaks.
