Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side engine mount strut. Refer to ENGINE MOUNT STRUT REPLACEMENT - Left  or ENGINE MOUNT STRUT REPLACEMENT - Right .
  2. Install the J 28467-500.

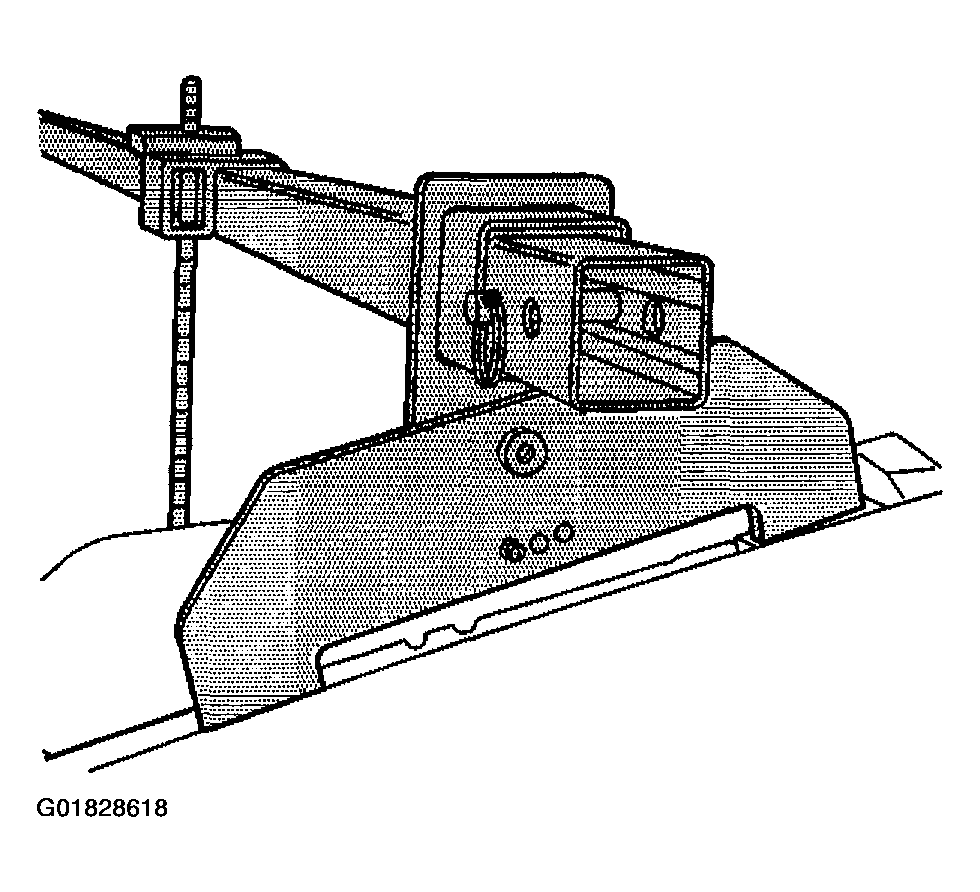

    Fig 1: J 28467-500
    G01828618Courtesy of GENERAL MOTORS CORP.
  3. Install the spreader bar to the engine mount strut bracket.

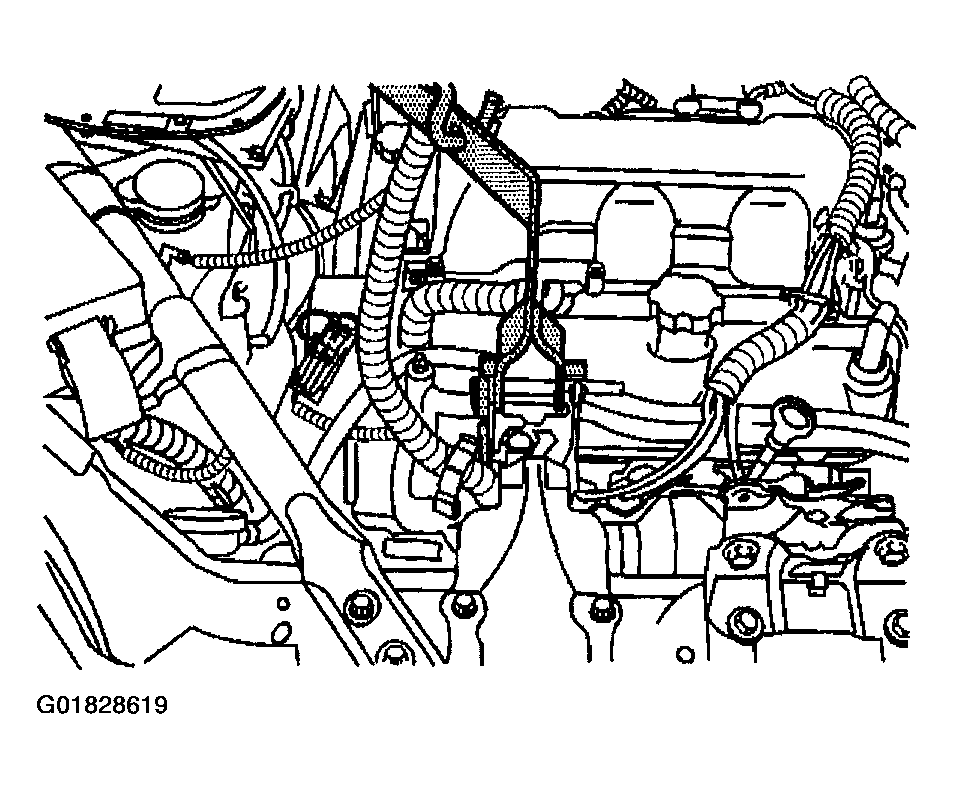

    Fig 2: Spreader Bar To Engine Mount Strut Bracket
    G01828619Courtesy of GENERAL MOTORS CORP.
  4. Install the spreader bar to the engine right side engine lift hook.
  5. Install the J 28467-6A.

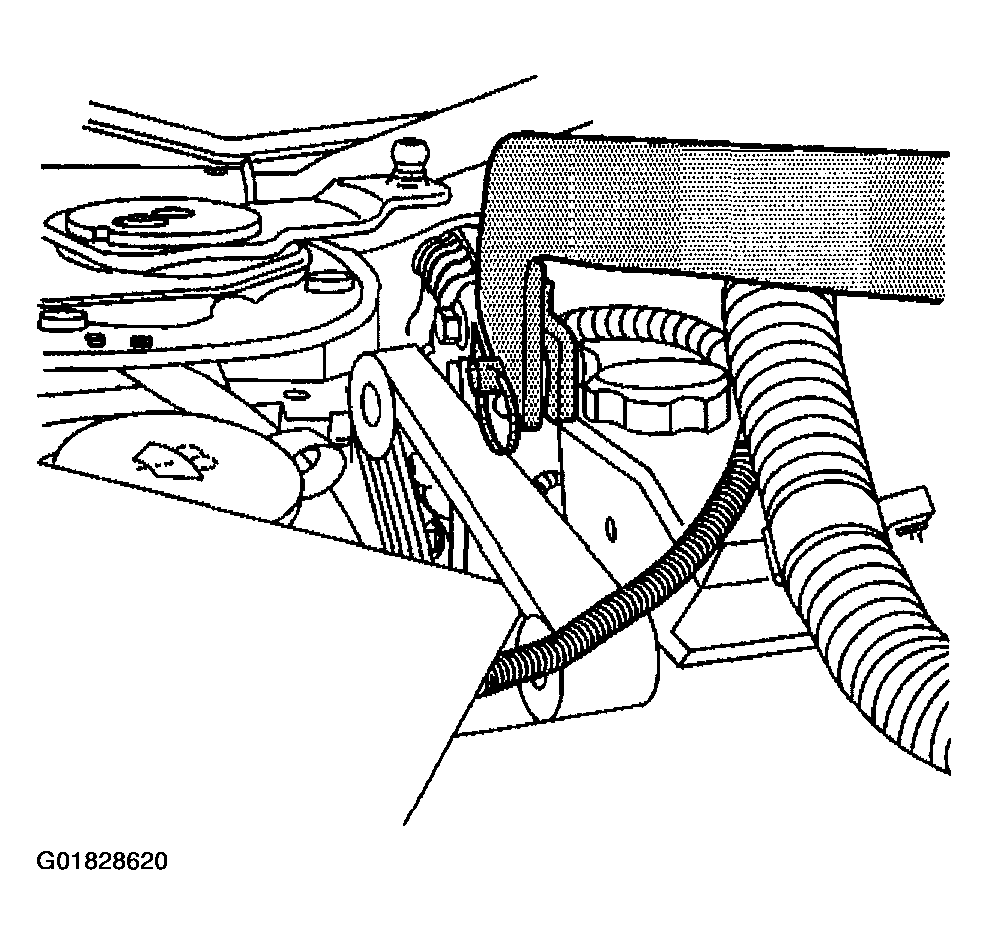

    Fig 3: Spreader Bar To Engine Right Side Engine Lift Hook
    G01828620Courtesy of GENERAL MOTORS CORP.

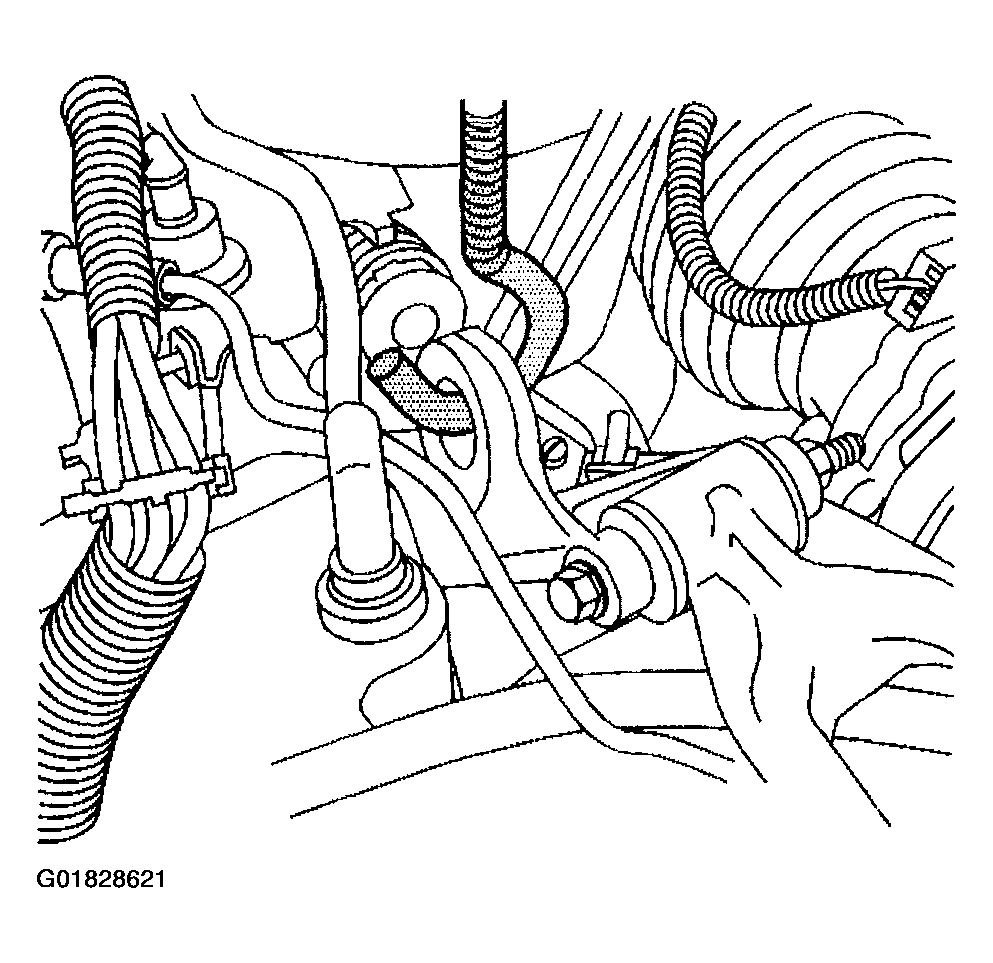

    6. Fig 4: J 28467-7A To Engine Left Side Engine Lift Hook
    G01828621Courtesy of GENERAL MOTORS CORP.
  6. Install the J 28467-7A  to the engine left side engine lift hook.
  7. Install the J 28467-34.
  8. Install the J 28467-6A.
  9. Install the J 28467-8A  to the spreader bar.
  10. Install the J 28467-34.
    Fig 5: J 28467-8A To Spreader Bar
    G01828622Courtesy of GENERAL MOTORS CORP.
  11. The engine support fixture upper portion installed.

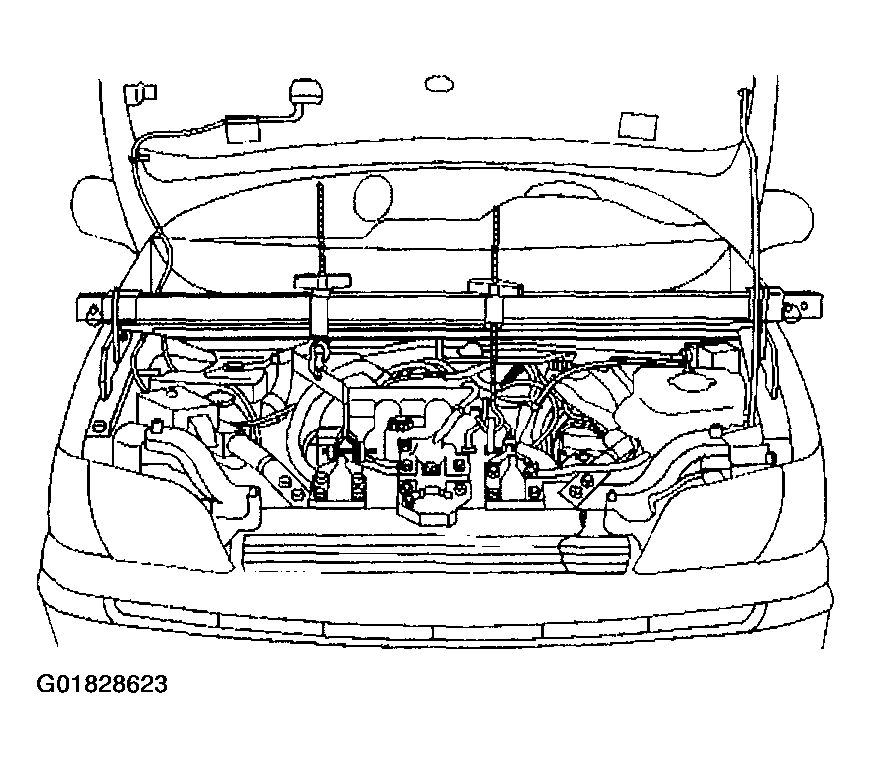

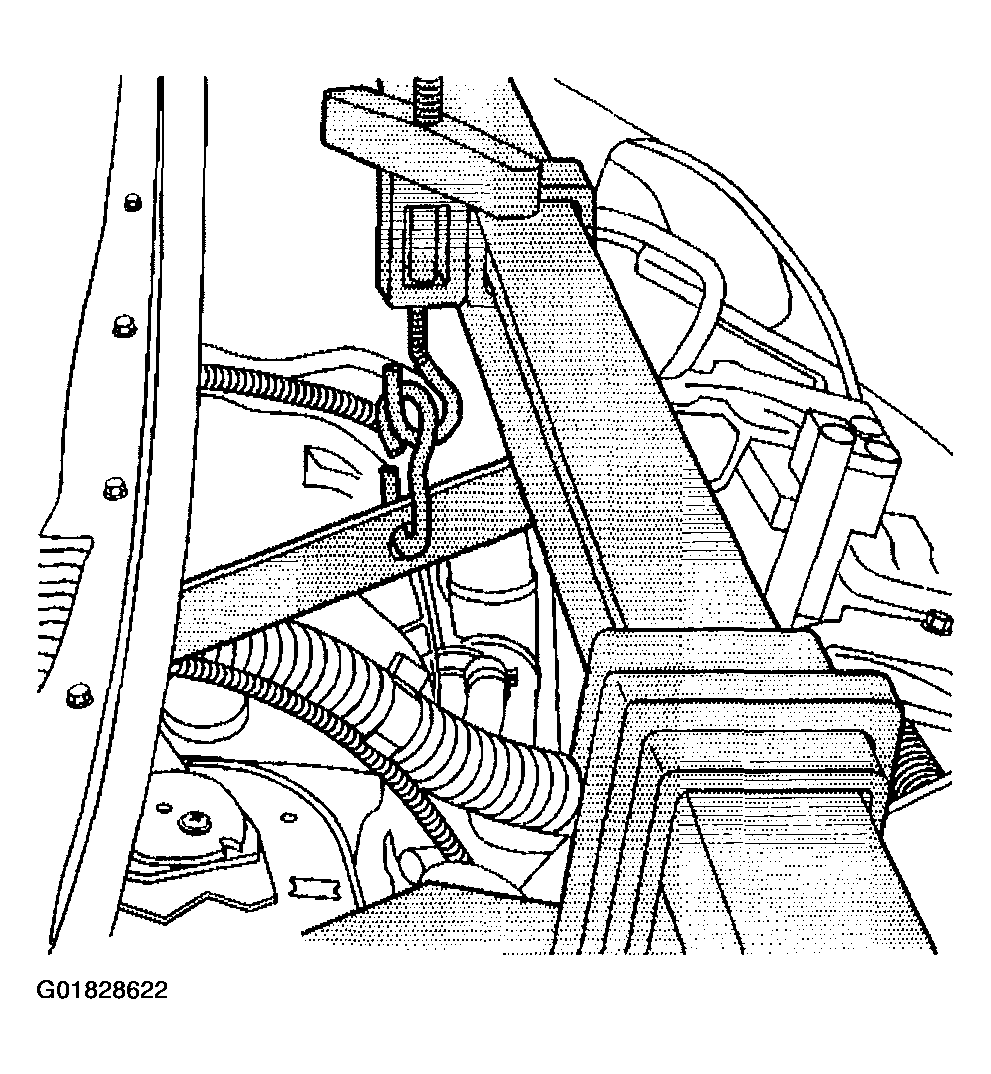

    Fig 6: Engine Support Fixture Upper Portion
    G01828623Courtesy of GENERAL MOTORS CORP.

    Important:  Perform the following steps only if you are disconnecting both of the powertrain mounts from the frame or the powertrain.

  12. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
    CAUTION: The utility straps MUST be installed in order to prevent forward movement of the powertrain. If the utility straps are not installed, the powertrain will move which may cause personal injury and vehicle damage.
  13. Install the J 28467-500UPD  to the engine.

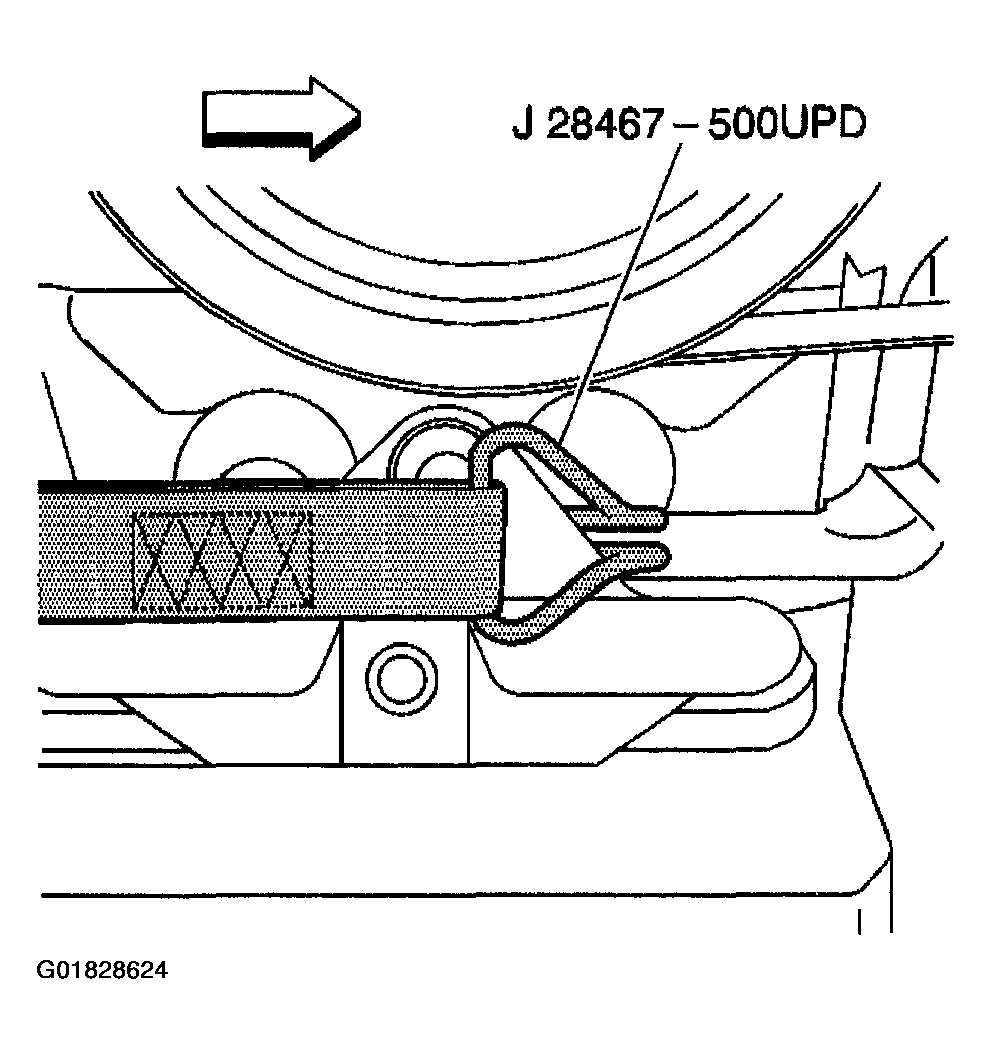

    Fig 7: J 28467-500UPD To Engine
    G01828624Courtesy of GENERAL MOTORS CORP.
  14. Install the J28467-500UPD  opposite end to the underbody rail.

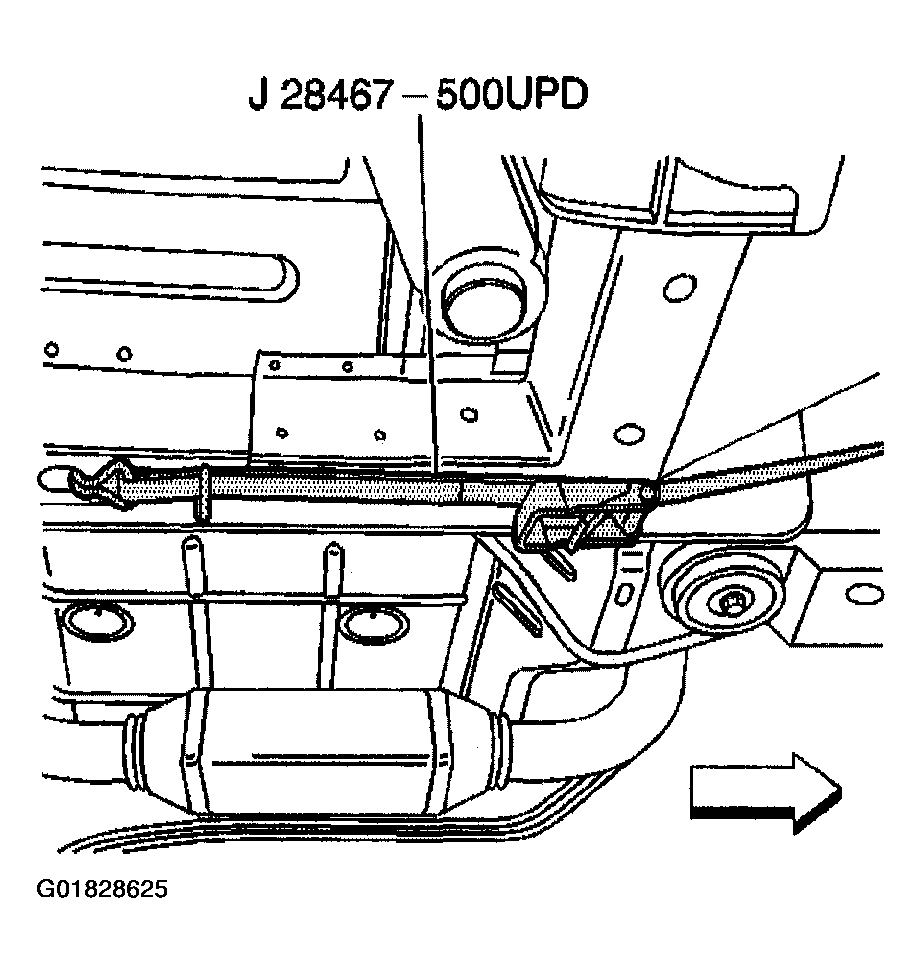

    Fig 8: J 28467-500UPD To Underbody Rail
    G01828625Courtesy of GENERAL MOTORS CORP.
  15. Install the OTHER J 28467-500UPD  to the transaxle.

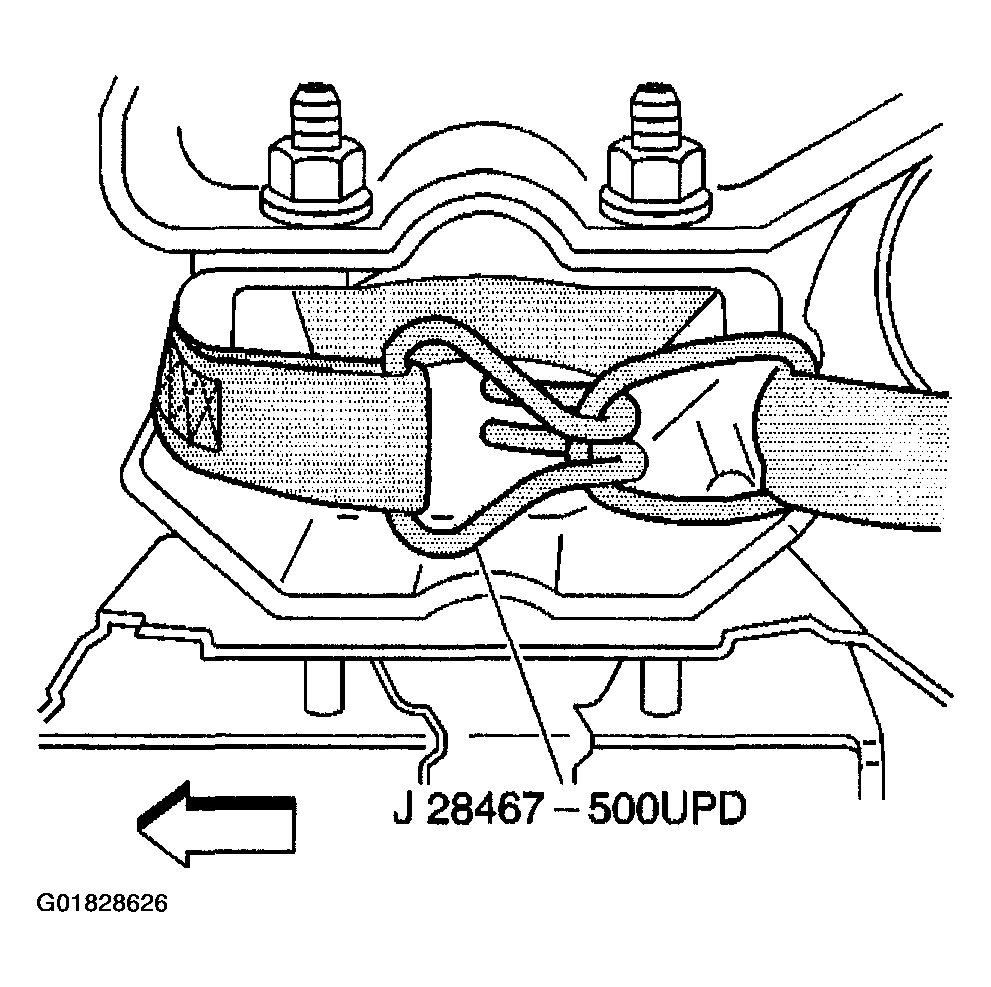

    Fig 9: J 28467-500UPD To Transaxle
    G01828626Courtesy of GENERAL MOTORS CORP.
  16. Install the J 28467-500UPD  opposite end to the underbody rail.

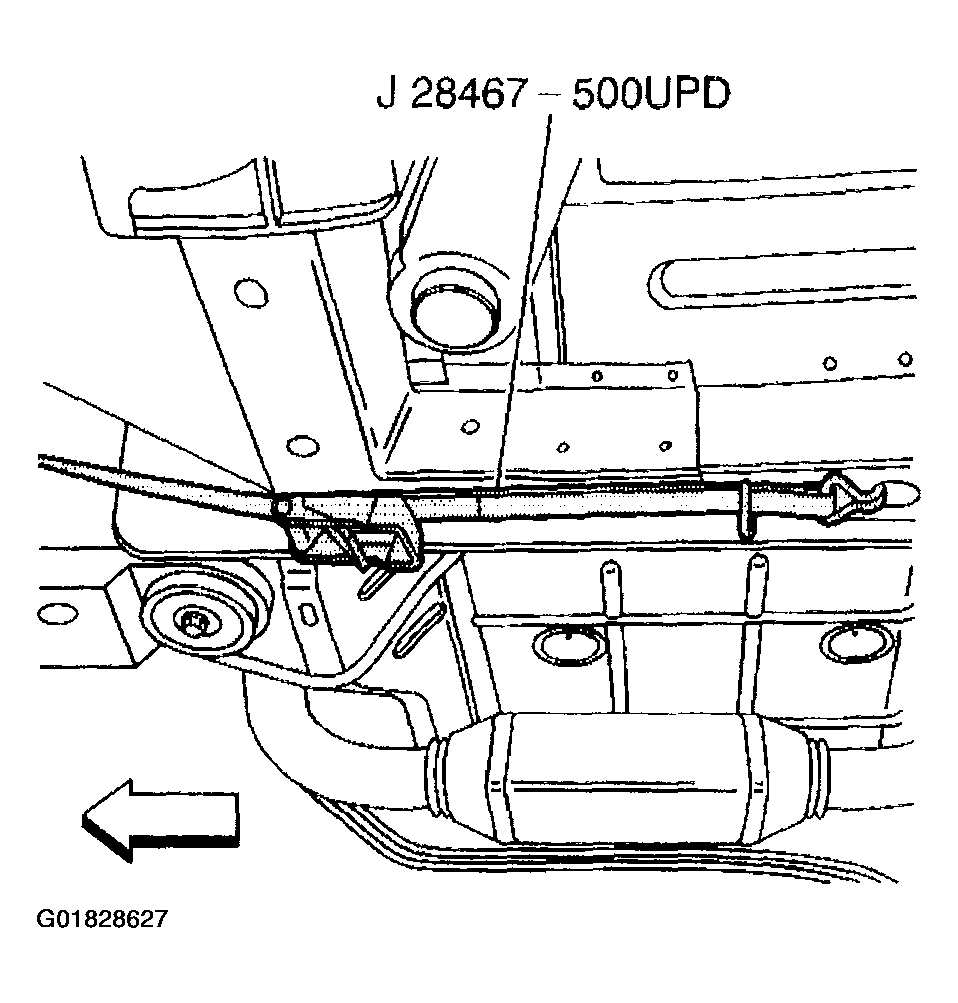

    Fig 10: J 28467-500UPD To Underbody Rail
    G01828627Courtesy of GENERAL MOTORS CORP.
  17. Tighten both of the J 28467-500UPD  utility straps in order to prevent forward movement of the powertrain.
