Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery negative cable from the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the electrical connector from the engine oil pressure sensor.
  4. Remove the engine oil pressure switch.

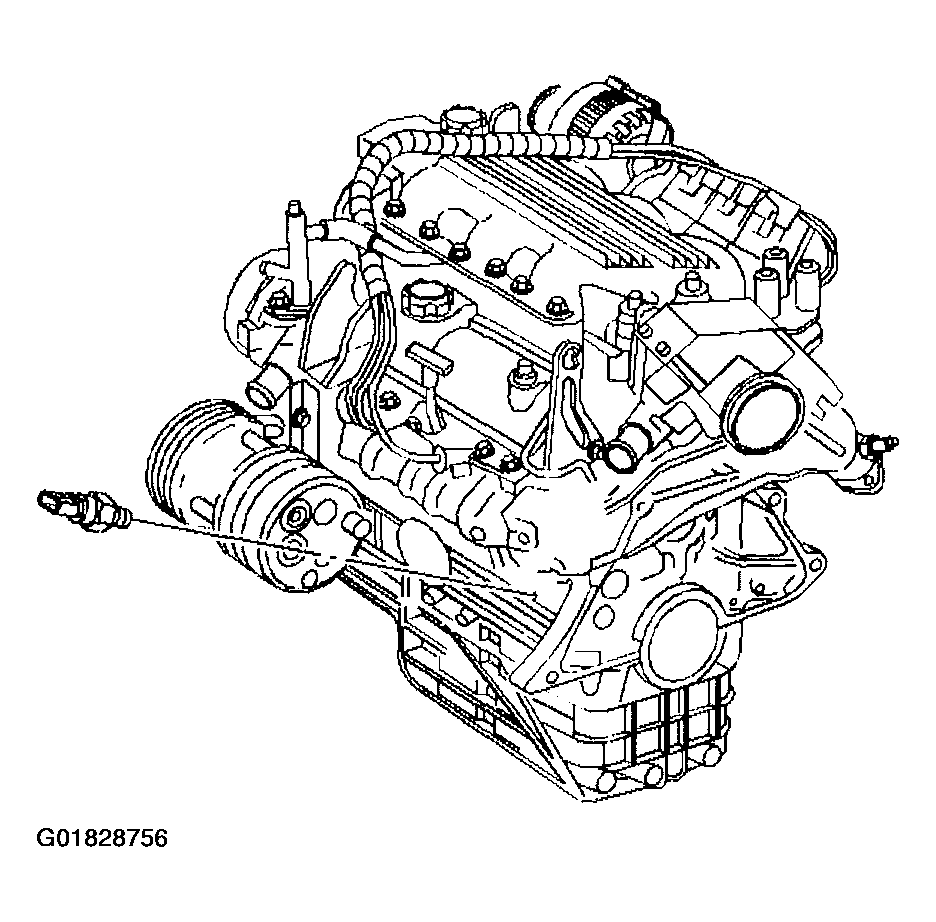

    Fig 1: Engine Oil Pressure Switch
    G01828756Courtesy of GENERAL MOTORS CORP.
