Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .

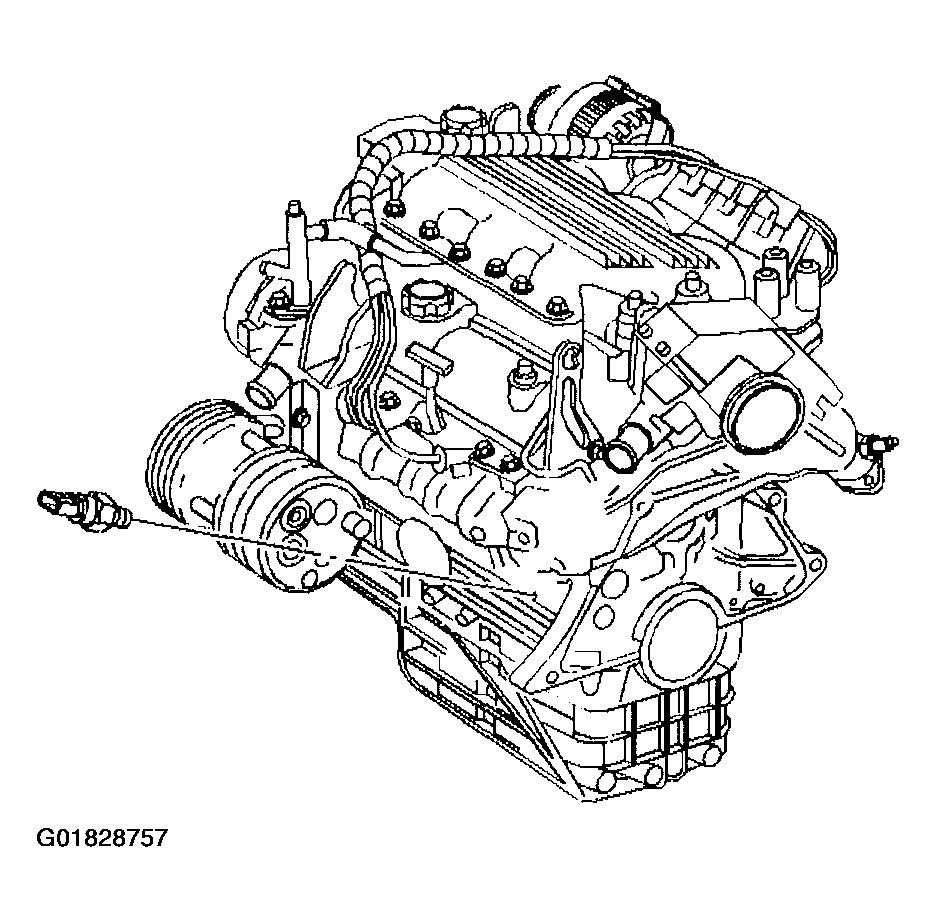

    Fig 1: Engine Oil Pressure Switch
    G01828757Courtesy of GENERAL MOTORS CORP.
  1. Install the engine oil pressure switch.

    Tighten

    Tighten the switch to 16 N.m (12 lb ft).

  2. Install the electrical connector to the engine oil pressure switch.
  3. Lower the vehicle.
  4. Install the battery negative cable to the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
