Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Drain the oil from the oil pan.
  3. Disconnect the electrical connector from the oil level sensor.

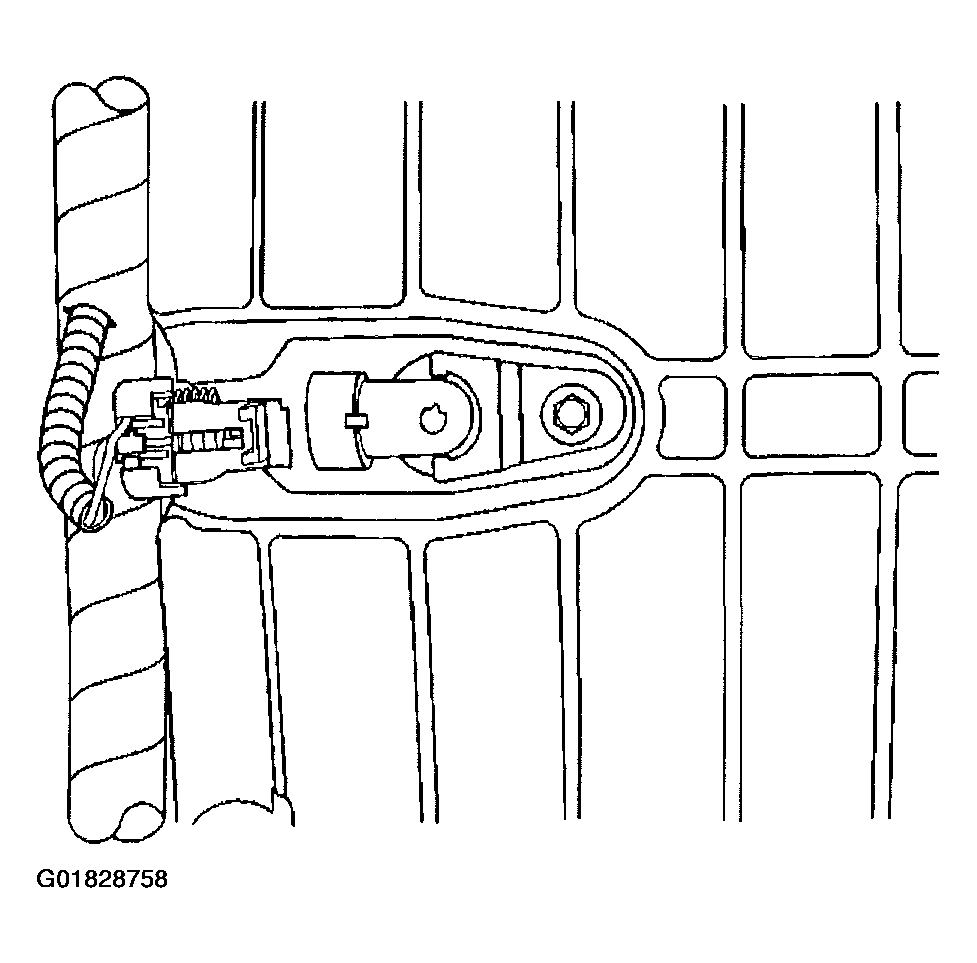

    Fig 1: Oil Level Sensor Wiring Harness Connection
    G01828758Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainer bolt from the oil pan.
  5. Remove the oil level sensor from the oil pan.

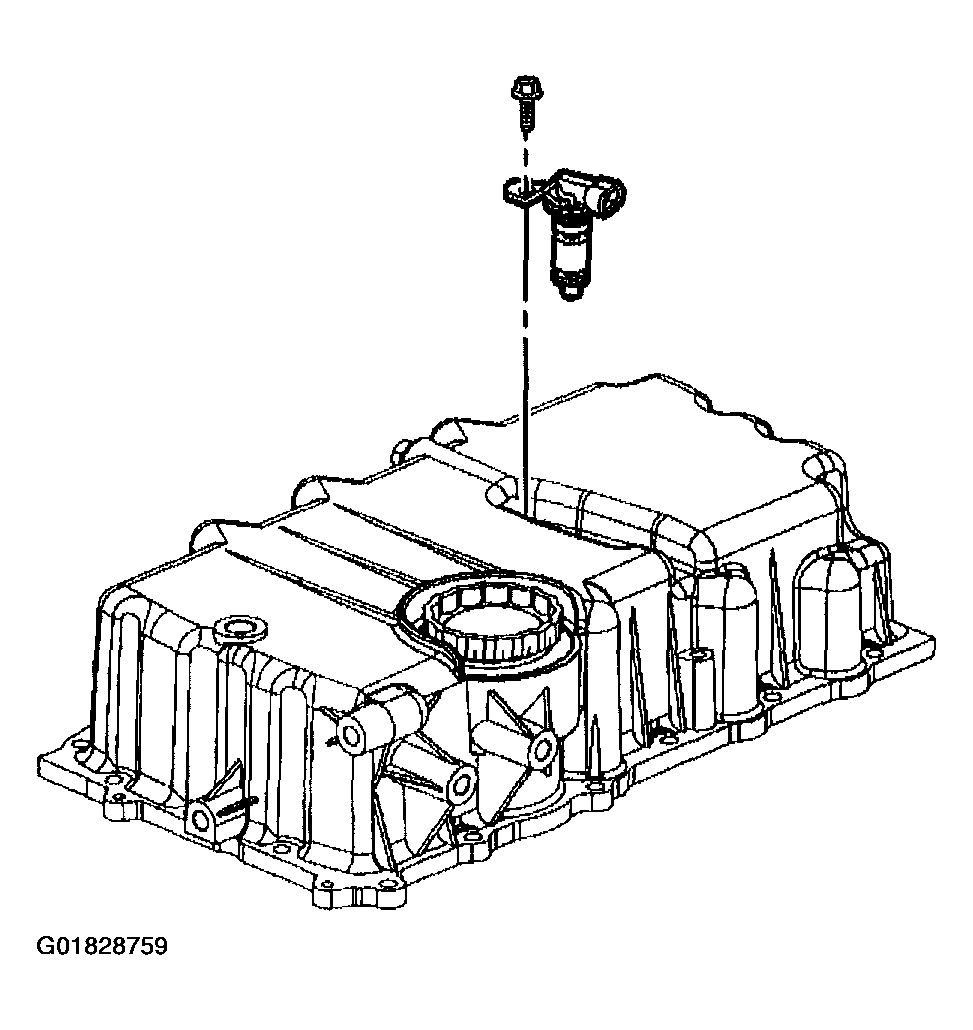

    Fig 2: Oil Level Sensor
    G01828759Courtesy of GENERAL MOTORS CORP.
