Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the engine mount strut at the right engine mount strut bracket on the engine.

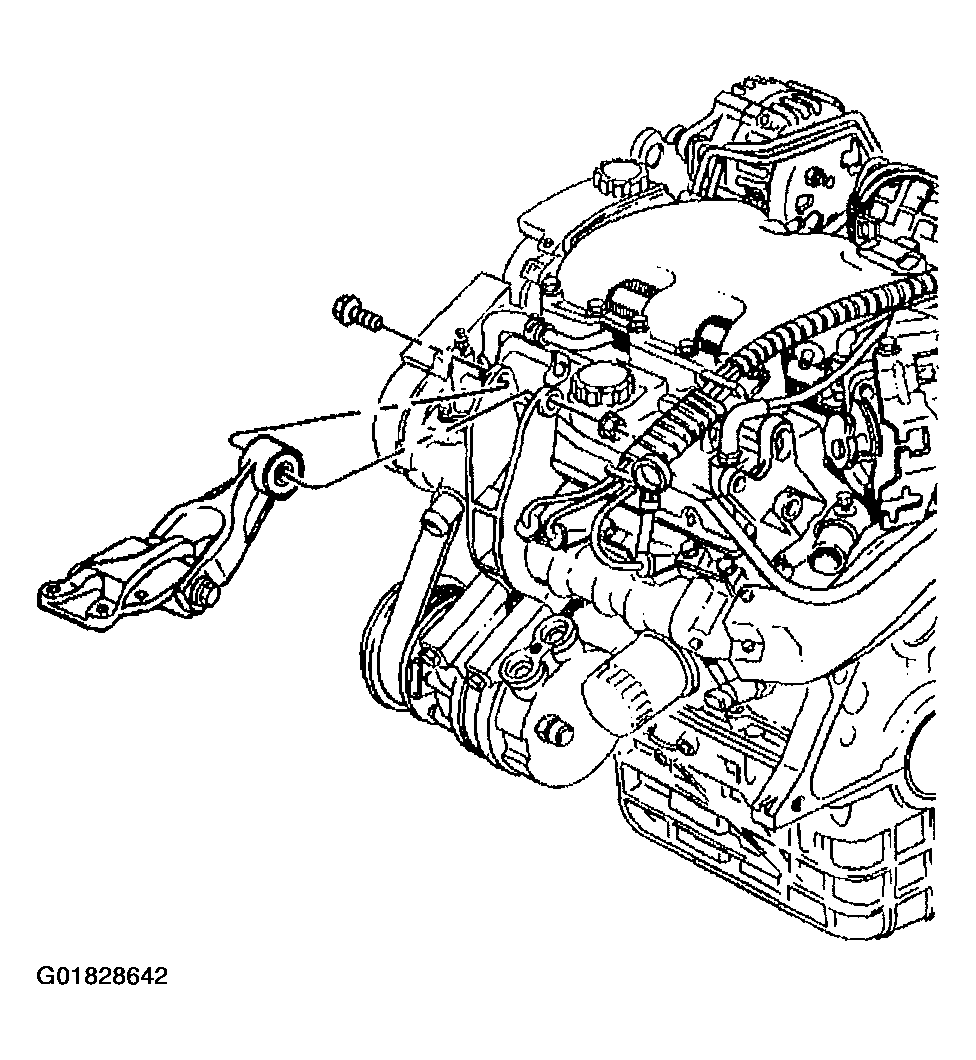

    Fig 1: Right Engine Mount Strut Bracket On Engine
    G01828642Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.

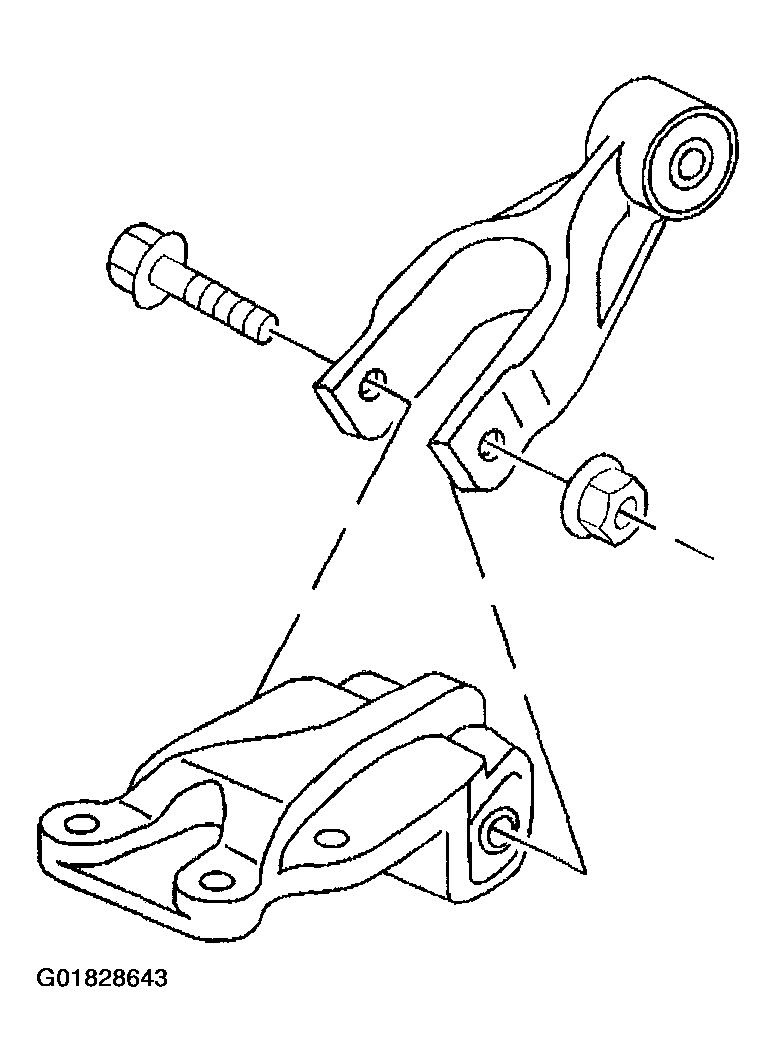

    3. Fig 2: Engine Mount Strut At Engine Mount Strut Bracket On Upper Radiator Support
    G01828643Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
