Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.
    NOTE: Refer to FASTENER NOTICE .

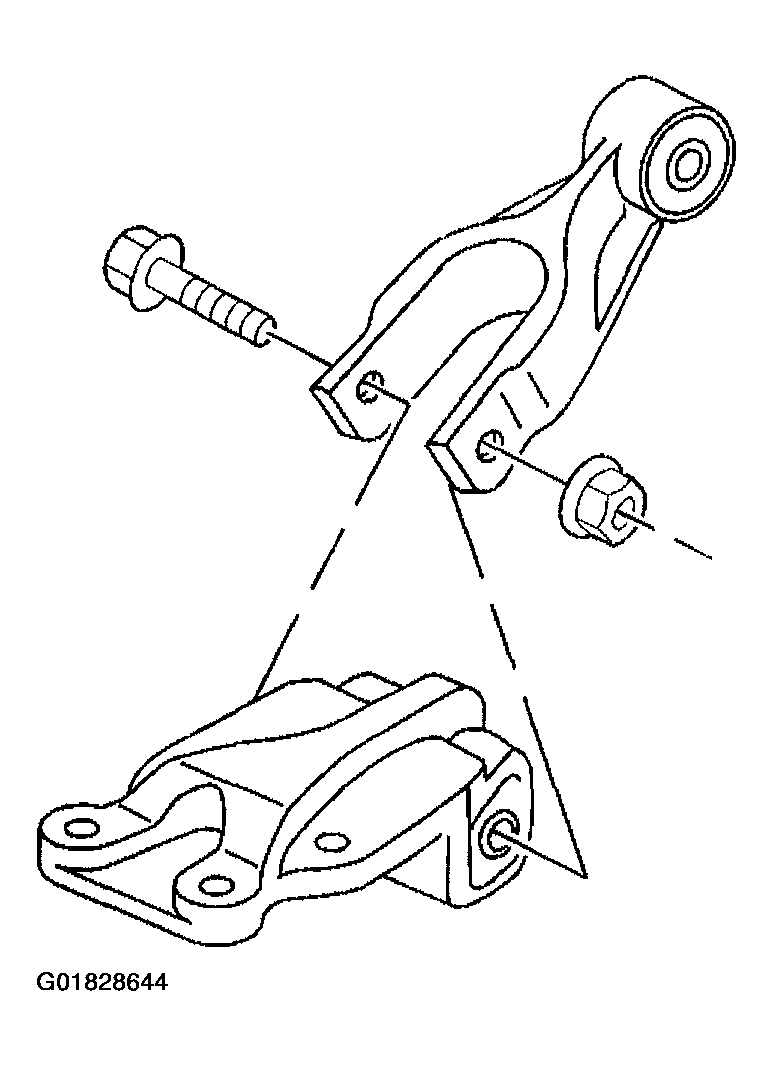

    2. Fig 1: Engine Mount Strut At Engine Mount Strut Bracket On Upper Radiator Support
    G01828644Courtesy of GENERAL MOTORS CORP.
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.

    Tighten

    Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

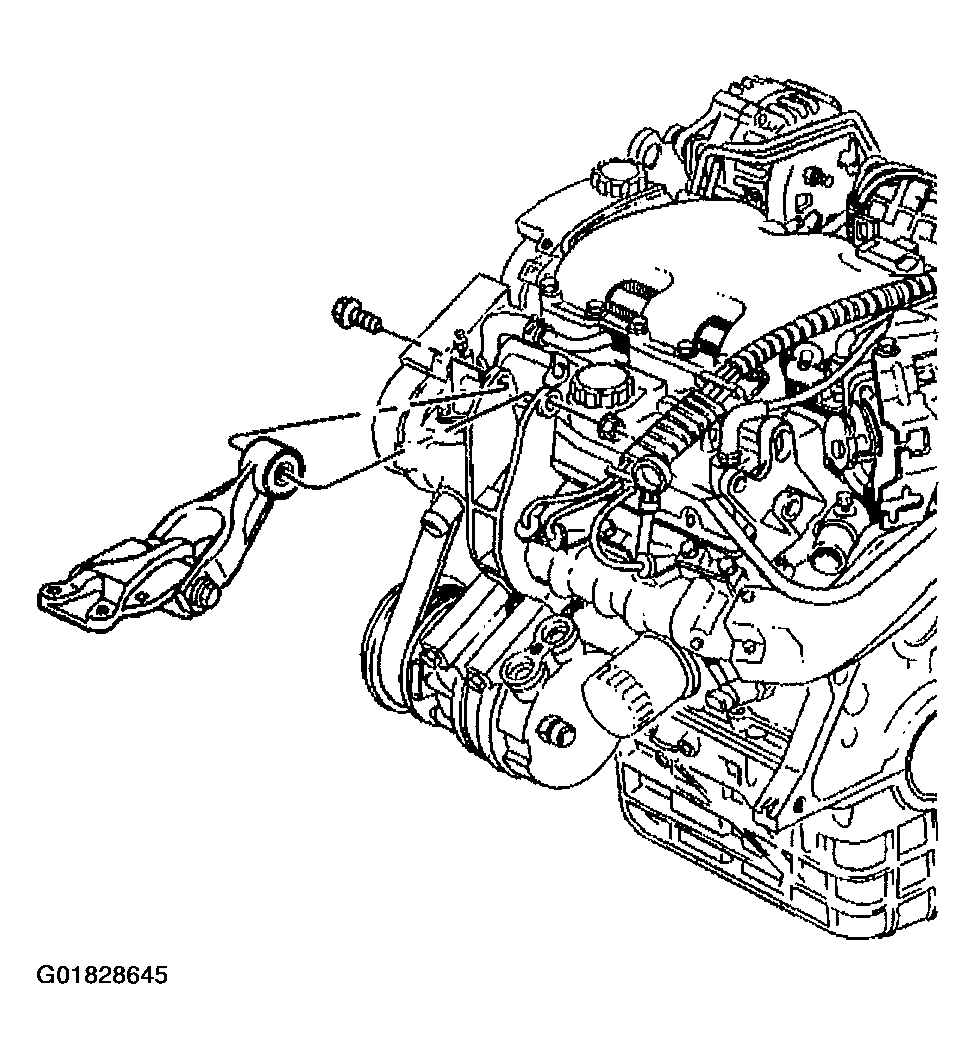

    3. Fig 2: Right Engine Mount Strut Bracket On Engine
    G01828645Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the engine mount strut at the right engine mount strut bracket on the engine.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).
