Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut from the engine mount strut bracket at the upper radiator support. Refer to ENGINE MOUNT STRUT REPLACEMENT - Left  and/or ENGINE MOUNT STRUT REPLACEMENT - Right .

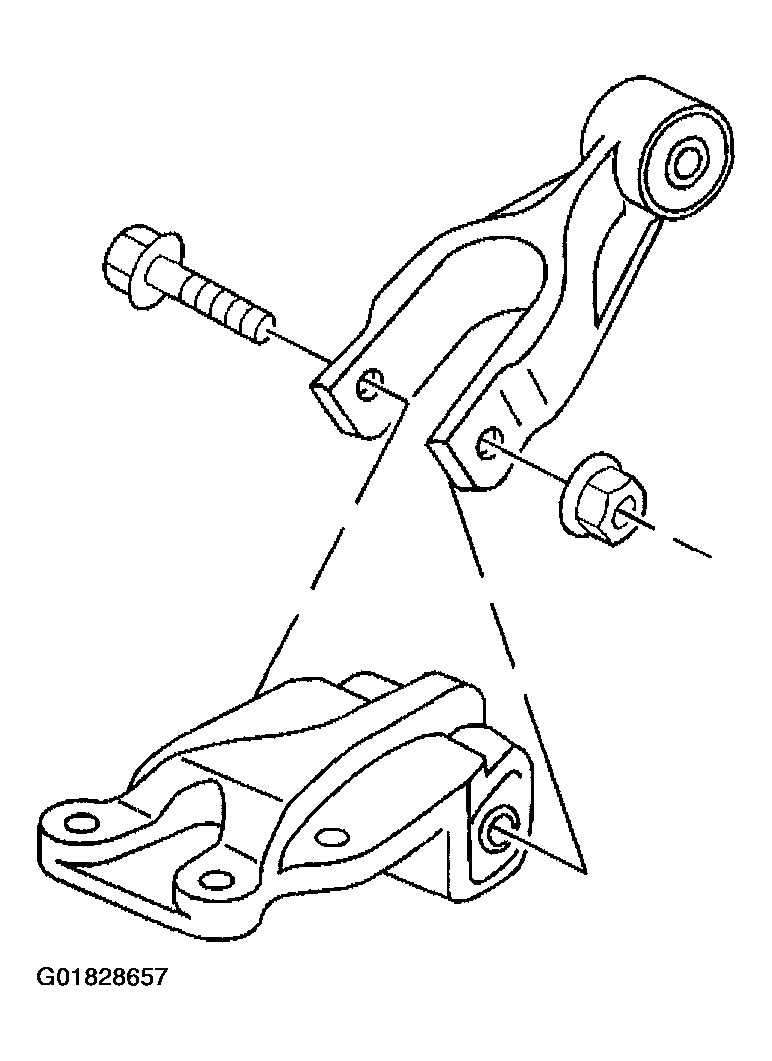

    Fig 1: Engine Mount Strut At Engine Mount Strut Bracket On Upper Radiator Support
    G01828657Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine mount strut bracket bolts from the engine mount strut bracket.

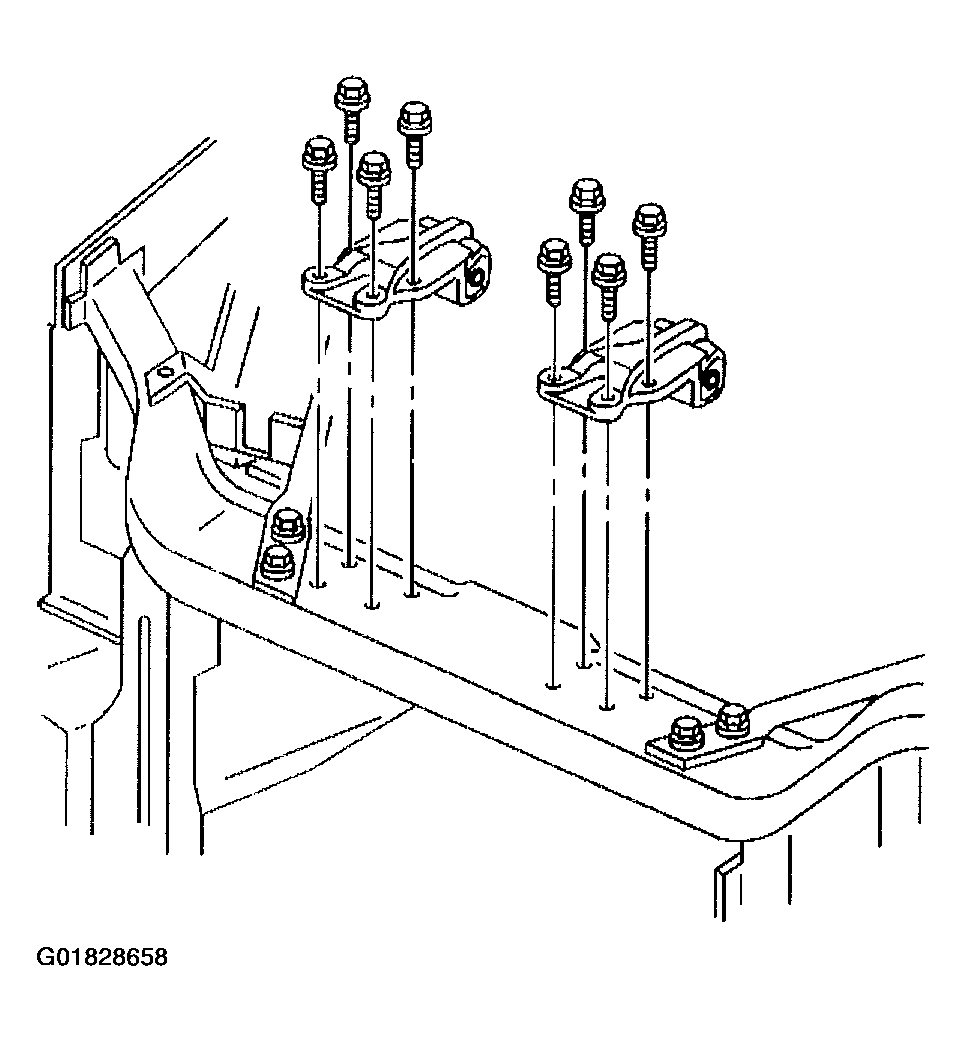

    3. Fig 2: Engine Mount Strut Bracket At Upper Radiator Support
    G01828658Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut bracket from the upper radiator support.
