Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine mount strut bracket over the upper radiator support. Ensure that the engine mount strut bracket and the engine mount strut are aligned to the proper holes of the upper radiator support.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine mount strut bracket bolts to the engine mount strut bracket.

    Tighten

    Tighten the engine mount strut bracket bolts to 26 N.m (19 lb ft).

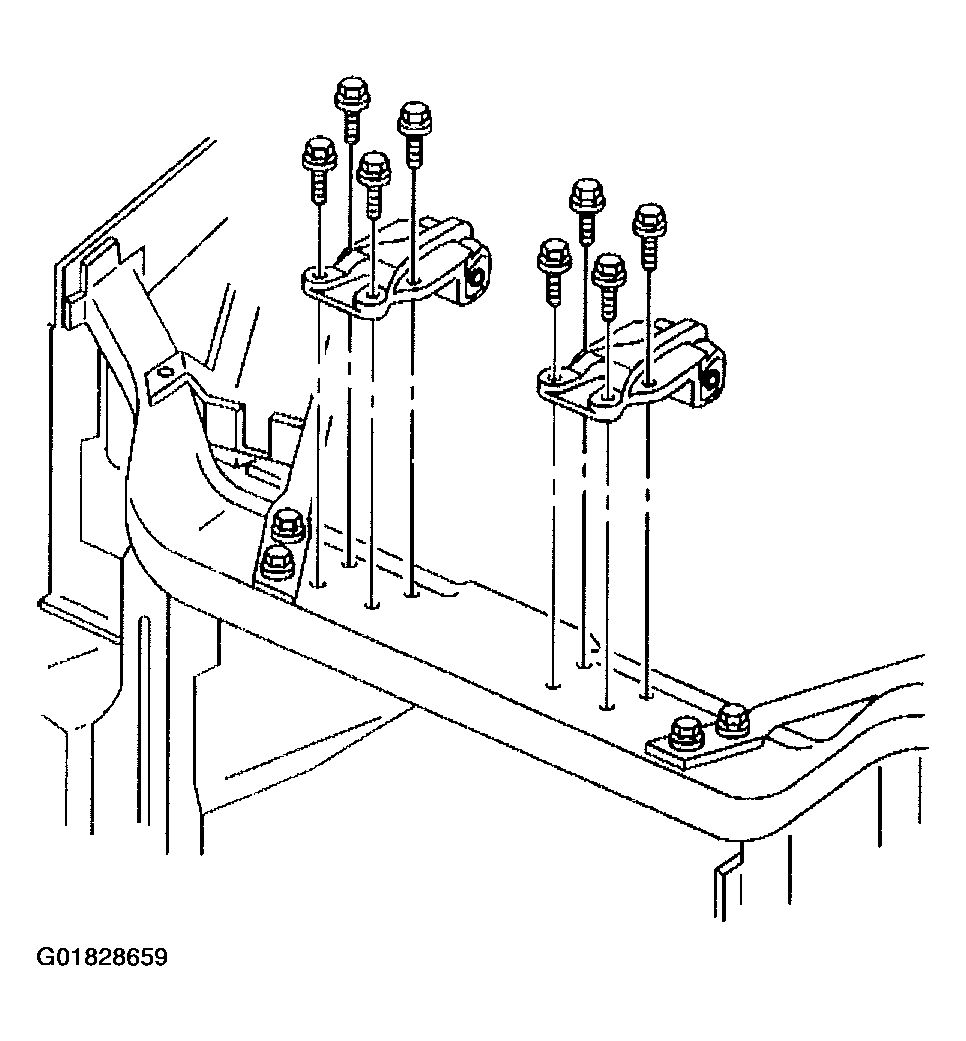

    Fig 1: Engine Mount Strut Bracket At Upper Radiator Support
    G01828659Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount strut to the engine mount strut bracket at the upper radiator support. Refer to ENGINE MOUNT STRUT REPLACEMENT - Left  and/or ENGINE MOUNT STRUT REPLACEMENT - Right .

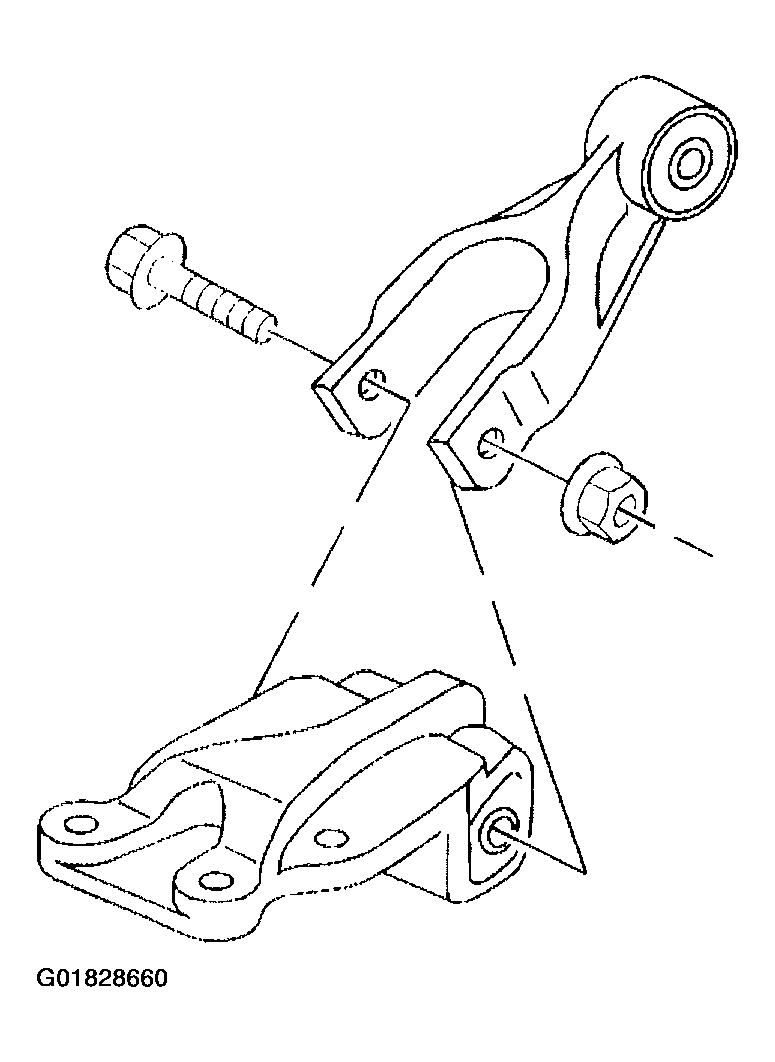

    Fig 2: Engine Mount Strut At Engine Mount Strut Bracket On Upper Radiator Support
    G01828660Courtesy of GENERAL MOTORS CORP.
