Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right engine mount strut from the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - Right .

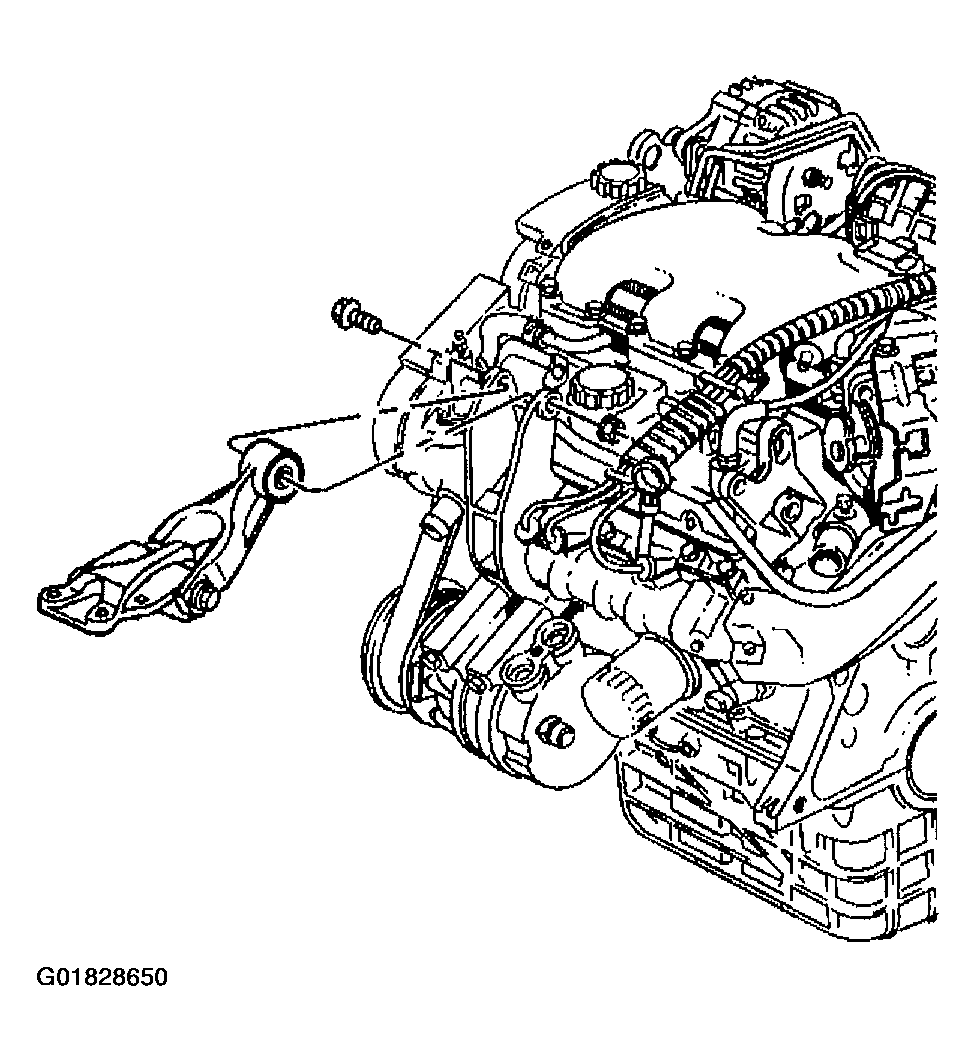

    Fig 1: Right Engine Mount Strut Bracket On Engine
    G01828650Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine oil cooler coolant line bracket bolt.

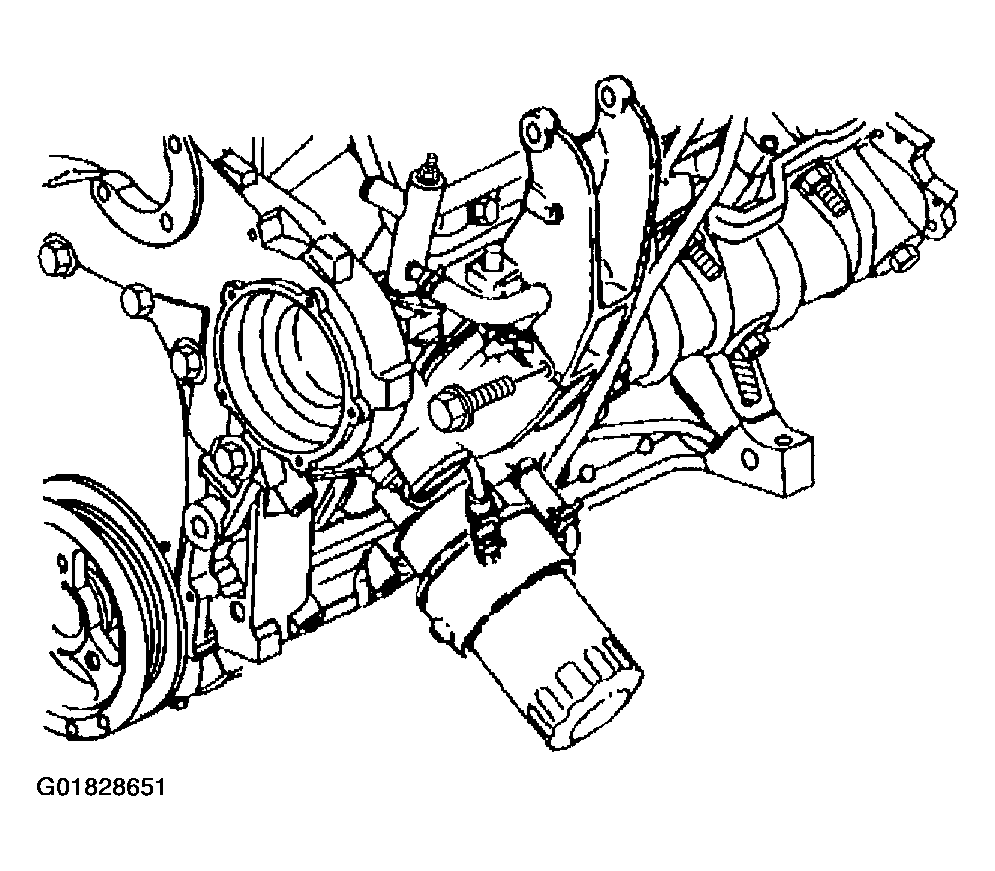

    Fig 2: Engine Oil Cooler Coolant Line Bracket Bolt
    G01828651Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine wiring harness bracket bolt.

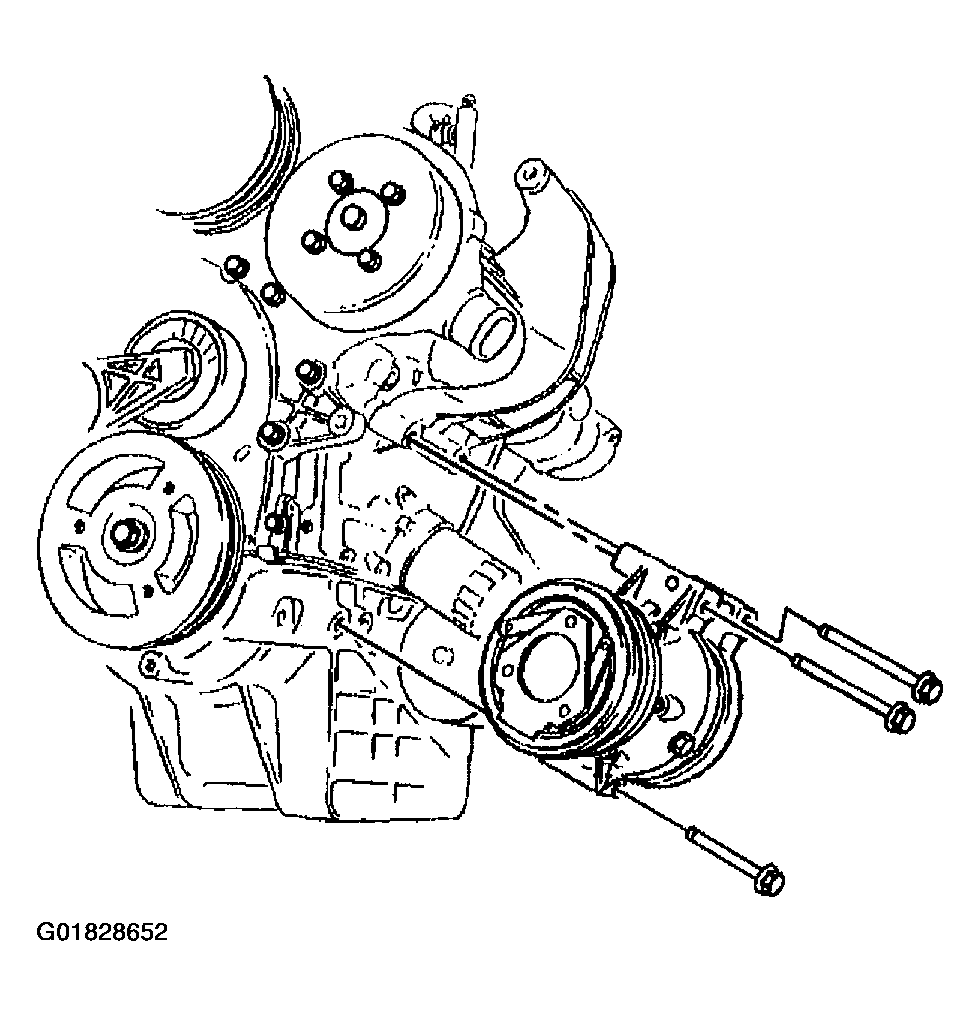

    4. Fig 3: Air Conditioning Compressor
    G01828652Courtesy of GENERAL MOTORS CORP.
  4. Remove the air conditioning compressor mounting bolts.
  5. Remove and set the air conditioning compressor aside.

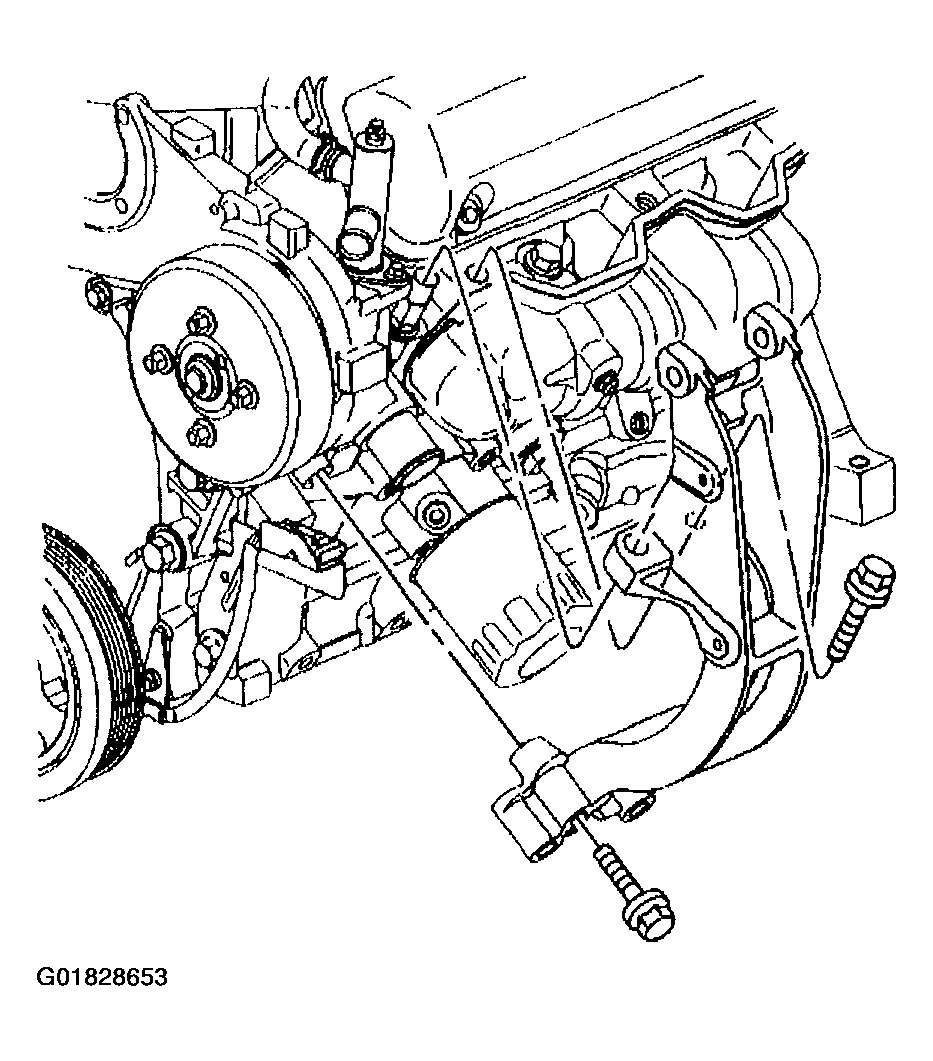

    6. Fig 4: Right Engine Mount Strut Bracket
    G01828653Courtesy of GENERAL MOTORS CORP.
  6. Remove the vertical engine mount strut bracket bolt from the right engine mount strut bracket.
  7. Remove the lower engine mount strut bracket bolt from the right engine mount strut bracket.
  8. Remove the right engine mount strut bracket.
