Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

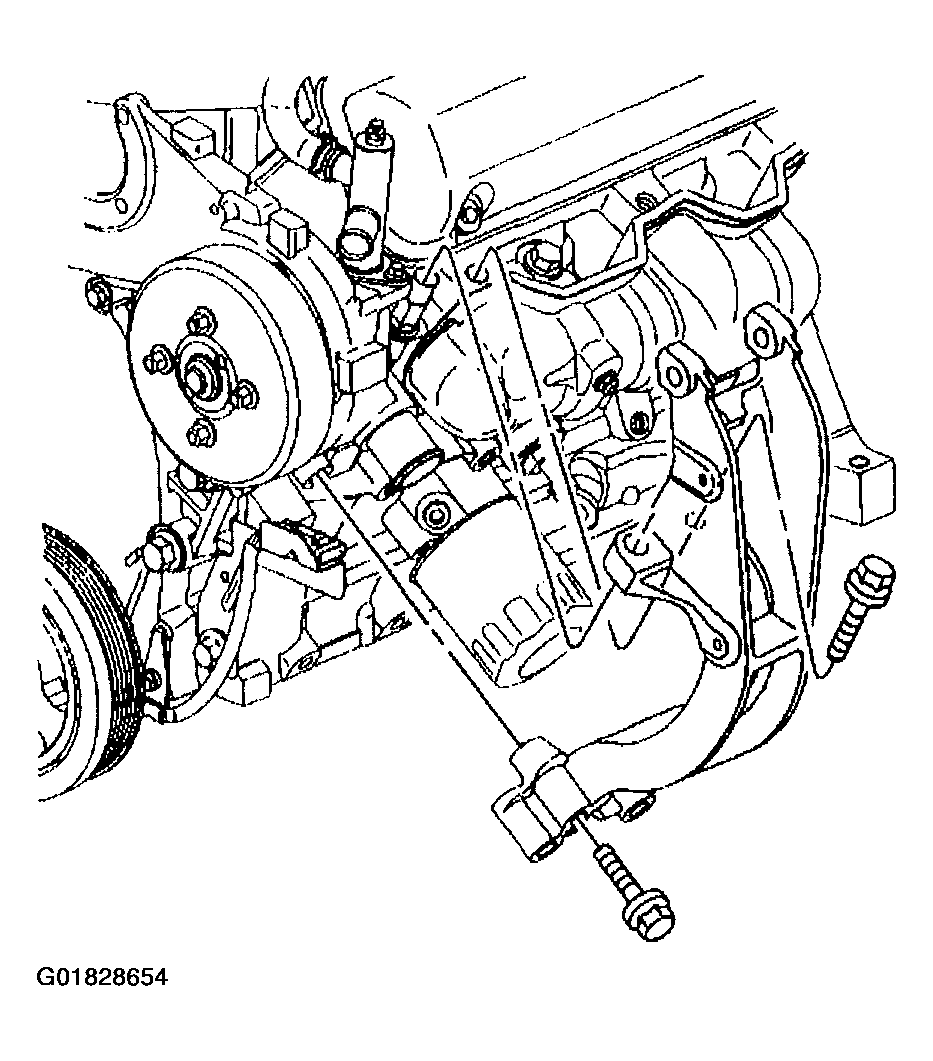

    Fig 1: Right Engine Mount Strut Bracket
    G01828654Courtesy of GENERAL MOTORS CORP.
  1. Position the right engine mount strut bracket over the pin locator.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the lower engine mount strut bracket bolt through the right engine mount strut bracket into the cylinder block.

    Tighten

    Tighten the engine mount strut bracket bolt to 50 N.m (37 lb ft).

  3. Install the vertical engine mount strut bracket bolt through the right engine mount strut bracket to the cylinder head.

    Tighten

    Tighten the engine mount strut bracket bolt to 50 N.m (37 lb ft).

  4. Install the air conditioning compressor. Refer to COMPRESSOR REPLACEMENT .
  5. Install the engine wiring harness bracket bolt.

    Tighten

    Tighten the engine wiring harness bracket bolt to 13 N.m (110 lb in).

  6. Install the engine oil cooler coolant line bracket bolt.

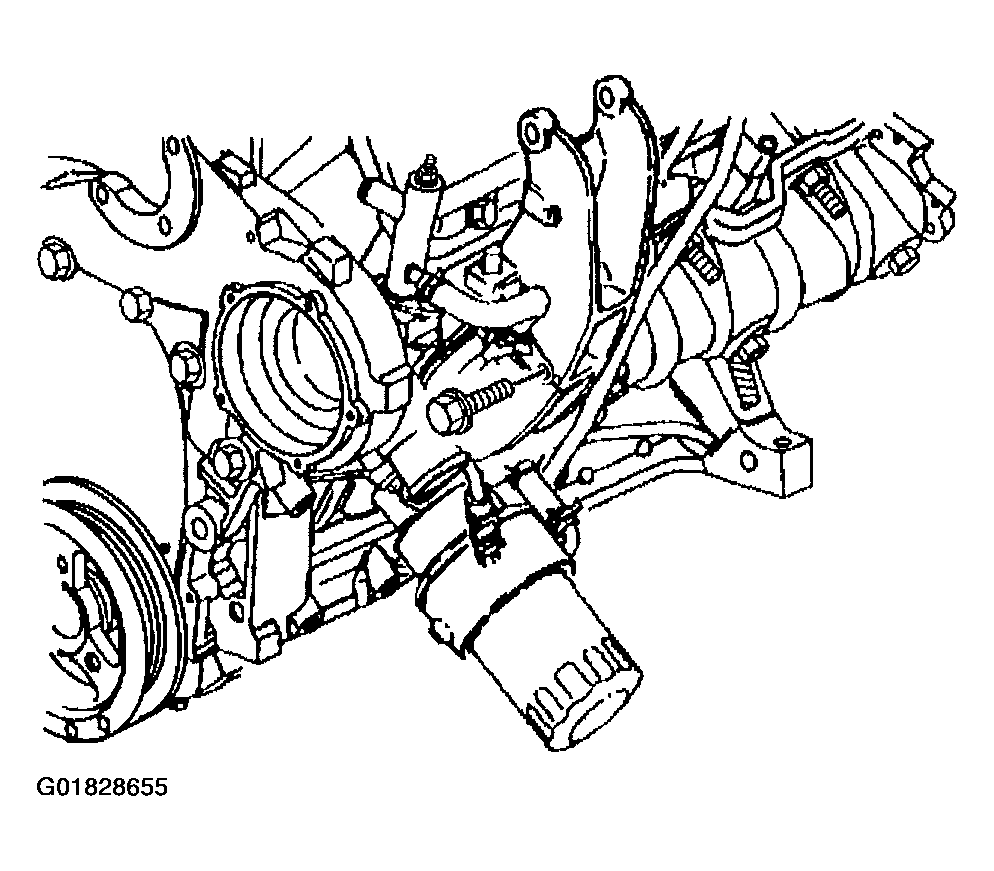

    Fig 2: Engine Oil Cooler Coolant Line Bracket Bolt
    G01828655Courtesy of GENERAL MOTORS CORP.
  7. Install the right engine mount strut to the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - Right .

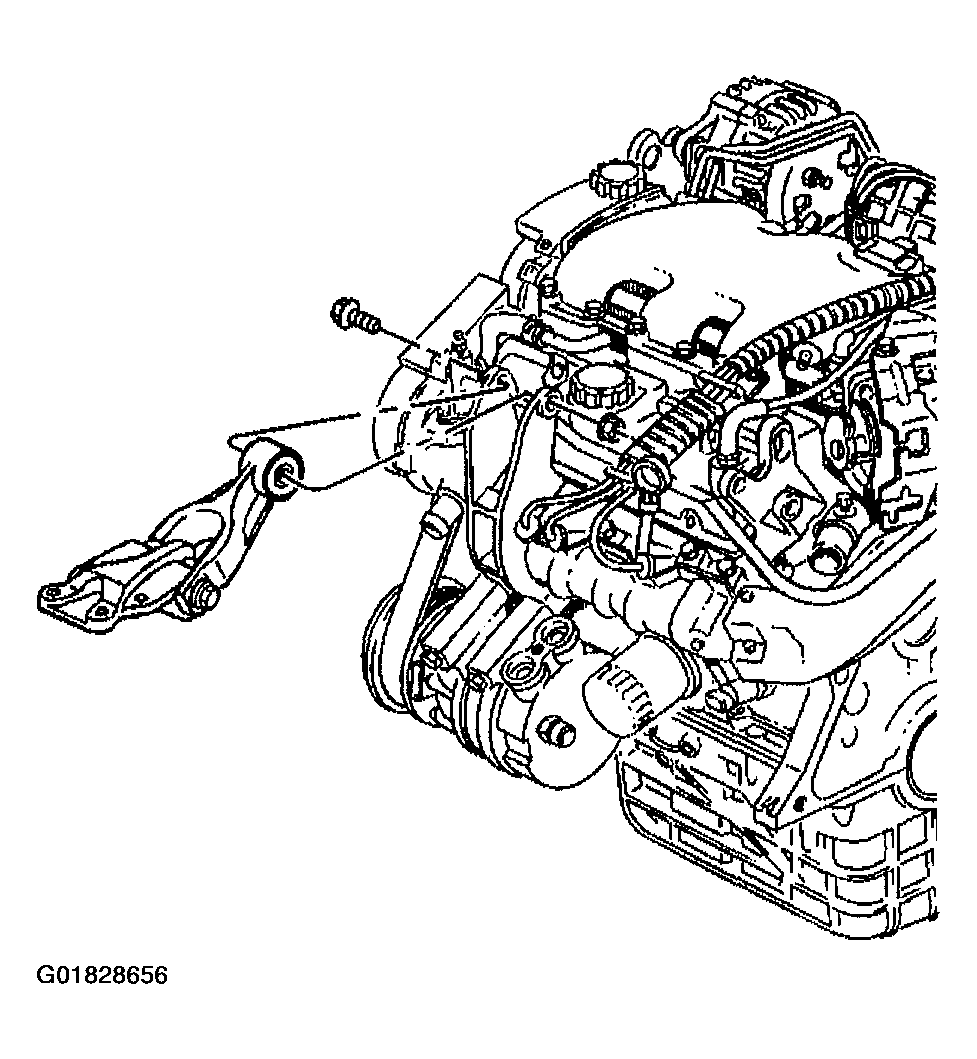

    Fig 3: Right Engine Mount Strut Bracket On Engine
    G01828656Courtesy of GENERAL MOTORS CORP.
