Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

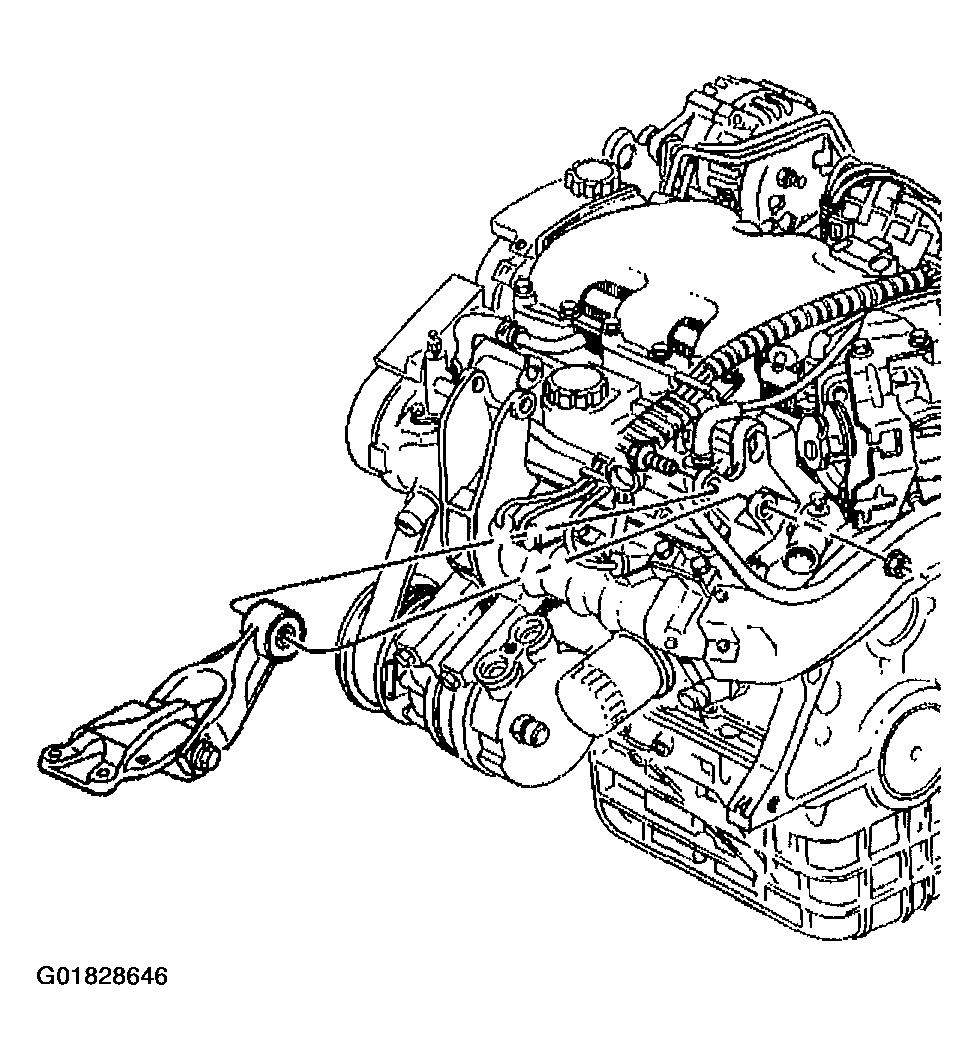

    Fig 1: Left Engine Mount Strut Bracket On Engine
    G01828646Courtesy of GENERAL MOTORS CORP.
  1. Remove the left engine mount strut from the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - Left .
  2. Remove the thermostat housing. Refer to THERMOSTAT REPLACEMENT .

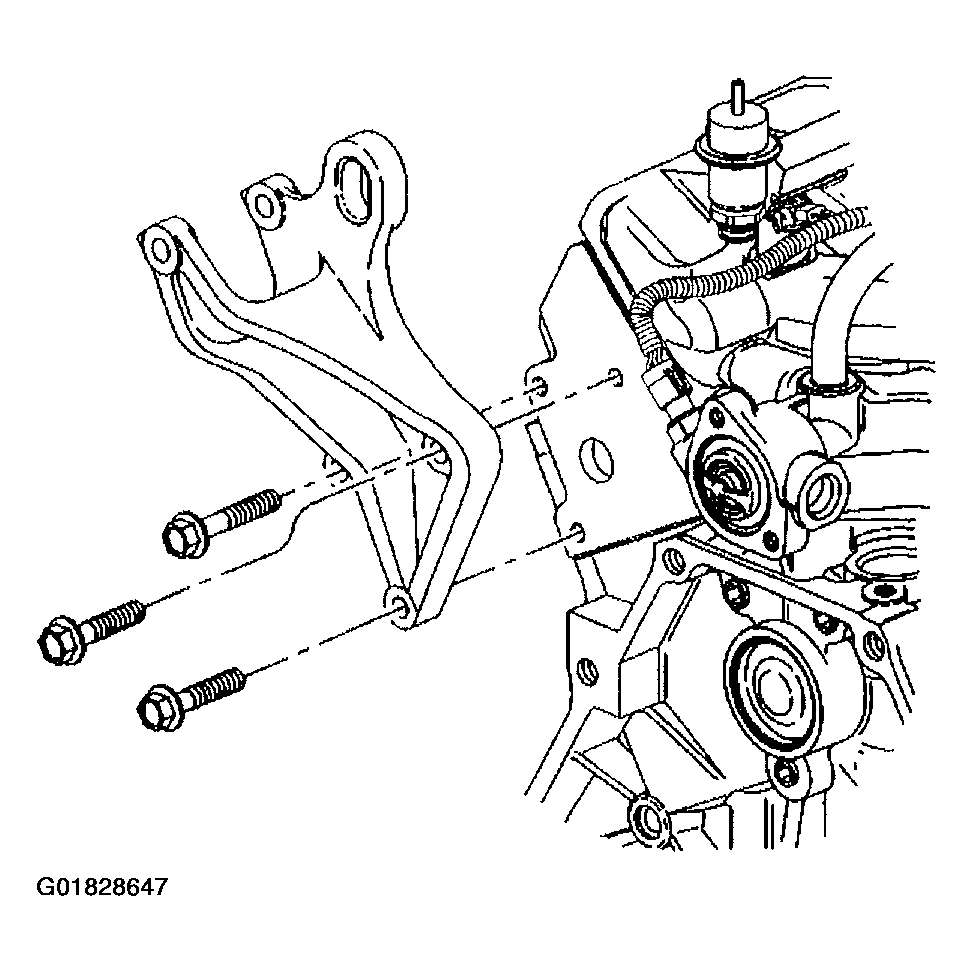

    3. Fig 2: Left Engine Mount Strut Bracket To Cylinder Head
    G01828647Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut bracket bolts from the left engine mount strut bracket to the cylinder head.
  4. Remove the left engine mount strut bracket.
