Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, install the coolant pump to the engine front cover. Refer to WATER PUMP REPLACEMENT .
  2. If removed, install the crankshaft position sensor to the engine front cover. Refer to CRANKSHAFT POSITION SENSORS .

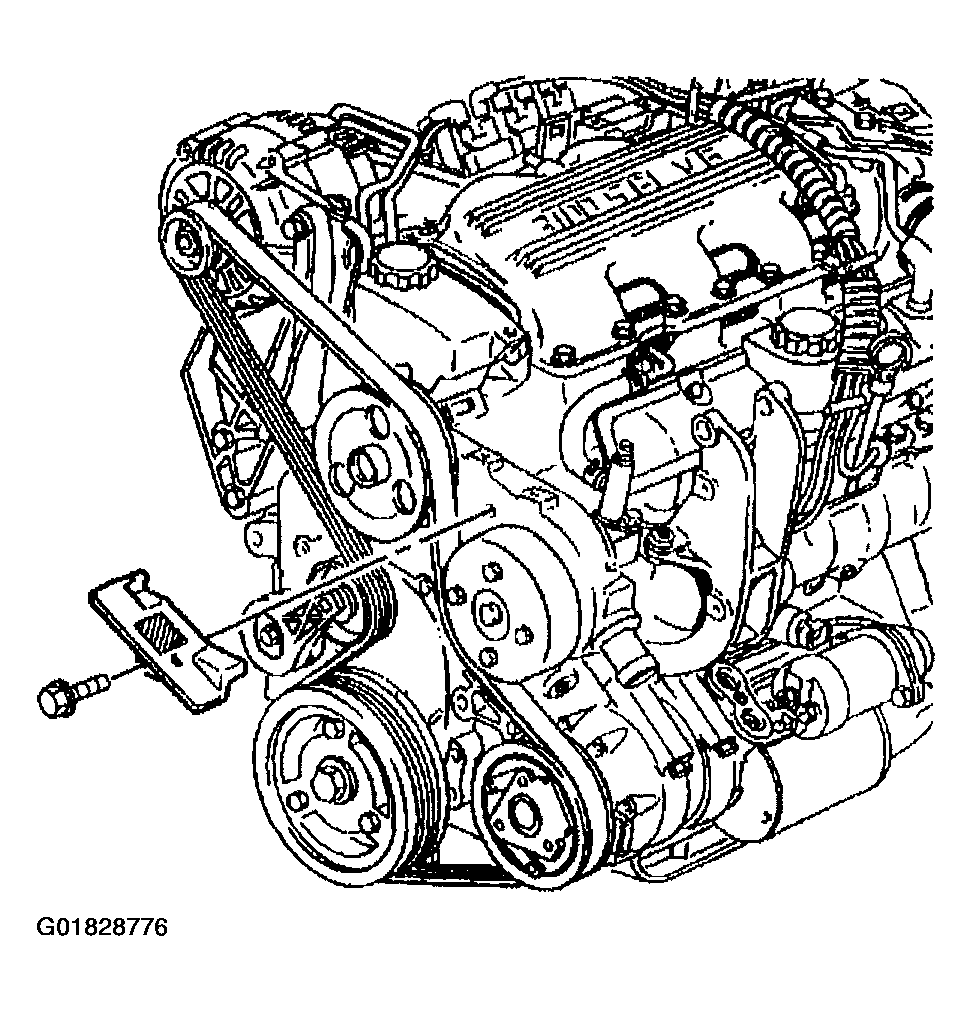

    3. Fig 1: Drive Belt Shield
    G01828776Courtesy of GENERAL MOTORS CORP.
  3. If removed, install the drive belt shield.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the drive belt shield bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

    5. Fig 2: Engine Front Cover Gasket
    G01828777Courtesy of GENERAL MOTORS CORP.
  5. Install the engine front cover gasket.
  6. Apply sealer GM P/N 12346004 or the equivalent to both sides of the lower tabs of the engine front cover gasket.

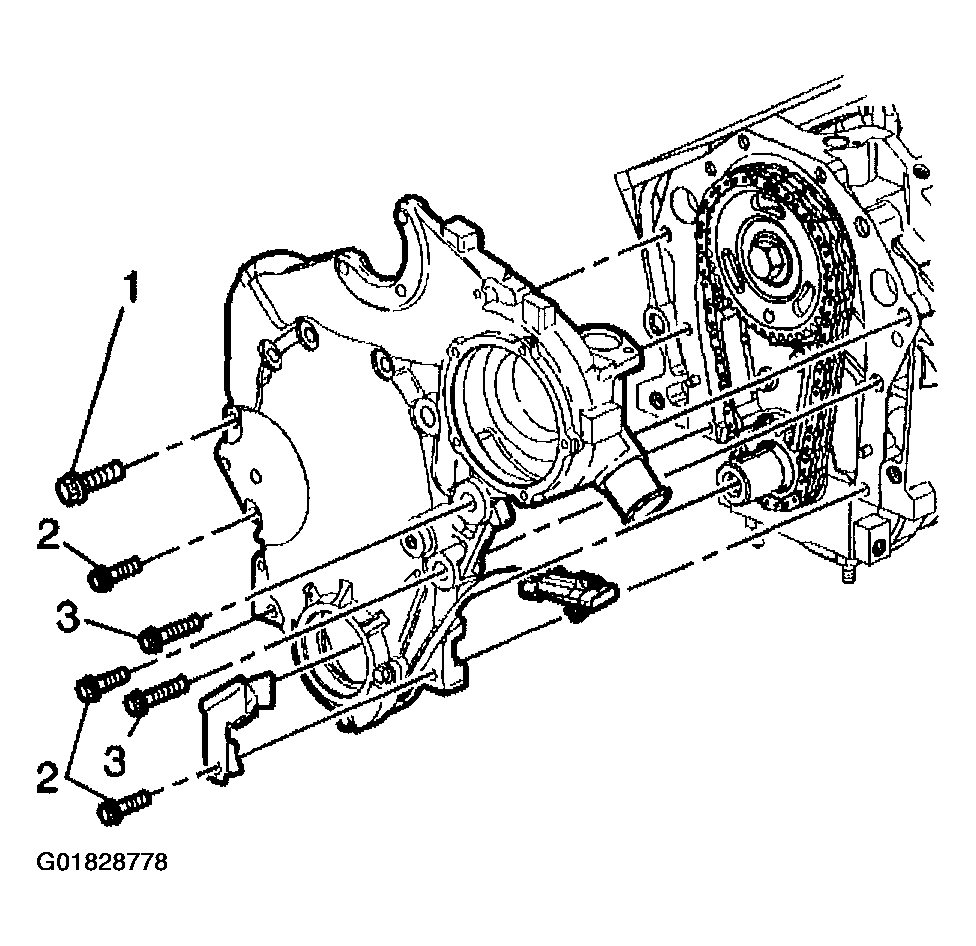

    7. Fig 3: Engine Front Cover
    G01828778Courtesy of GENERAL MOTORS CORP.
  7. Install the engine front cover.
    NOTE: Refer to FASTENER NOTICE .
  8. Install the engine front cover bolts (3).

    Tighten

    Tighten the bolts (3) to 55 N.m (41 lb ft).

  9. Install the engine front cover bolt (1).

    Tighten

    Tighten the bolt (1) to 47 N.m (35 lb ft).

  10. Install the engine front cover bolts (2).

    Tighten

    Tighten the bolts (2) to 21 N.m (16 lb ft).

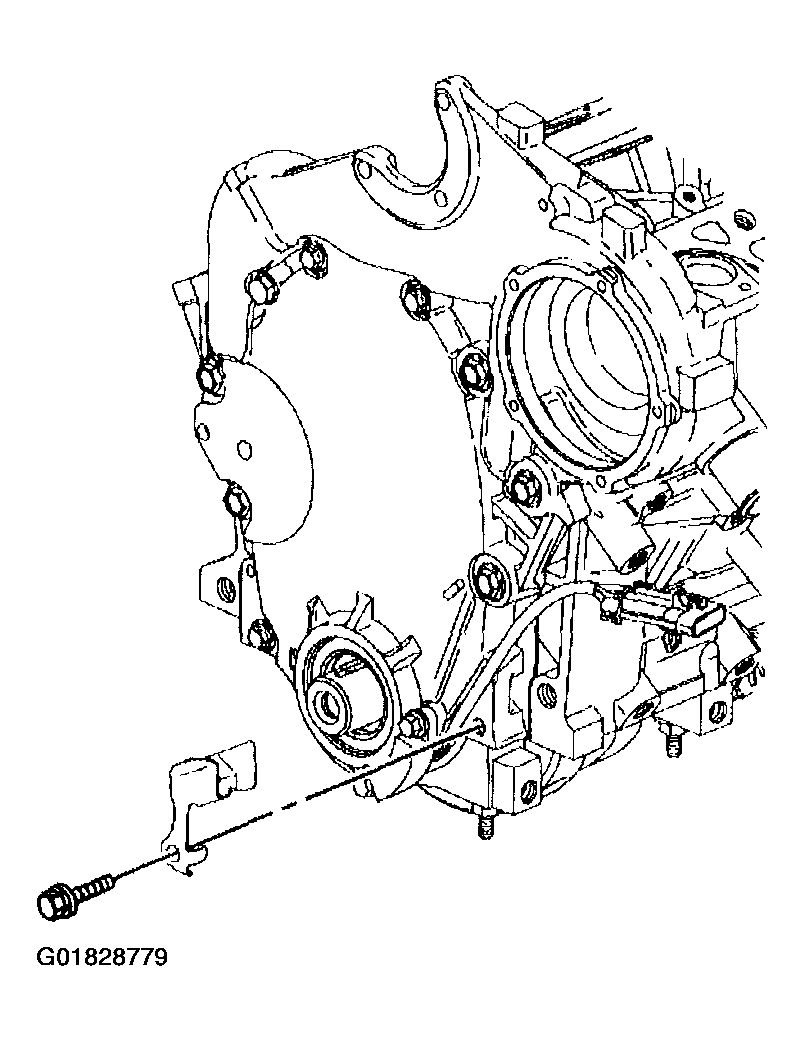

    11. Fig 4: Lower Crankshaft Position Sensor Wiring Harness Bracket
    G01828779Courtesy of GENERAL MOTORS CORP.
  11. Install the lower crankshaft position sensor wiring harness bracket to the engine front cover

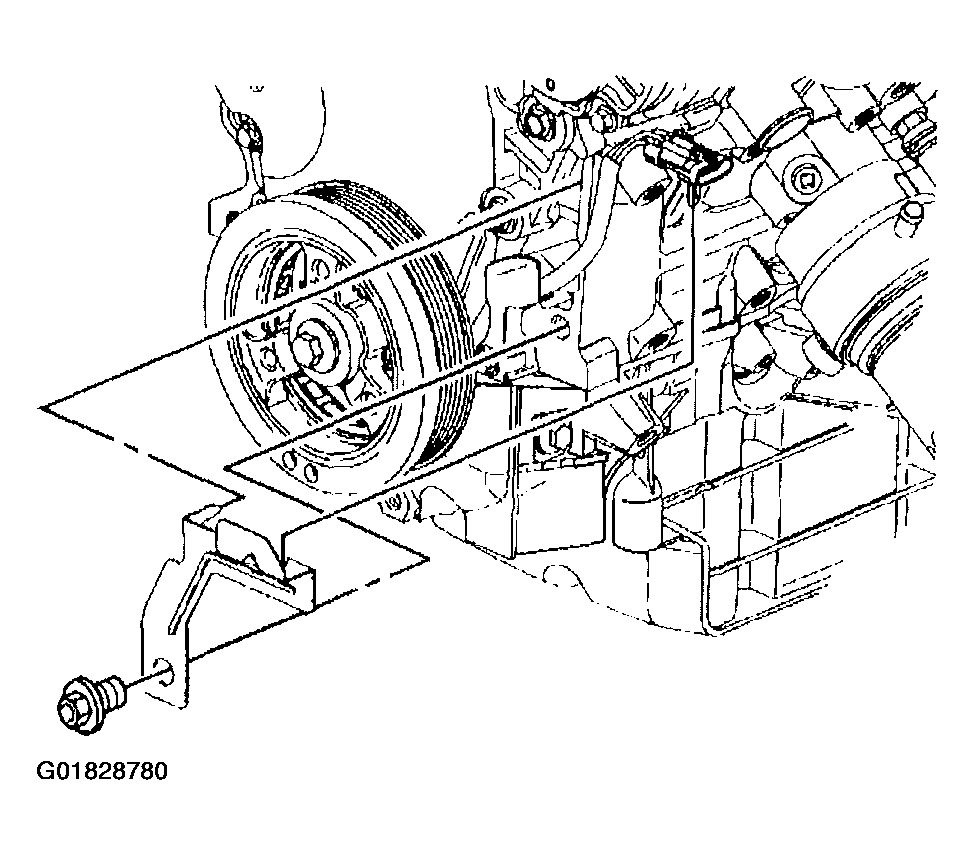

    12. Fig 5: Upper Crankshaft Position Sensor Wiring Harness Bracket
    G01828780Courtesy of GENERAL MOTORS CORP.
  12. Install the upper crankshaft position sensor wiring harness bracket to the engine front cover
  13. Install the coolant pump pulley. Refer to WATER PUMP REPLACEMENT .
  14. Connect the radiator outlet hose to the coolant pump. Refer to RADIATOR HOSE REPLACEMENT - OUTLET .
  15. Connect the thermostat bypass pipe to the engine front cover. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT .
  16. Install the power steering pump with lines. Refer to POWER STEERING PUMP REPLACEMENT .
  17. Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  18. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  19. Fill the engine with NEW engine oil. Refer to Engine Oil and Oil Filter Replacement .
  20. Fill the cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .
