Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle. Refer to TRANSMISSION REPLACEMENT (M15) or TRANSMISSION REPLACEMENT (M76) .

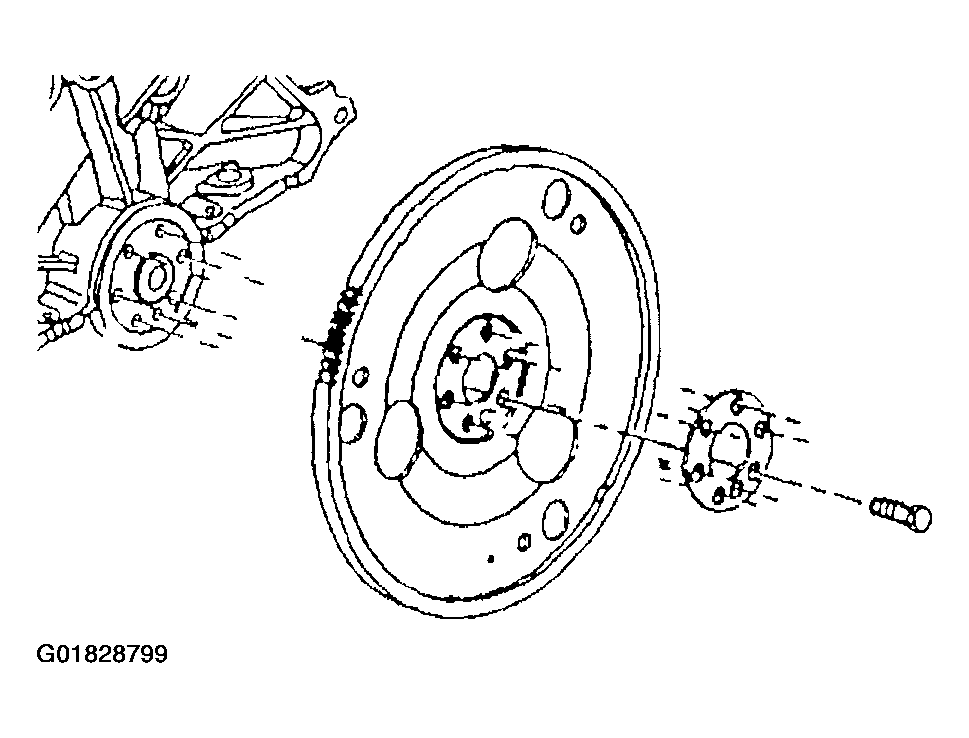

    2. Fig 1: Engine Flywheel
    G01828799Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine flywheel bolts and flywheel.
  3. Clean the engine flywheel bolt threads and bolt holes.
  4. Clean and inspect the engine flywheel. Refer to ENGINE FLYWHEEL CLEANING AND INSPECTION .
