Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .

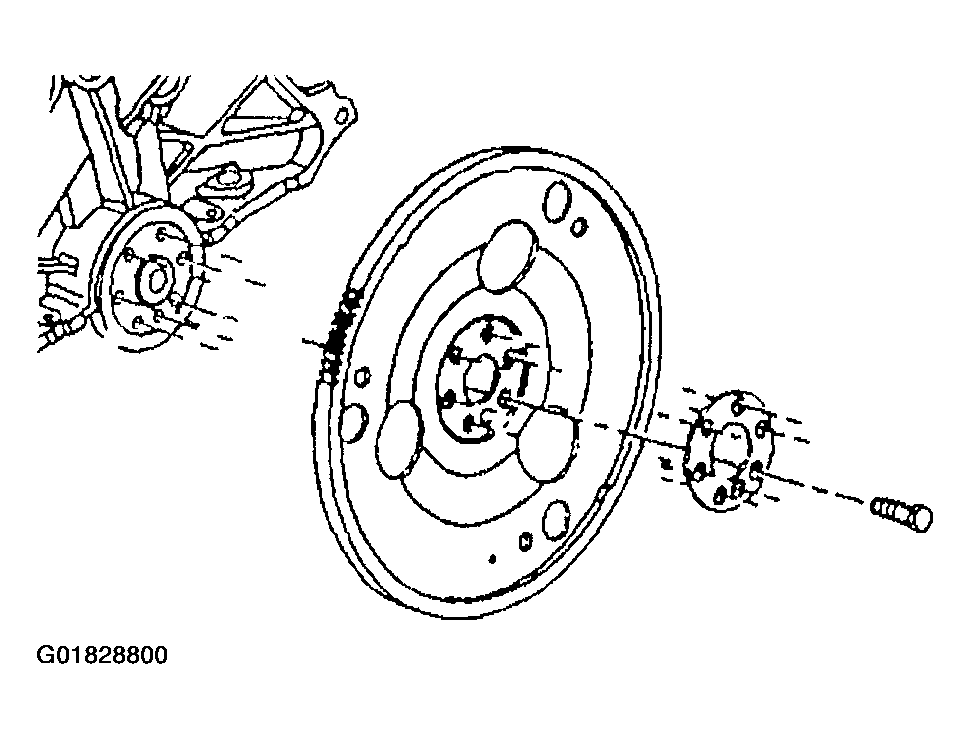

    Fig 1: Engine Flywheel
    G01828800Courtesy of GENERAL MOTORS CORP.
  1. Install the engine flywheel and bolts

    Tighten

    Tighten bolts to 71 N.m (52 lb ft).

  2. Install the automatic transaxle. Refer to TRANSMISSION REPLACEMENT (M15) or TRANSMISSION REPLACEMENT (M76) .
