Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the drive belt tensioner bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to Drive Belt Replacement .

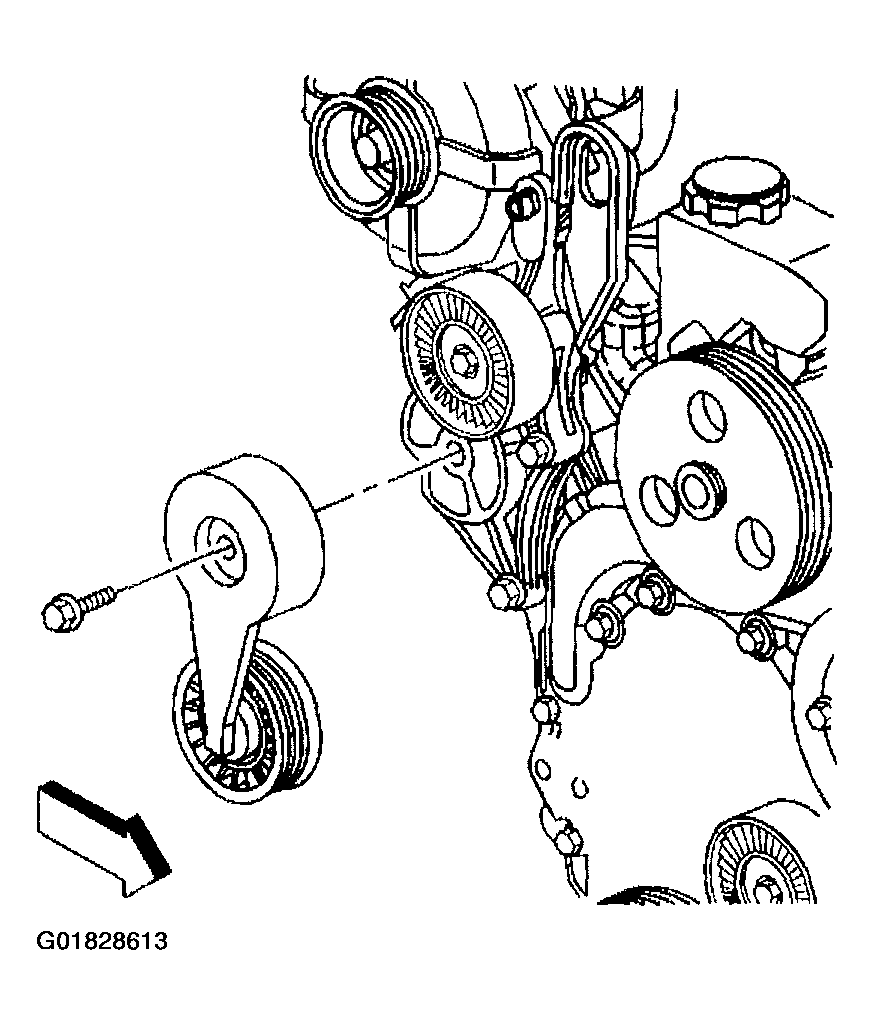

    Fig 1: Drive Belt Tensioner
    G01828613Courtesy of GENERAL MOTORS CORP.
