Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the drive belt tensioner in order to release the tension on the drive belt.
  2. Remove the drive belt.

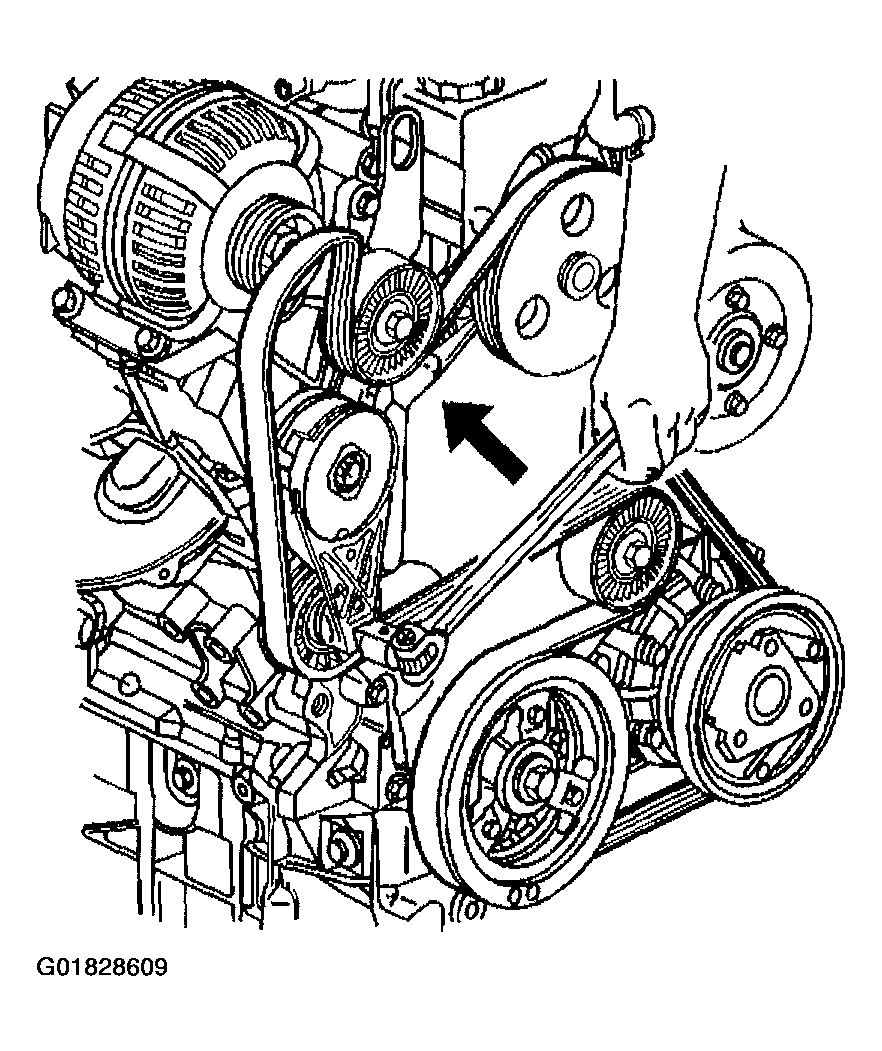

    Fig 1: Drive Belt
    G01828609Courtesy of GENERAL MOTORS CORP.
