Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt to all of the pulleys except the generator pulley.
  2. Rotate the drive belt tensioner in order to install the drive belt over the generator pulley.

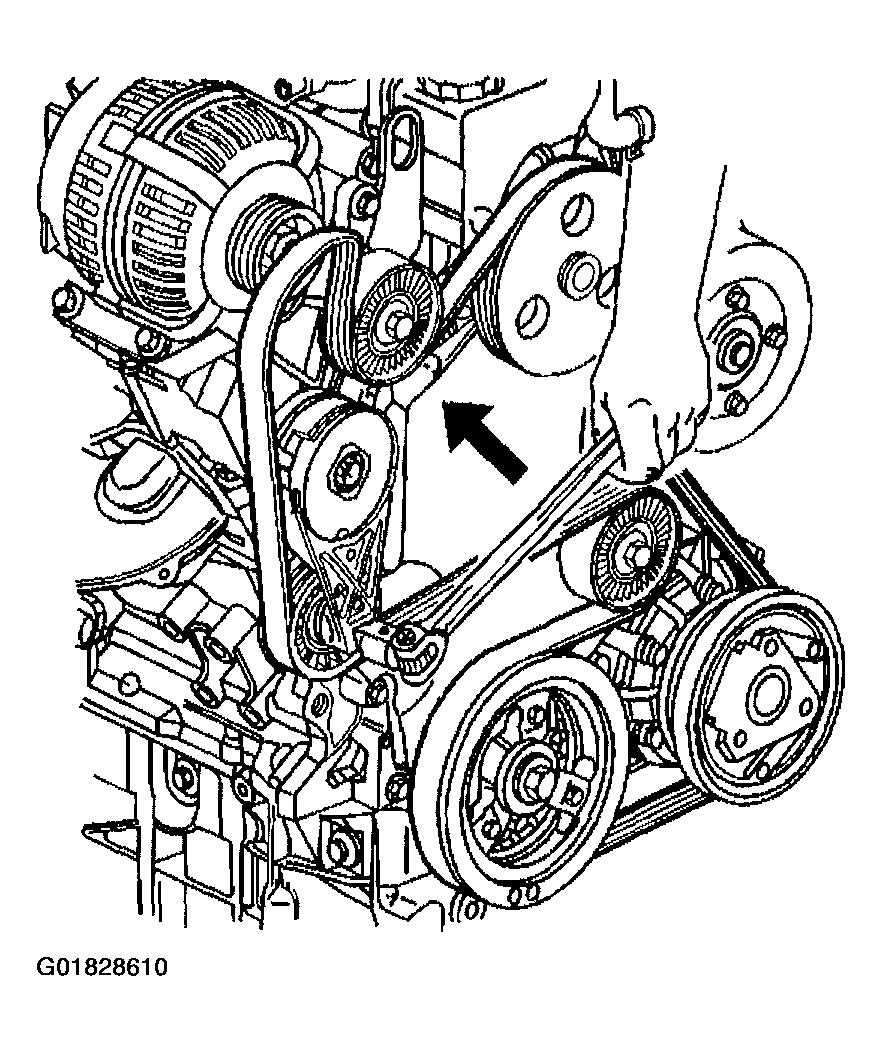

    Fig 1: Drive Belt
    G01828610Courtesy of GENERAL MOTORS CORP.

    Important:  Ensure that the drive belt is aligned into the proper grooves of the accessory drive belt pulleys.

  3. Ensure that the drive belt is properly routed.

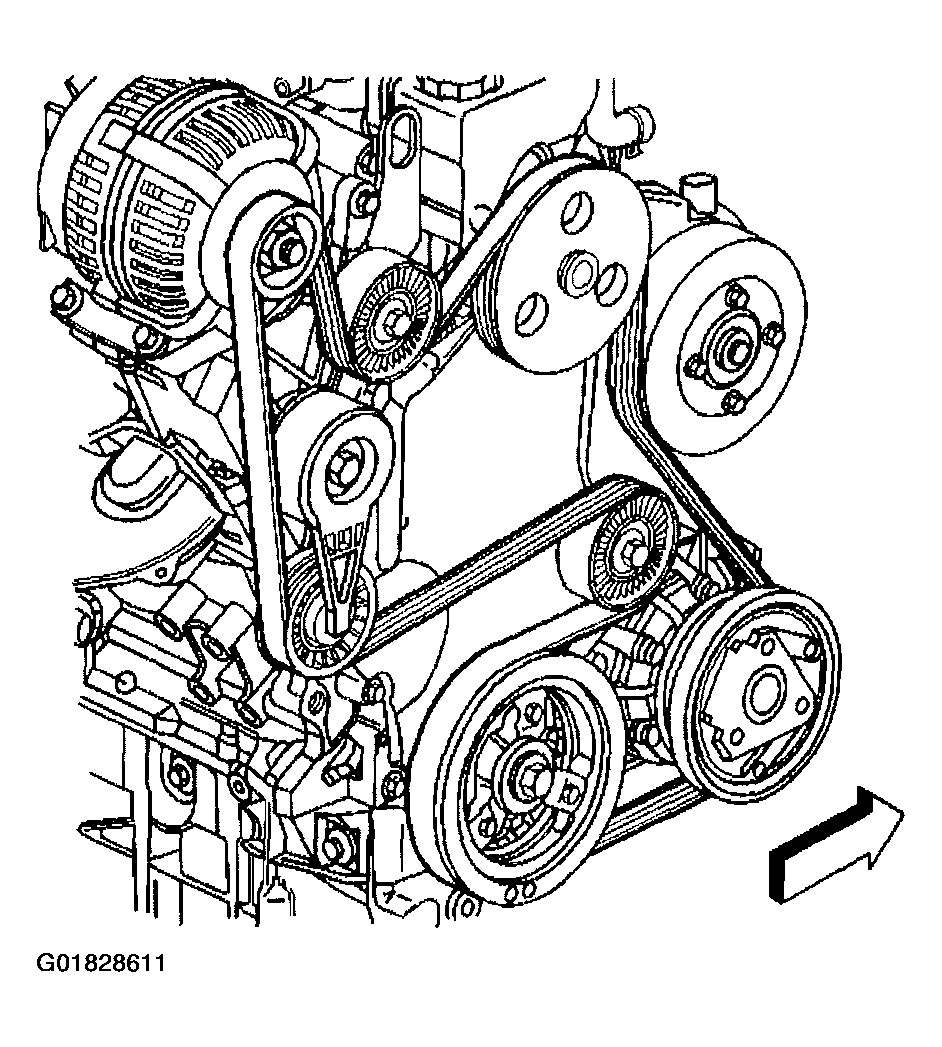

    Fig 2: Routing Drive Belt
    G01828611Courtesy of GENERAL MOTORS CORP.
