Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the lower drive belt idler pulley.

    Tighten

    Tighten the pulley to 50 N.m (37 lb ft).

  2. Install the drive belt. Refer to Drive Belt Replacement .

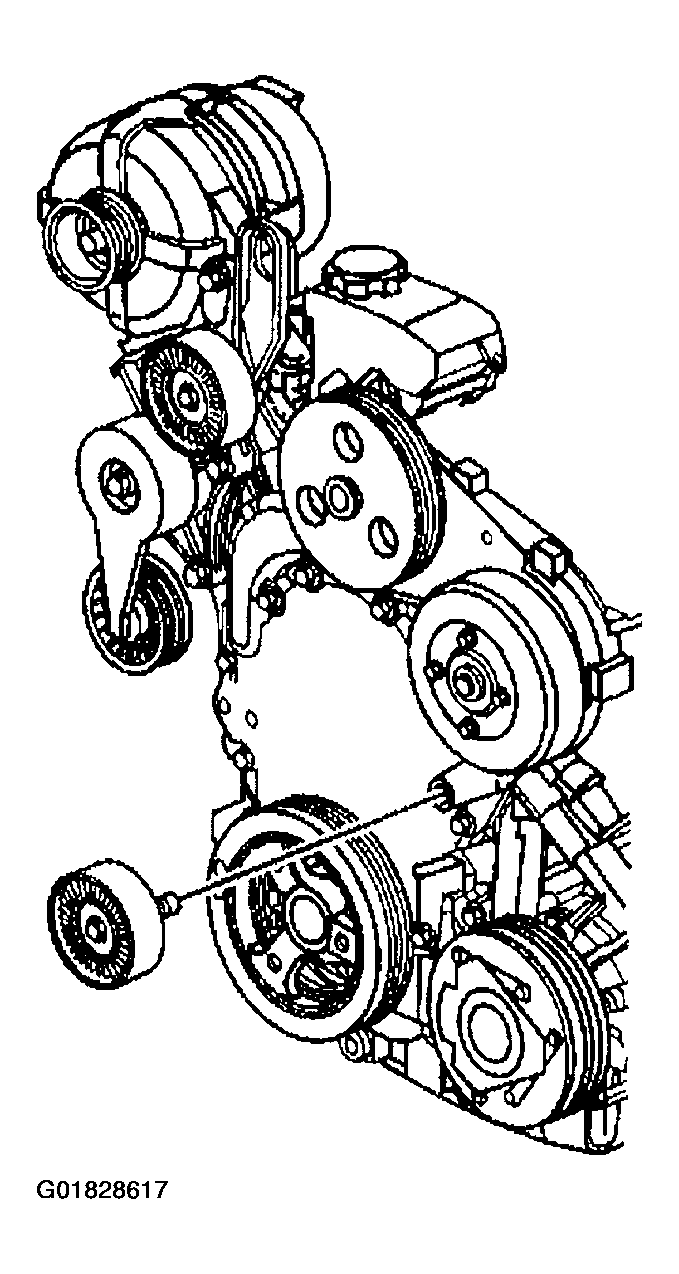

    Fig 1: Lower Drive Belt Idler Pulley
    G01828617Courtesy of GENERAL MOTORS CORP.
