Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Drain the engine coolant from the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
  3. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  4. Lower the vehicle.
  5. Remove the lower intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - Lower .
  6. Remove the exhaust crosssover pipe. Refer to EXHAUST CROSSOVER PIPE REPLACEMENT .
  7. Remove the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT .
  8. Remove the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT BRACKET REPLACEMENT - Right .
  9. Remove the oil level indicator tube. Refer to Oil Level Indicator and Tube Replacement .
  10. Remove the engine left side spark plug wires from the spark plugs. Refer to SPARK PLUGS .
  11. Remove the engine left side spark plugs. Refer to SPARK PLUGS .
  12. Remove the engine left side exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - LEFT .

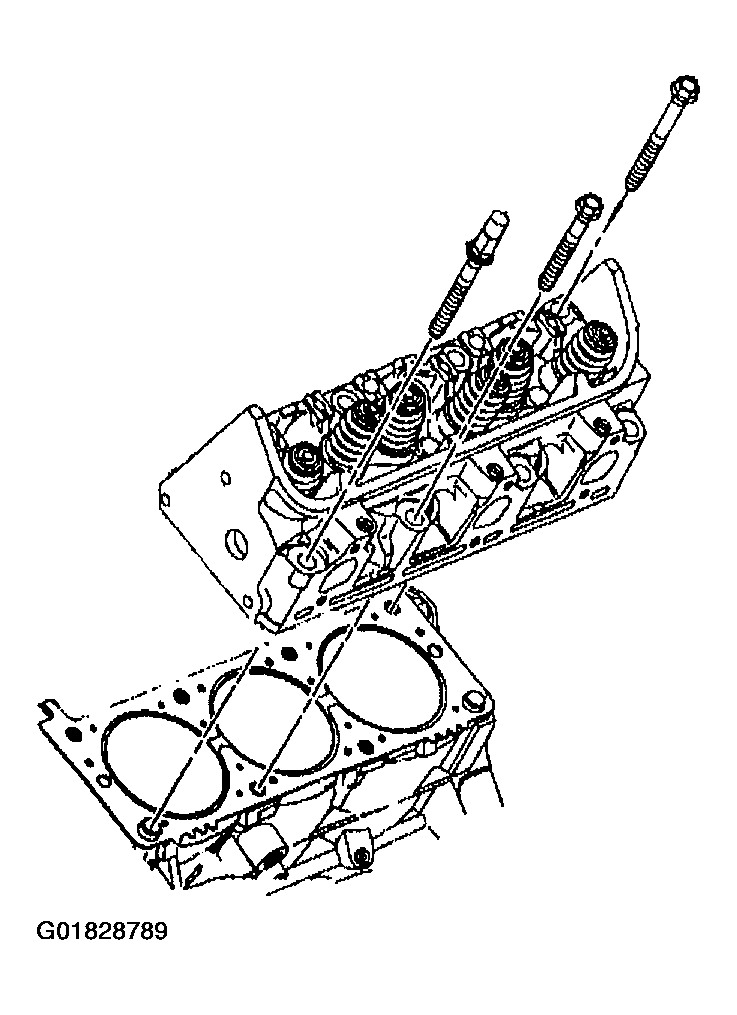

    13. Fig 1: Cylinder Head
    G01828789Courtesy of GENERAL MOTORS CORP.
  13. Remove and discard the cylinder head bolts.
  14. Remove the cylinder head.

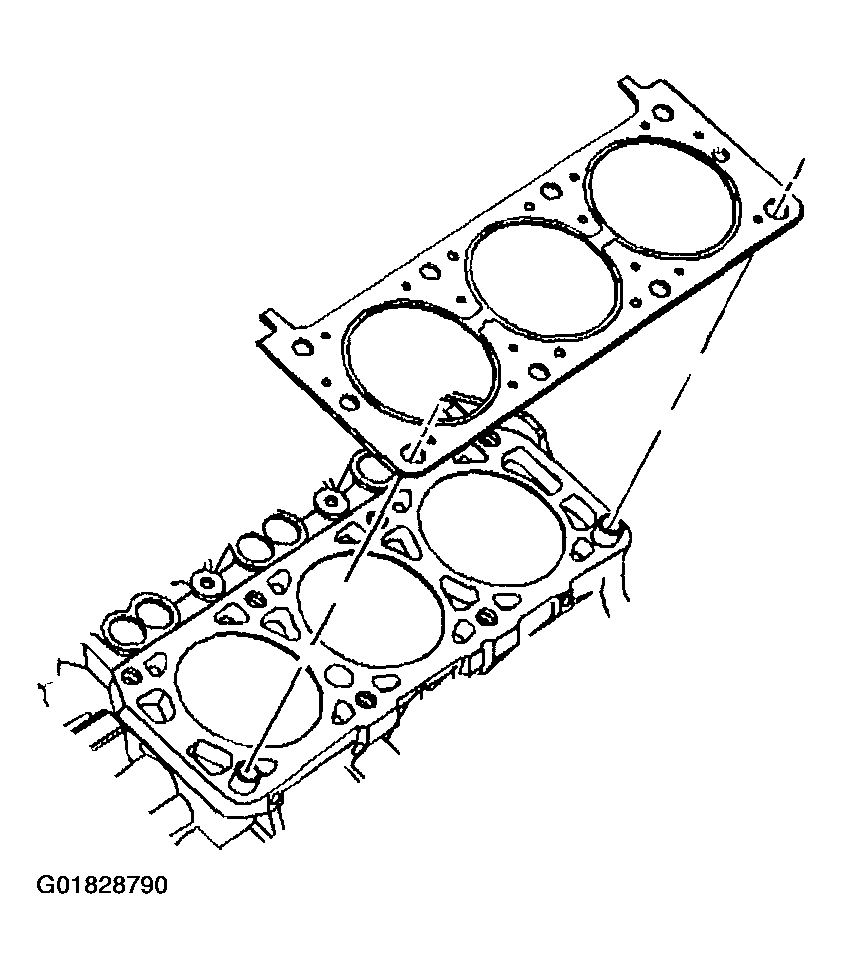

    15. Fig 2: Cylinder Head Gasket
    G01828790Courtesy of GENERAL MOTORS CORP.
  15. Remove the cylinder head gasket.
  16. Clean the following areas:
    • The gasket sealing surfaces on the cylinder head, cylinder block, and intake manifolds
    • The cylinder block bolt threads
    • The cylinder head bolts
