Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to Oil Pan Replacement .
  2. Remove the crankshaft oil deflector nuts.
  3. Remove the crankshaft oil deflector.

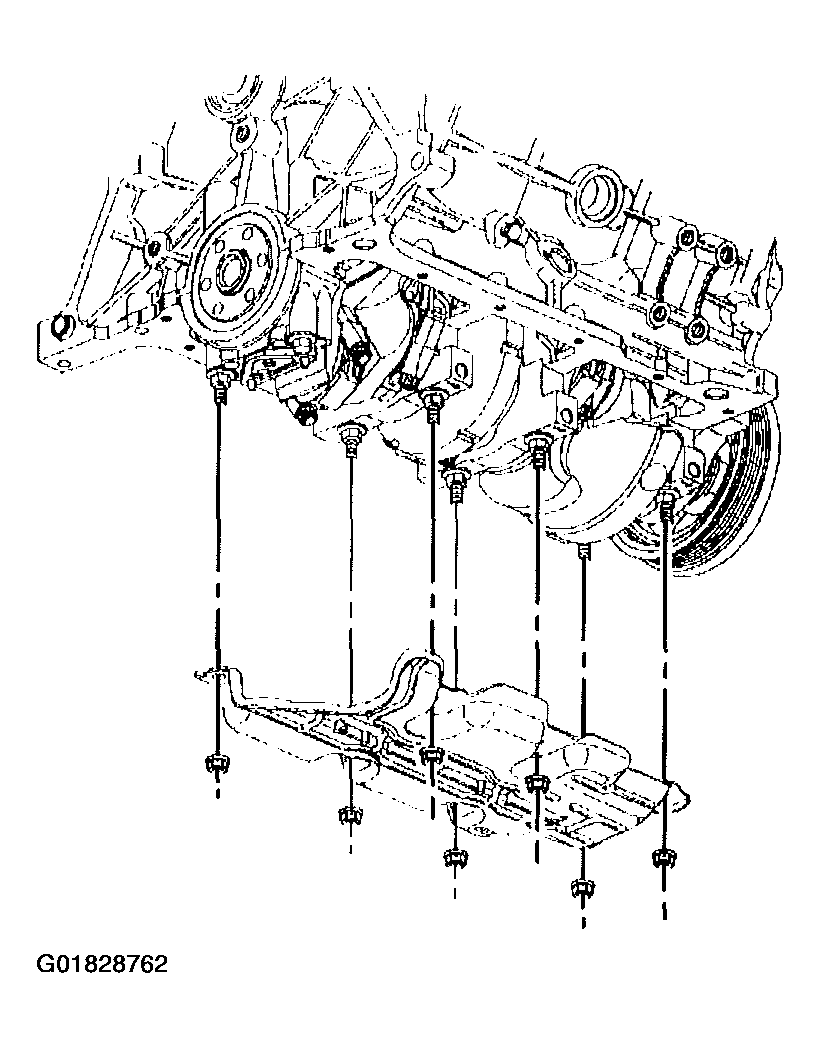

    Fig 1: Crankshaft Oil Deflector
    G01828762Courtesy of GENERAL MOTORS CORP.
