Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

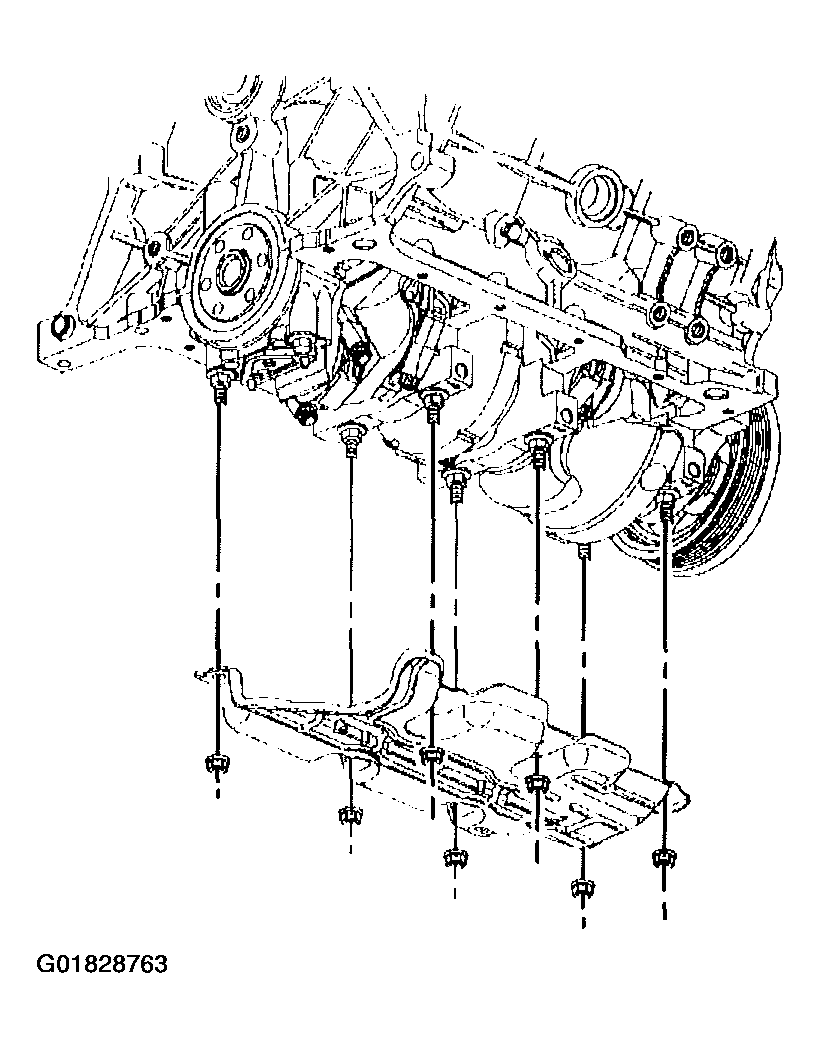

    Fig 1: Crankshaft Oil Deflector
    G01828763Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft oil deflector.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the crankshaft oil deflector nuts.

    Tighten

    Tighten the nuts to 25 N.m (18 lb ft).

  3. Install the oil pan. Refer to Oil Pan Replacement .
