Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the J 35468  and the crankshaft front oil seal with the engine front cover and crankshaft.

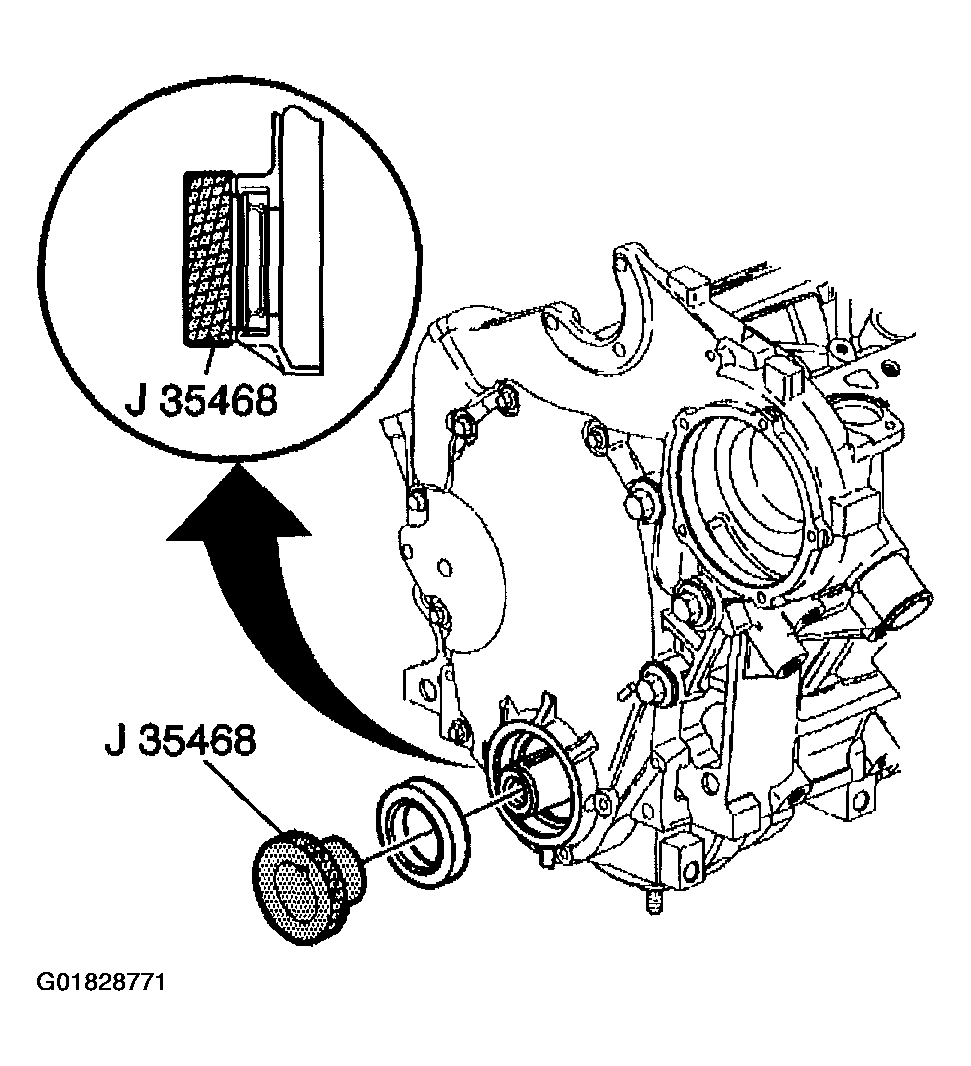

    2. Fig 1: Installing Crankshaft Front Oil Seal
    G01828771Courtesy of GENERAL MOTORS CORP.
  2. Install the crankshaft front oil seal using the J 35468  and a suitable tool.
  3. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
