Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Remove the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  5. Install a utility stand beneath the frame right side rail in order to support the frame/powertrain.
  6. Remove the two frame RIGHT side bolts.
  7. Use the utility stand to lower the frame in order to provide access to the crankshaft balancer.
    NOTE: The inertial weight section of the crankshaft balancer is assembled to the hub with a rubber type material. The correct installation procedures (with the proper tool) must be followed or movement of the inertial weight section of the hub will destroy the tuning of the crankshaft balancer.

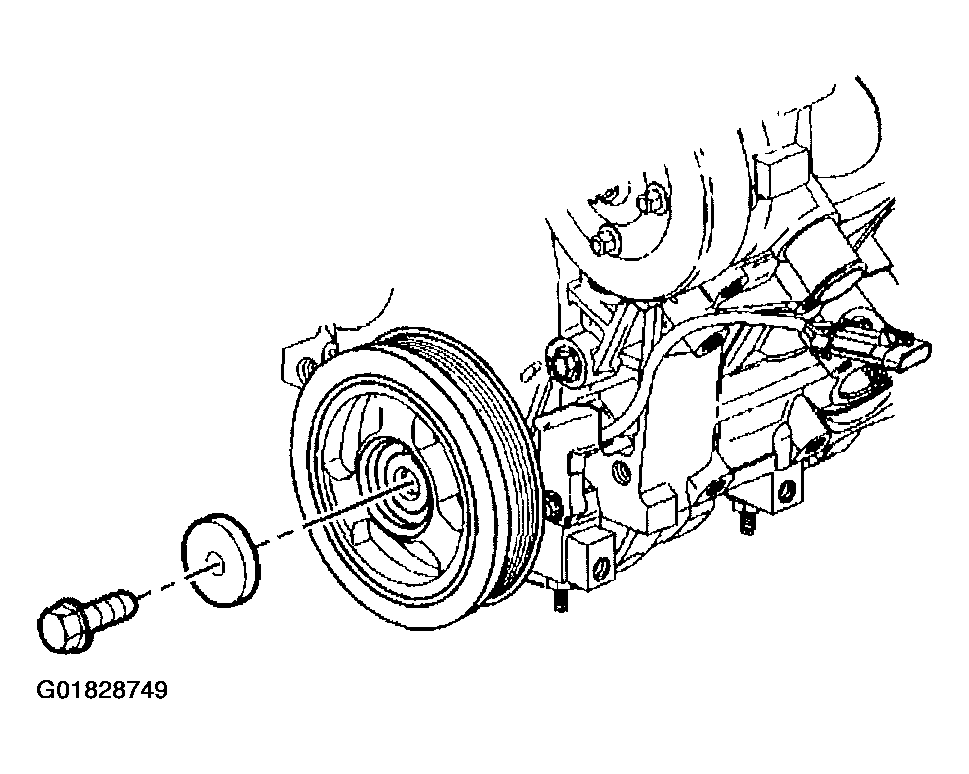

    8. Fig 1: Crankshaft Balancer Retaining Bolt & Washer
    G01828749Courtesy of GENERAL MOTORS CORP.
  8. Remove the crankshaft balancer retaining bolt and washer.
  9. Remove the crankshaft balancer using the J 24420-C  .

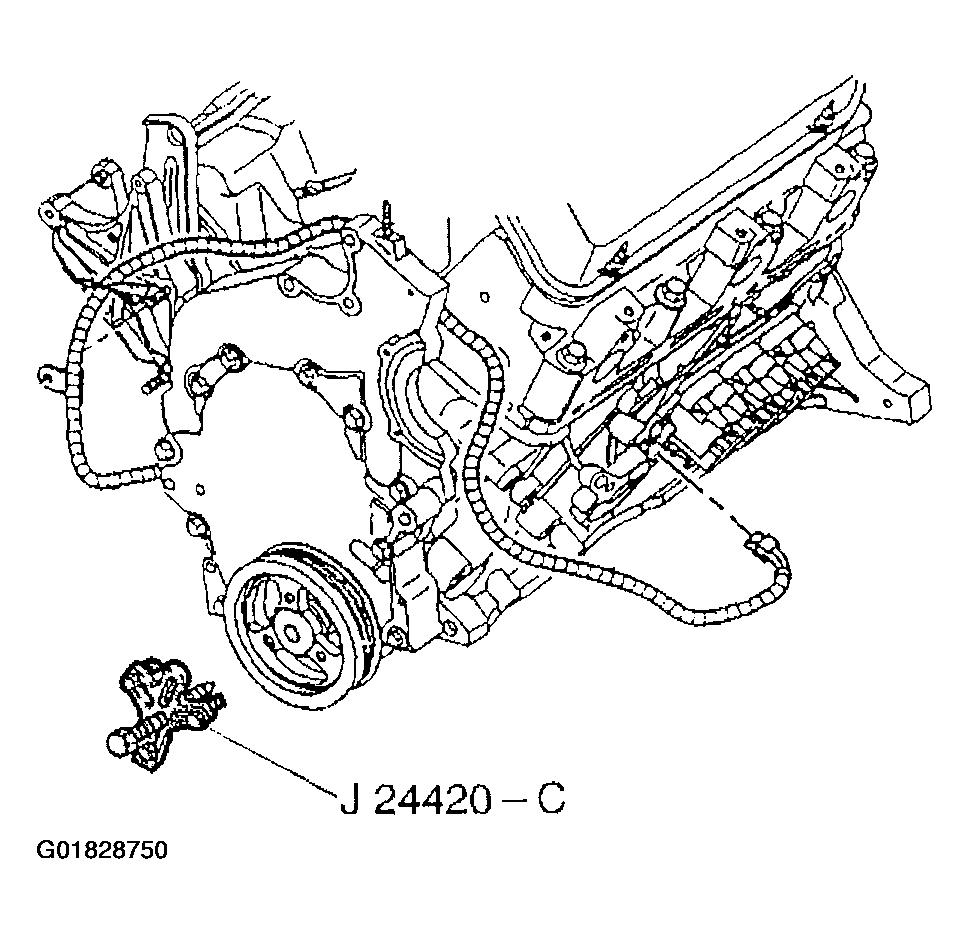

    Fig 2: Removing Crankshaft Balancer
    G01828750Courtesy of GENERAL MOTORS CORP.
