Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealer GM P/N 12345739 or the equivalent to the keyway of the crankshaft balancer.
  2. Place the crankshaft balancer into position over the key in the crankshaft.

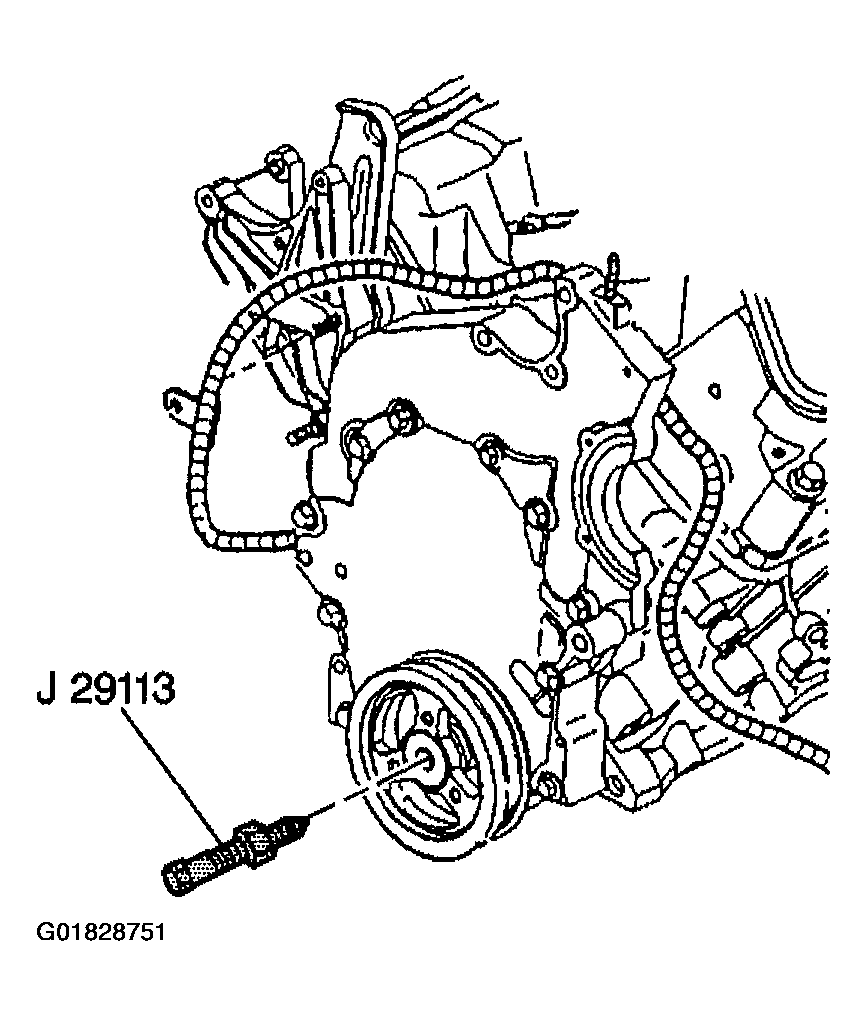

    3. Fig 1: Installing J 29113 Onto Crankshaft
    G01828751Courtesy of GENERAL MOTORS CORP.
  3. Install the J 29113 onto the crankshaft.
  4. Pull the crankshaft balancer into position.
  5. Remove the J 29113  from the crankshaft balancer.
    NOTE: Refer to FASTENER NOTICE .

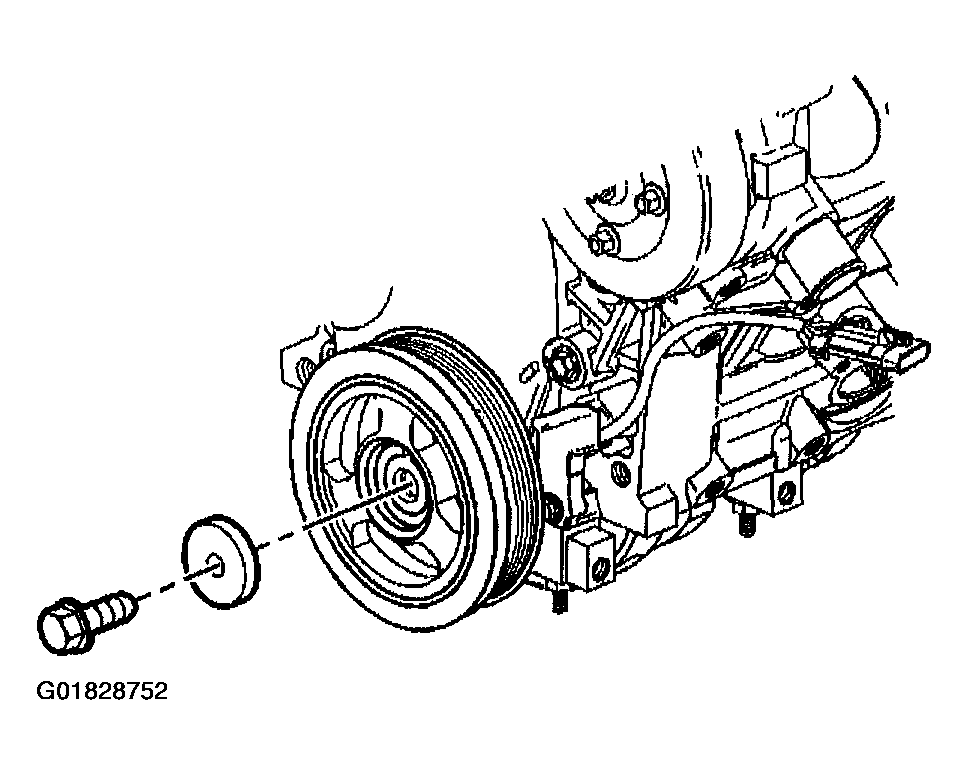

    6. Fig 2: Crankshaft Balancer Retaining Bolt & Washer
    G01828752Courtesy of GENERAL MOTORS CORP.
  6. Install the crankshaft balancer washer and bolt.

    Tighten

    Tighten the crankshaft balancer bolt to 103 N.m (76 lb ft).

  7. Use the utility stand in order to raise the frame/powertrain.
  8. Install NEW frame right side bolts.
  9. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  10. Install the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  11. Lower the vehicle.
  12. Install the drive belt. Refer to Drive Belt Replacement .
