Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement .

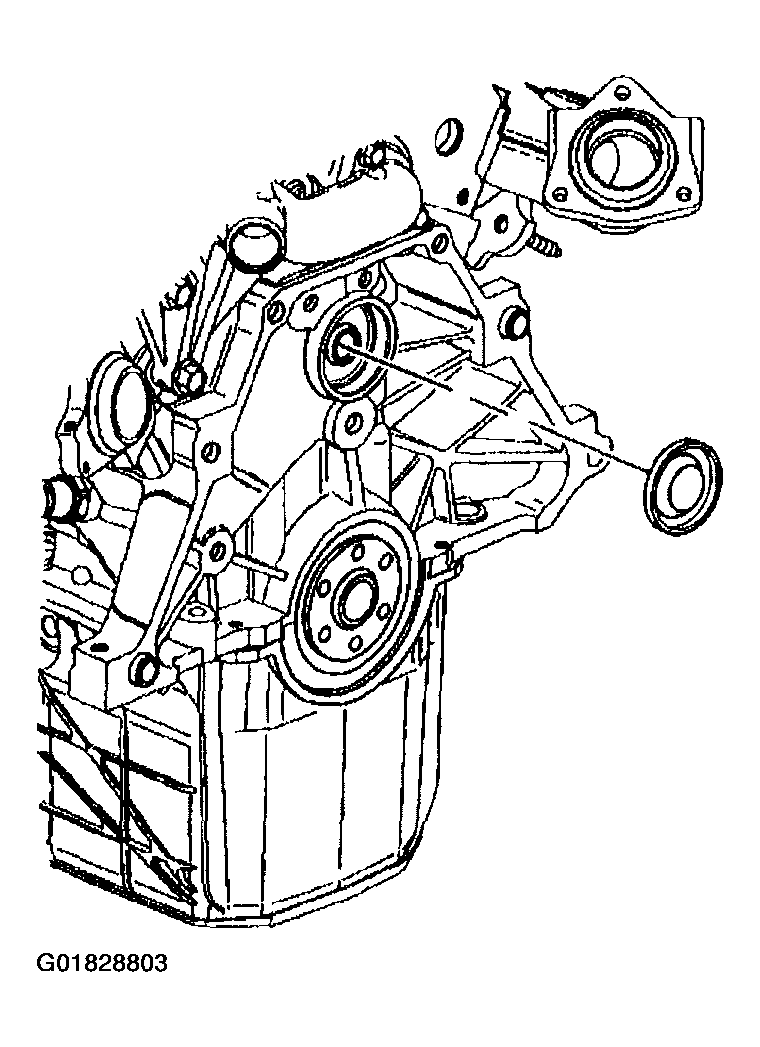

    2. Fig 1: Camshaft Rear Bearing Hole Plug
    G01828803Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft rear bearing hole plug.
