Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the camshaft rear bearing hole plug with sealer. Use sealer GM P/N 12345493 or equivalent.
  2. Use the appropriate tool in order to install the camshaft rear bearing hole plug.

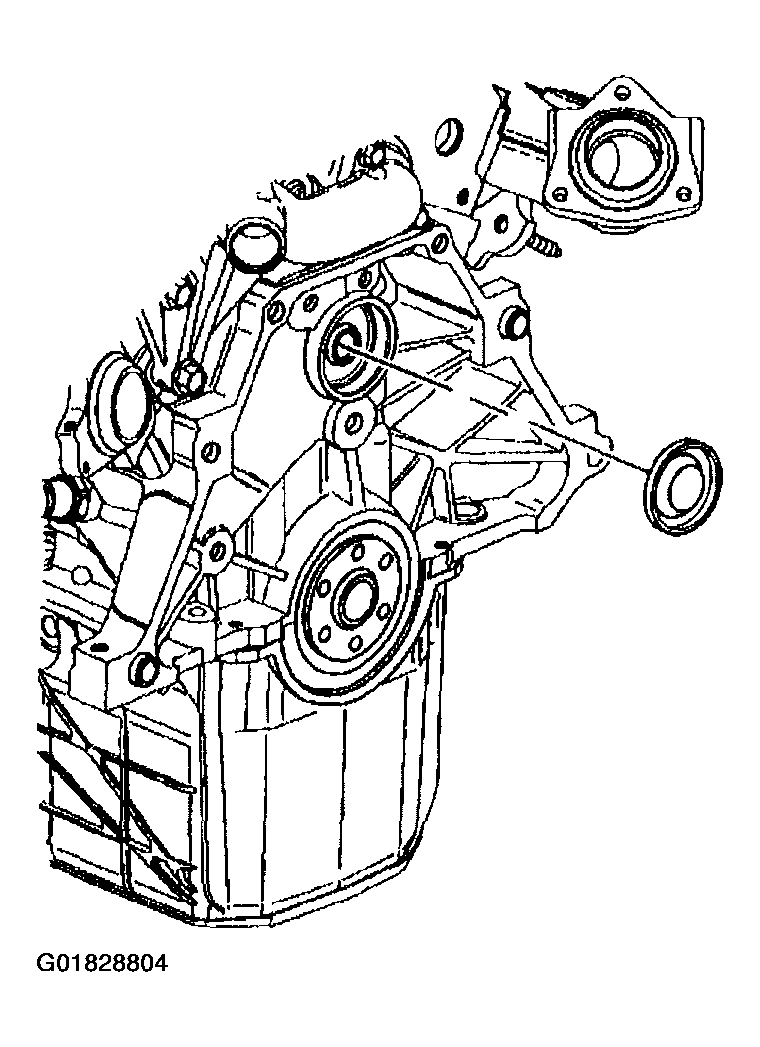

    Fig 1: Camshaft Rear Bearing Hole Plug
    G01828804Courtesy of GENERAL MOTORS CORP.
    3. Fig 2: Camshaft Rear Bearing Plug Specification
    G01828805Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the camshaft rear bearing plug is installed to specifications.
  4. Install the engine flywheel. Refer to Engine Flywheel Replacement .
