Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

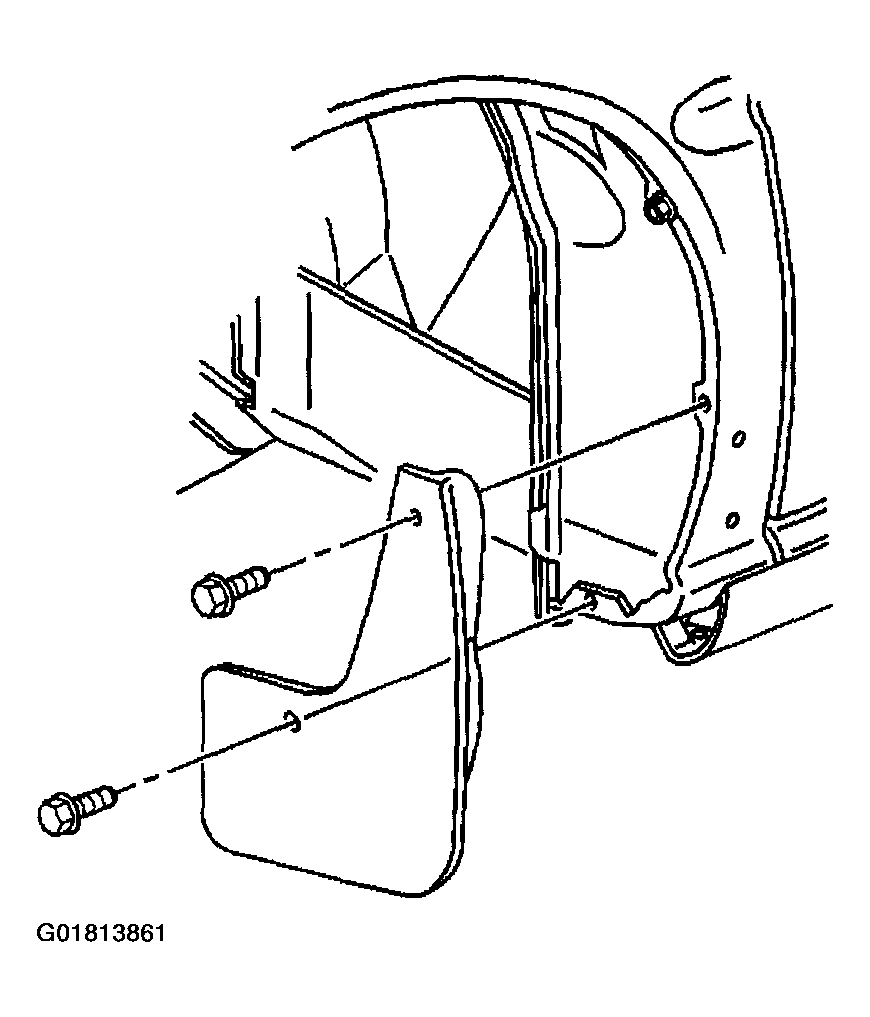

Fig 1: Removing Bolts & Fender Splash Shield
G01813861Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolts from the fender splash shield.
  2. Use J 38778  in order to remove the push-in retainer from the lower fender splash shield at the rocker panel.

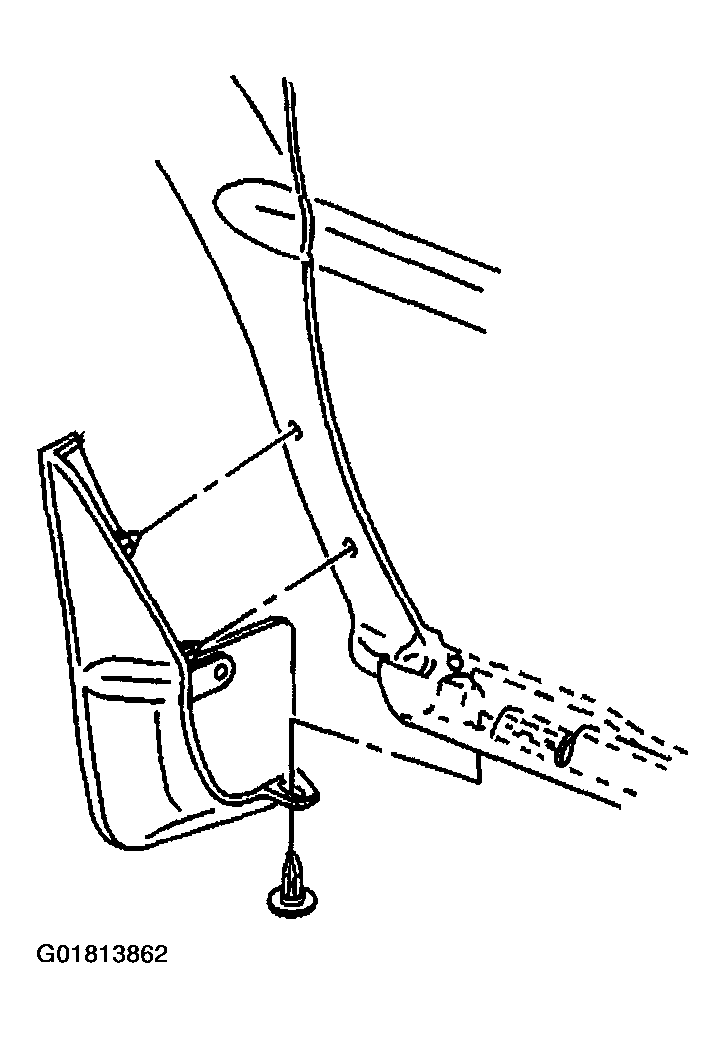

    Fig 2: Removing Fender & Splash Shield
    G01813862Courtesy of GENERAL MOTORS CORP.
  3. Remove the fender splash shield from the fender.
