Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

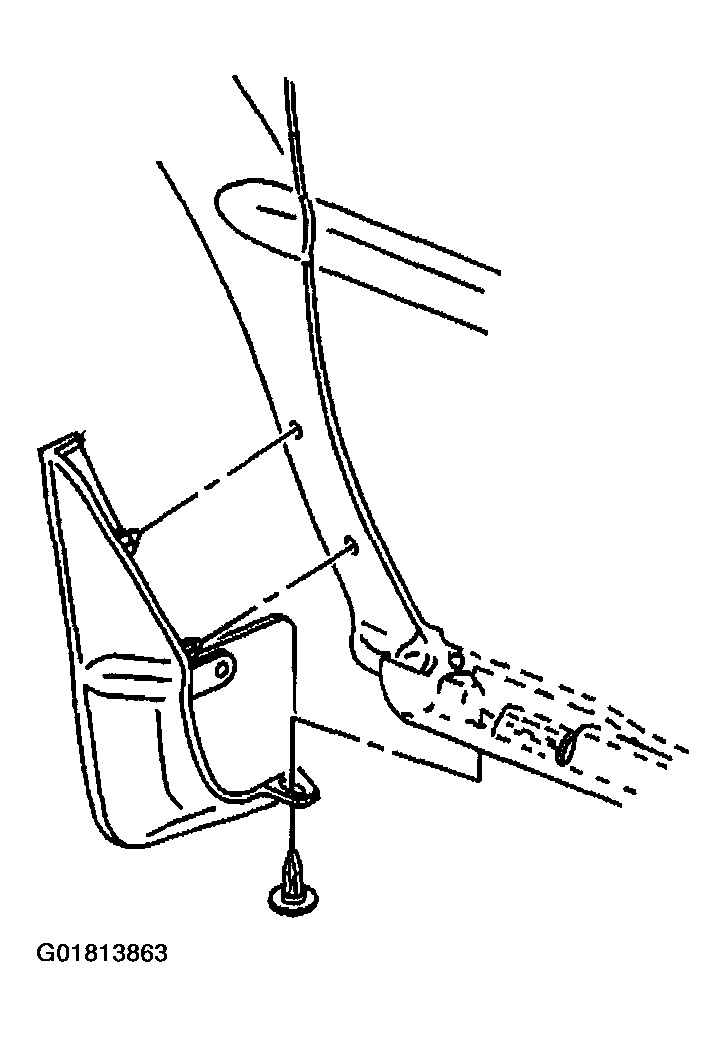

Fig 1: Installing Fender & Splash Shield
G01813863Courtesy of GENERAL MOTORS CORP.
  1. Align the locating pins on the fender splash shield into the holes in the fender.
    NOTE: Refer to FASTENER NOTICE .

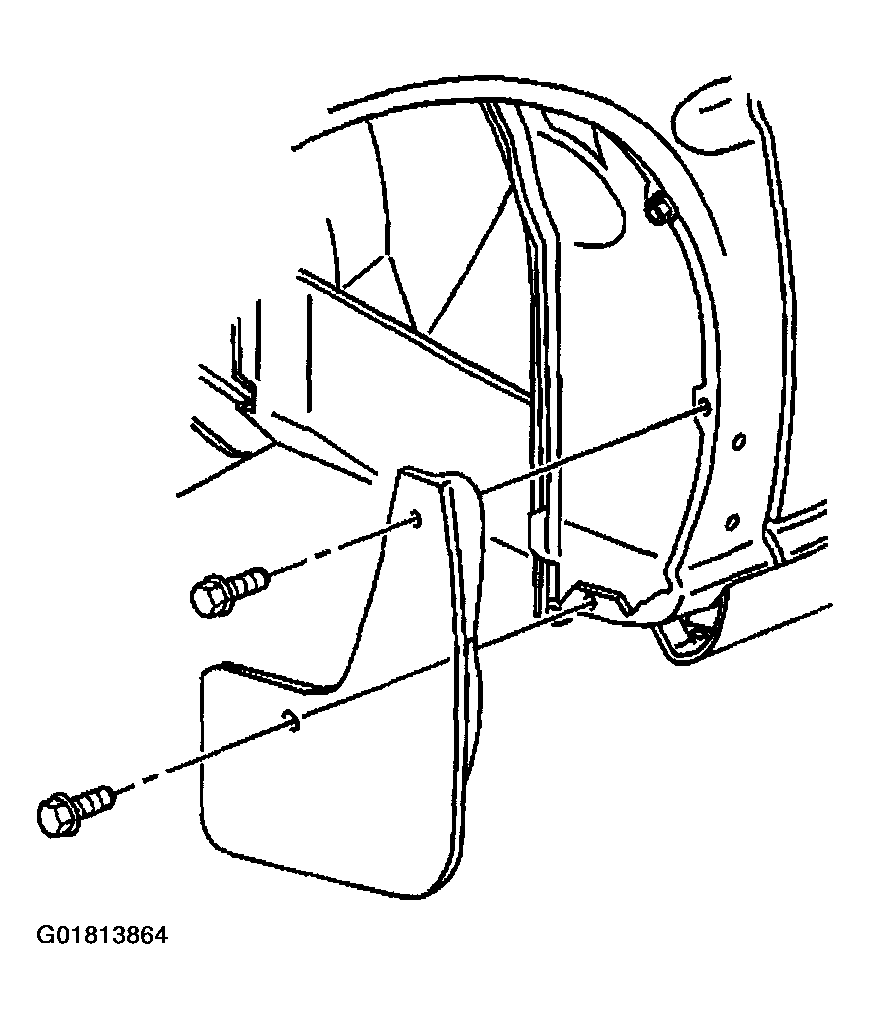

    Fig 2: Installing Bolts & Fender Splash Shield
    G01813864Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the fender splash shield.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  3. Install the push-in retainer to the lower fender splash shield at the rocker panel.
