Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

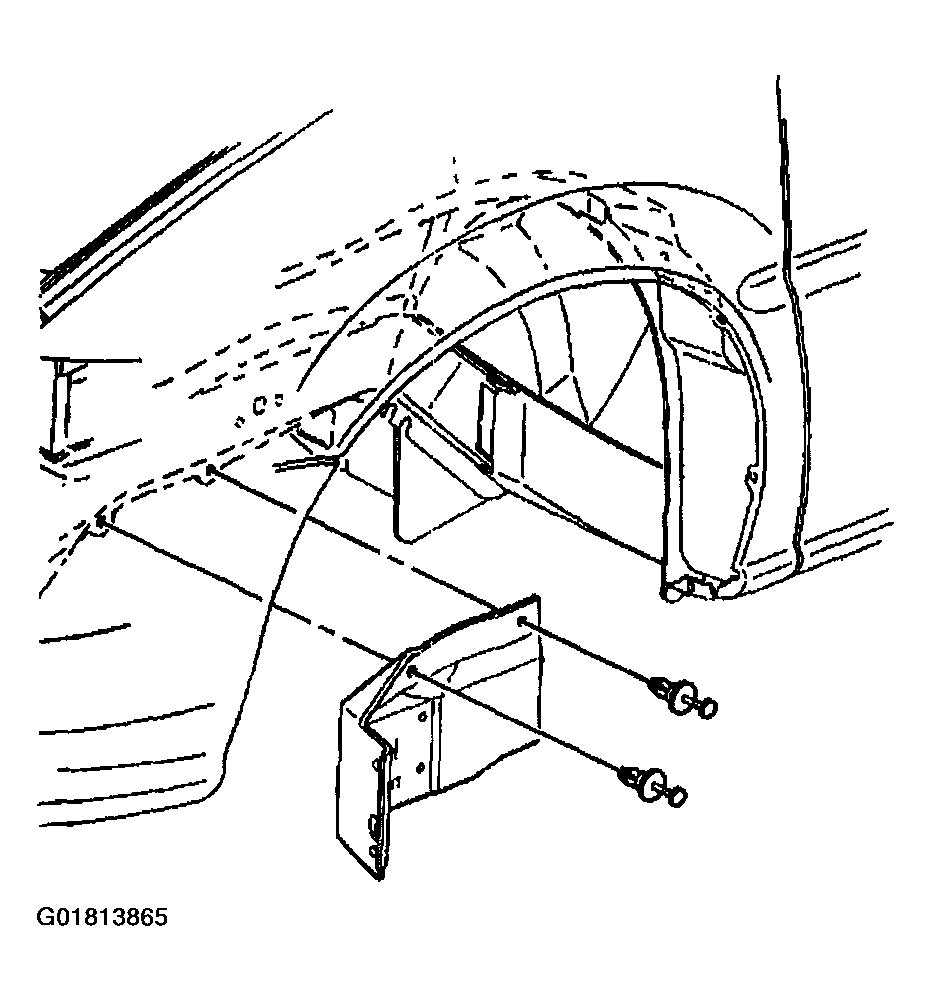

Fig 1: Removing Front Wheel Speed Jumper Harness & Left Engine Splash Shield
G01813865Courtesy of GENERAL MOTORS CORP.
  1. Use J 38778  in order to remove the push-in retainers from the engine compartment side rail.
  2. Use J 38778  in order to remove the push-in retainers from the front fender liner at the engine splash shield.
  3. Remove the front wheel speed jumper harness from the left engine splash shield. Refer to WHEEL SPEED SENSOR REPLACEMENT -- FRONT .
  4. Remove the front wheel speed jumper harness from the right engine splash shield. Refer to WHEEL SPEED SENSOR REPLACEMENT -- FRONT .

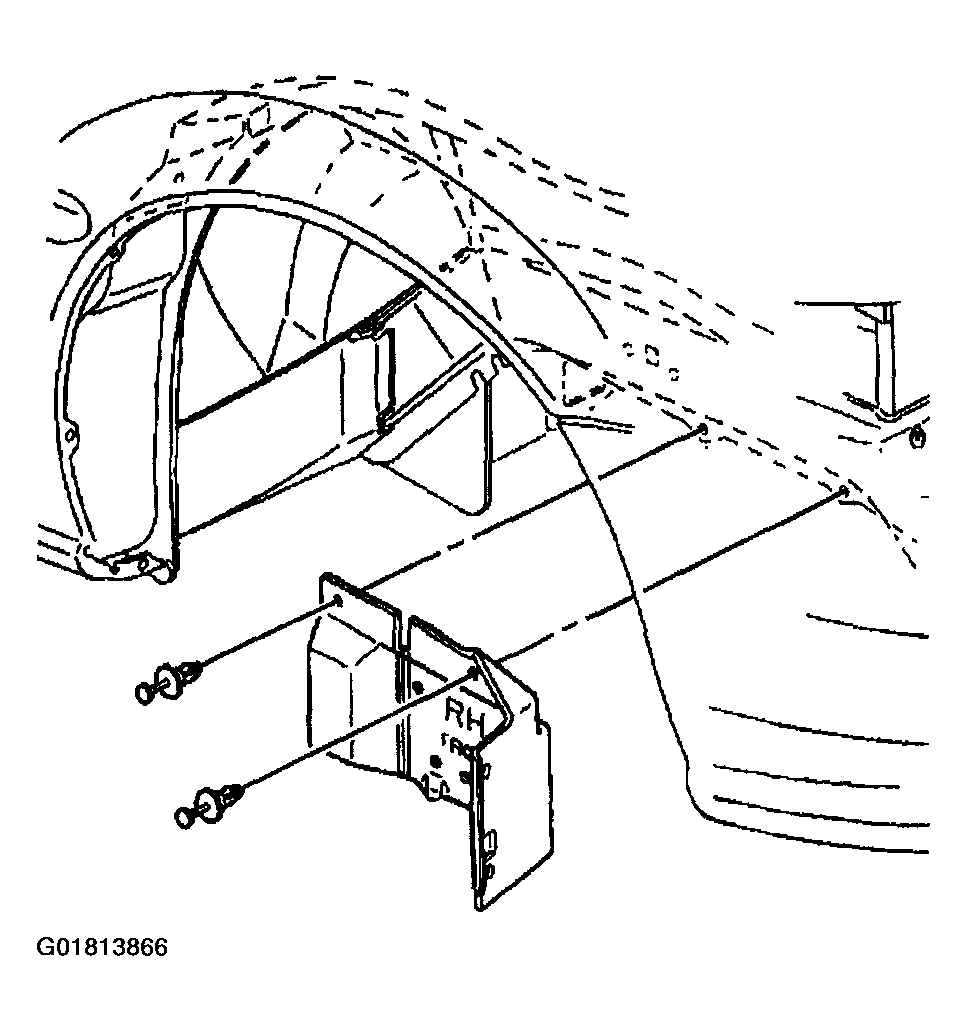

    Fig 2: Removing Front Wheel Speed Jumper Harness & Right Engine Splash Shield
    G01813866Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine splash from the vehicle.
