Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

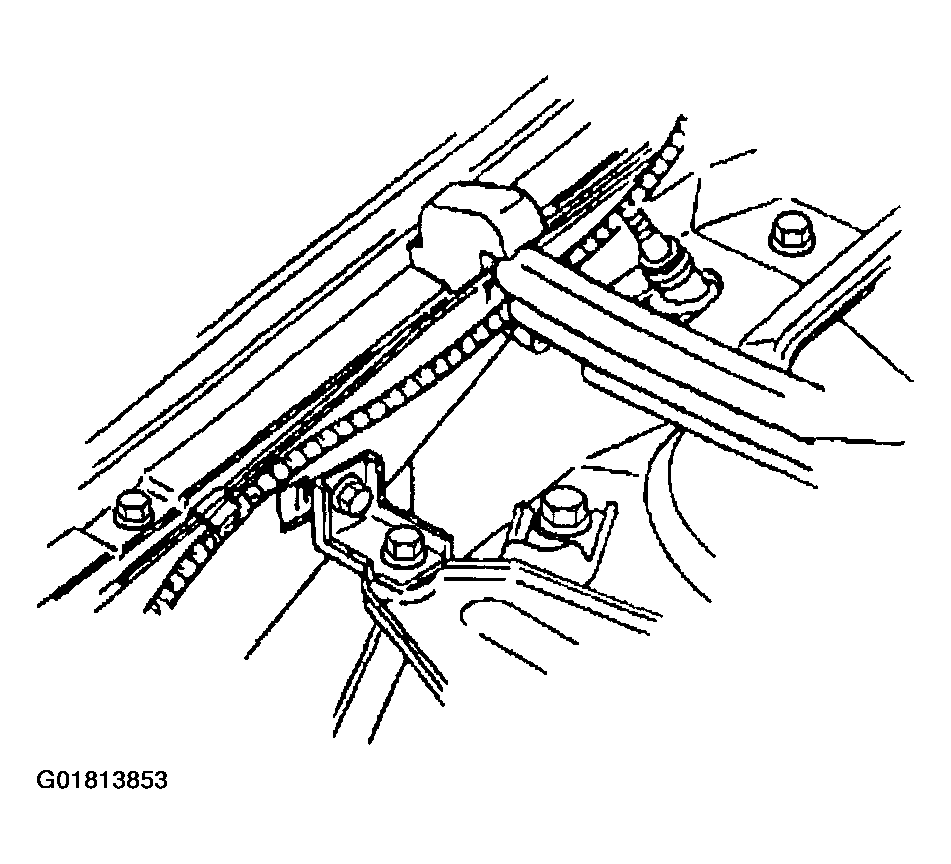

Fig 1: Removing Hood Rear Weatherstrip & Pinchweld Flange
G01813853Courtesy of GENERAL MOTORS CORP.
  1. Open the support the hood.
  2. Remove the hood rear weatherstrip from the pinchweld flange.
  3. Remove the hood rear outer seals from the fenders.

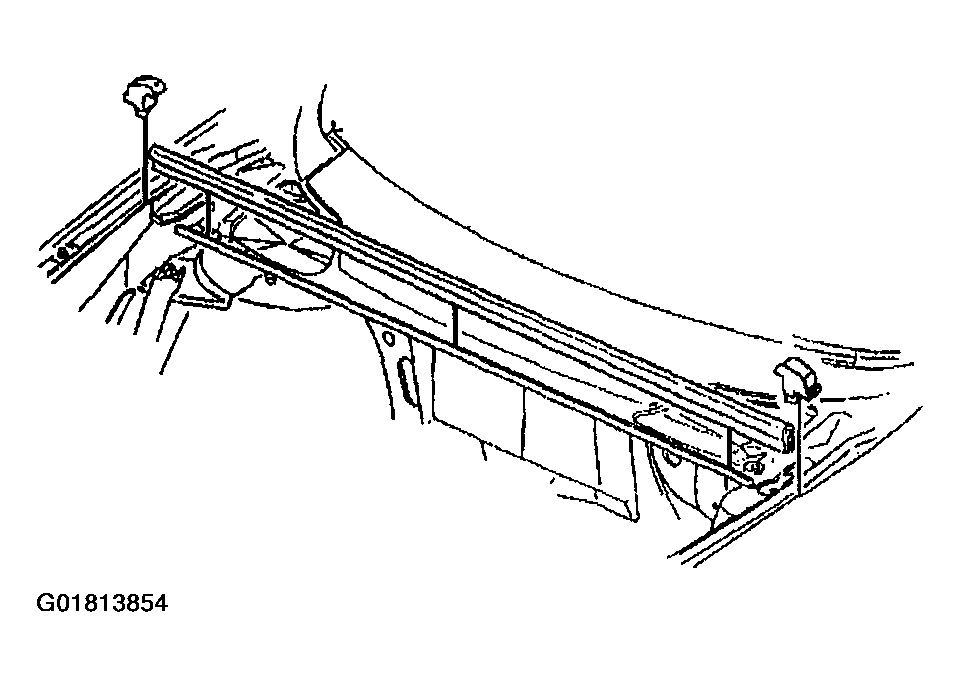

    Fig 2: Removing Hood Rear Outer Seals & Fenders
    G01813854Courtesy of GENERAL MOTORS CORP.
  4. Clean the old adhesive with 3MΩ P/N 8984 adhesive remover or equivalent in the area of the hood outer seals in order to ensure proper adhesion of adhesive.
