Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

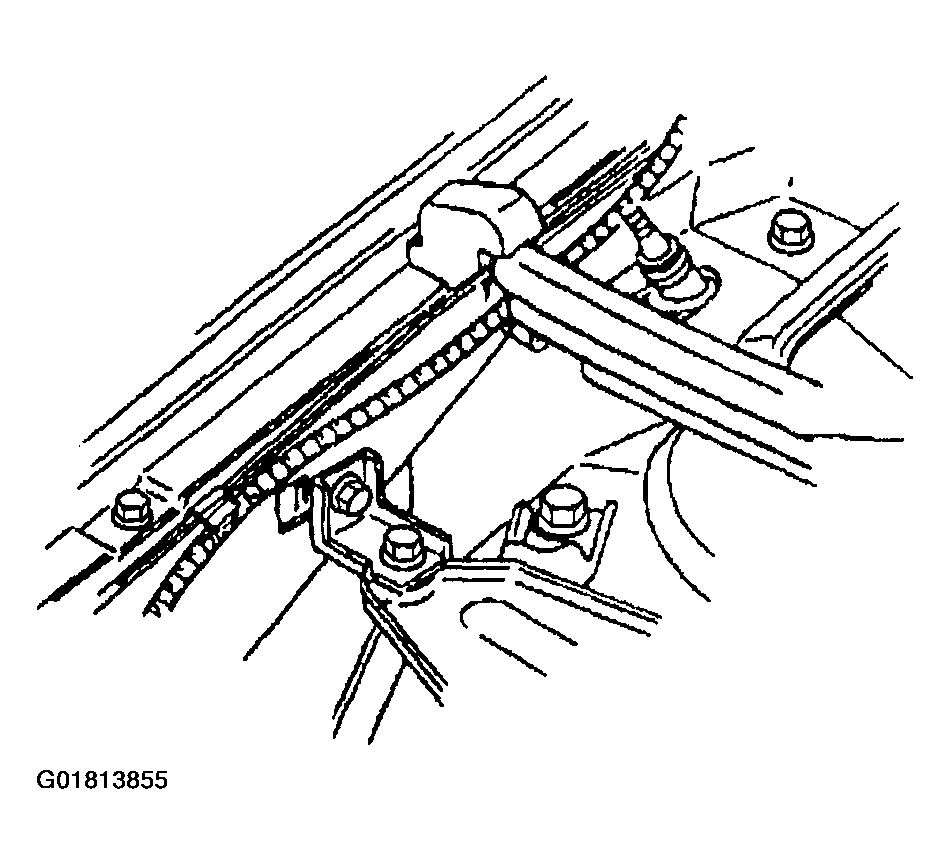

Fig 1: Installing Hood Rear Outer Seals & Fenders
G01813855Courtesy of GENERAL MOTORS CORP.
  1. Apply new adhesive GM P/N 12345096 if you are reusing the old hood rear weather-strips.
  2. Install the hood rear weatherstrip to the flange.

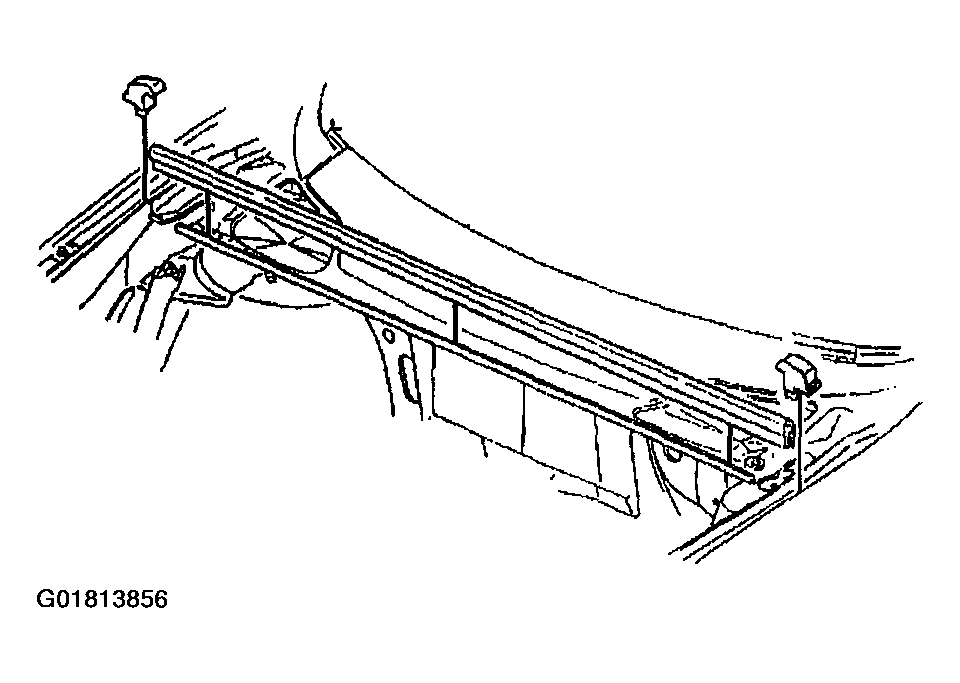

    Fig 2: Installing Hood Rear Weatherstrip & Pinchweld Flange
    G01813856Courtesy of GENERAL MOTORS CORP.
  3. Install the hood rear outer seal to the fenders.
  4. Press into place until fully seated to the fender.
  5. Close the hood.
