Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

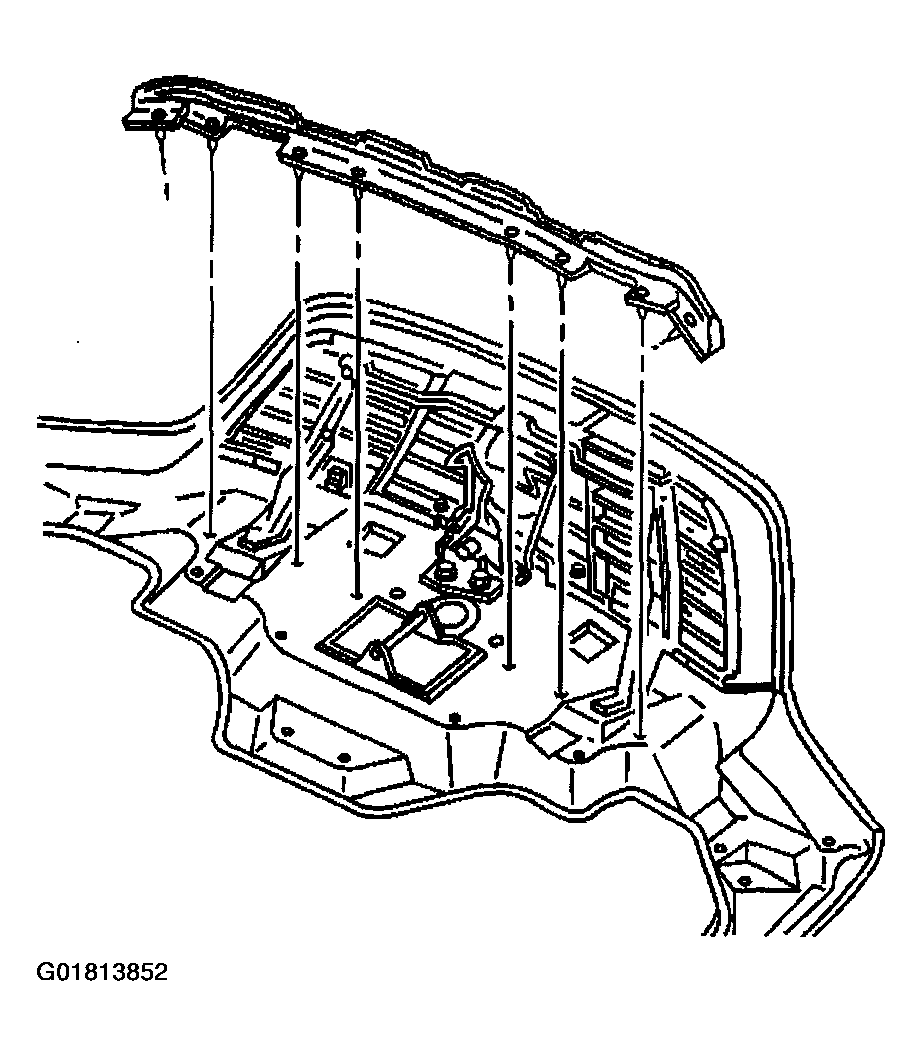

Fig 1: Installing Push-In Retainers & Hood Front Seal
G01813852Courtesy of GENERAL MOTORS CORP.

Important:  Install the grille prior to the hood front seal.

  1. Install the hood front seal to the hood.
  2. Install the push-in retainers to the hood front seal.
  3. Close the hood.
