Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

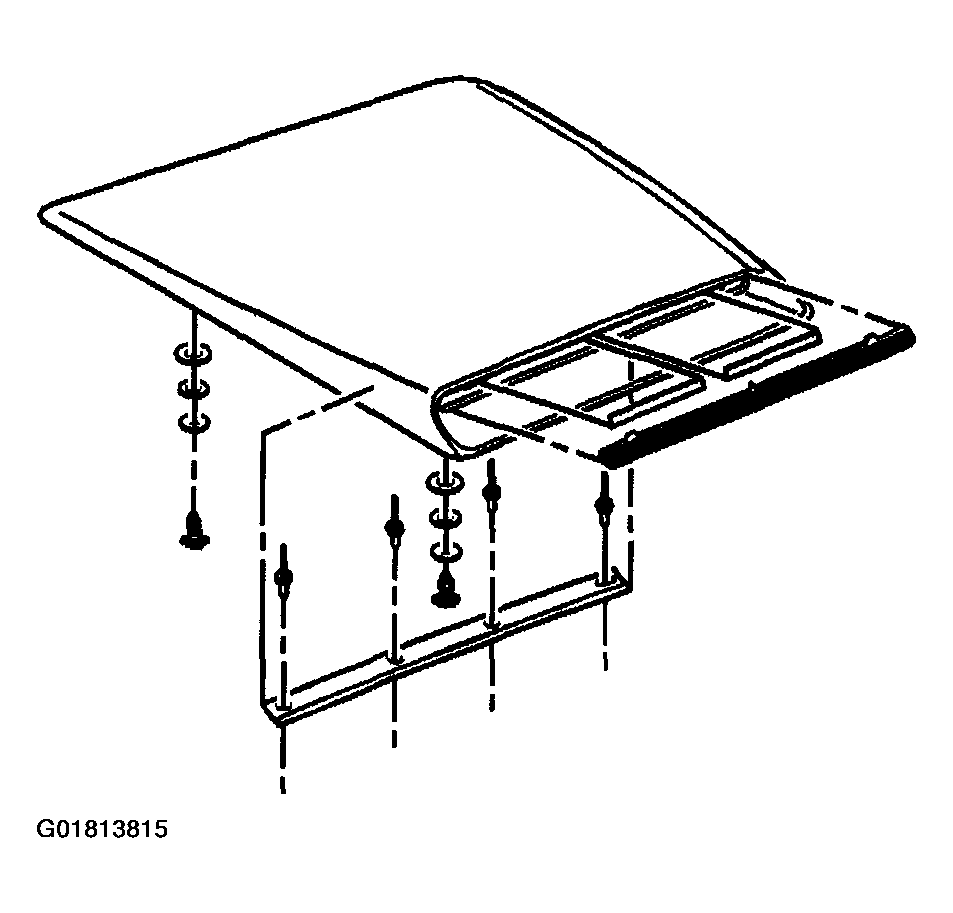

Fig 1: Removing Hood Scoop & Screws
G01813815Courtesy of GENERAL MOTORS CORP.
  1. Open the hood.
  2. Remove the hood insulator. Refer to Hood Insulator Replacement .
  3. Remove the hood scoop screws.
  4. Remove the hood scoop from the hood by lifting up at the rear of the hood scoop and sliding forward to release the hoop scoop from the hood scoop mounting bracket.
  5. if you are replacing the hood scoop mounting bracket.
    • Drill out the hood scoop mounting bracket rivets.
    • Remove the hood scoop mounting bracket from the hood.
