Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

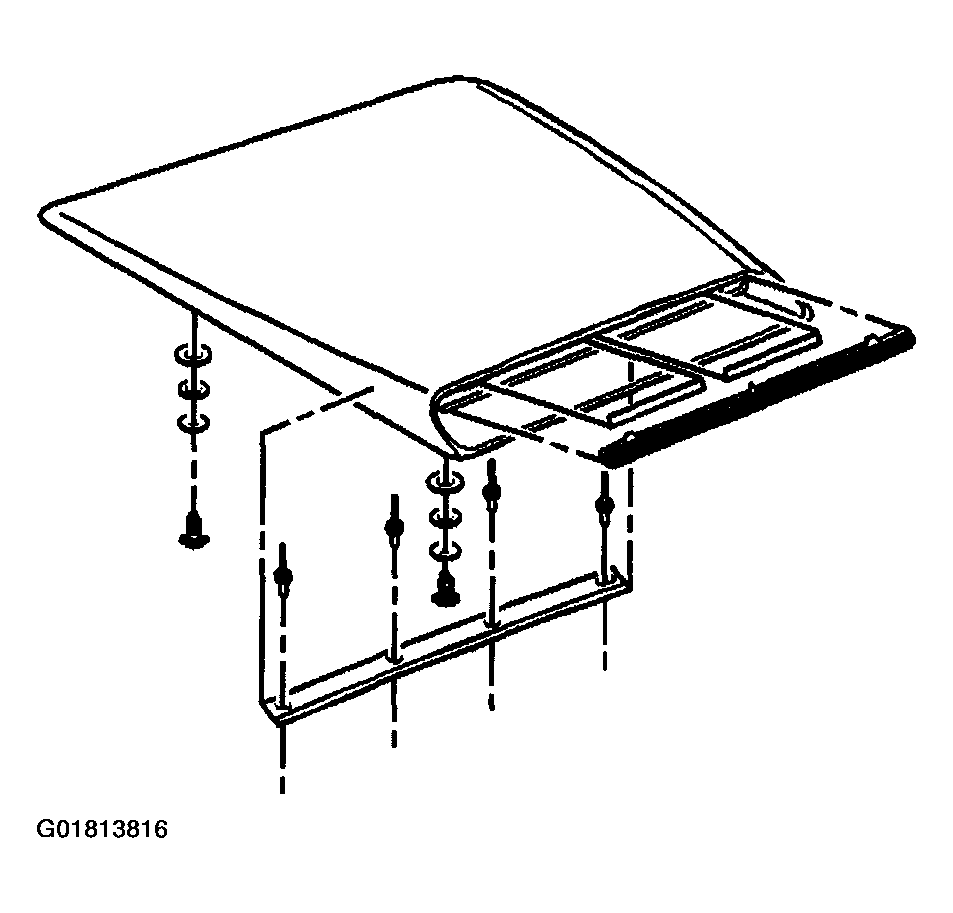

Fig 1: Installing Hood Scoop & Screws
G01813816Courtesy of GENERAL MOTORS CORP.
  1. If you are replacing the hood scoop mounting bracket.
    • Install the hood scoop mounting template to the hood and tape into position.
    • Drill the mounting holes into the hood through the hood scoop mounting template.
    • Remove the hood scoop mounting template and any tape from the hood.
    • Using new rivets, Install the hood scoop mounting bracket to the hood.
  2. Position the hood scoop to the hood.
  3. Open the hood.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the hood scoop screws.

    Tighten

    Tighten the hood scoop screws to 6 N.m (53 lb in).

  5. Install the hood insulator. Refer to Hood Insulator Replacement .
  6. Close the hood.
