Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

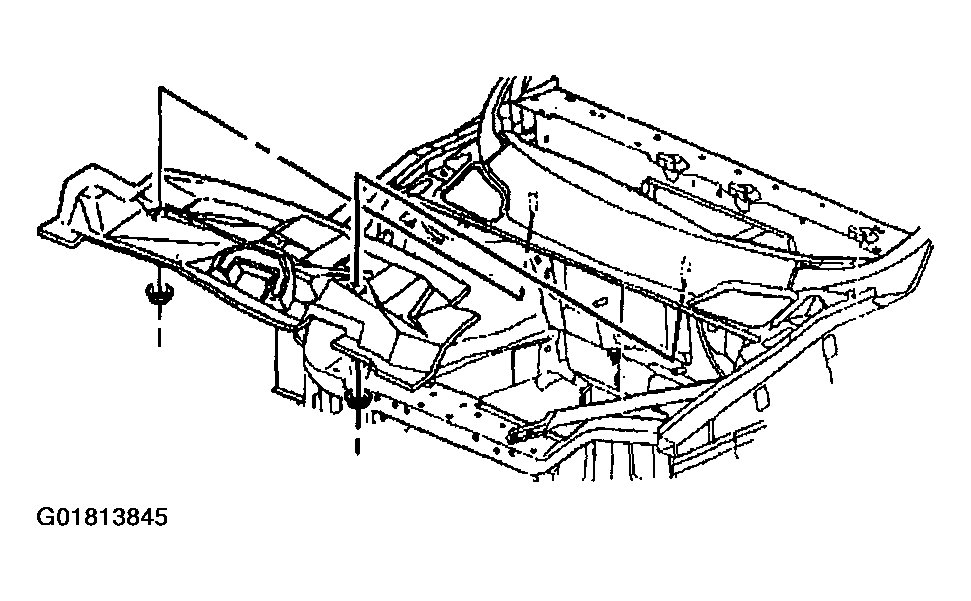

Fig 1: Removing Plenum Chamber Insulator & Retainer
G01813845Courtesy of GENERAL MOTORS CORP.
  1. Open the support the hood.
  2. Use J 38778  to remove the retainers from the underside of the plenum chamber.
  3. Remove the plenum chamber insulator from the underside of the plenum chamber.
